Push Button Cabinet Lock - Black

Push Button Cabinet Lock - Black

SKU: LL009

Regular price $15.00
Regular price Sale price $15.00
Sale Sold out
GST included.

When you're deep into a campervan conversion, the last thing you want is a cabinet door flying open on a gravel road. This push button lock with integrated pull handle gives you secure, keyless access to your drawers and cabinets with one hand. Press the domed button to release, pull the handle to open. It's that straightforward, and it stays shut until you tell it not to.

Benefits

  • Keyless push button release makes opening cabinets fast and easy in a moving campervan conversion
  • Integrated pull handle means you press and pull in one smooth motion, no separate hardware needed
  • 2 point locking rod kit adds dual point security for larger cabinet doors and drawers
  • Fits panels from 15mm to 27mm thick, covering most van cabinetry builds
  • ABS and zinc alloy construction stands up to vibration and daily road use
  • Matte black finish suits dark van interiors and keeps the look clean and consistent

Features

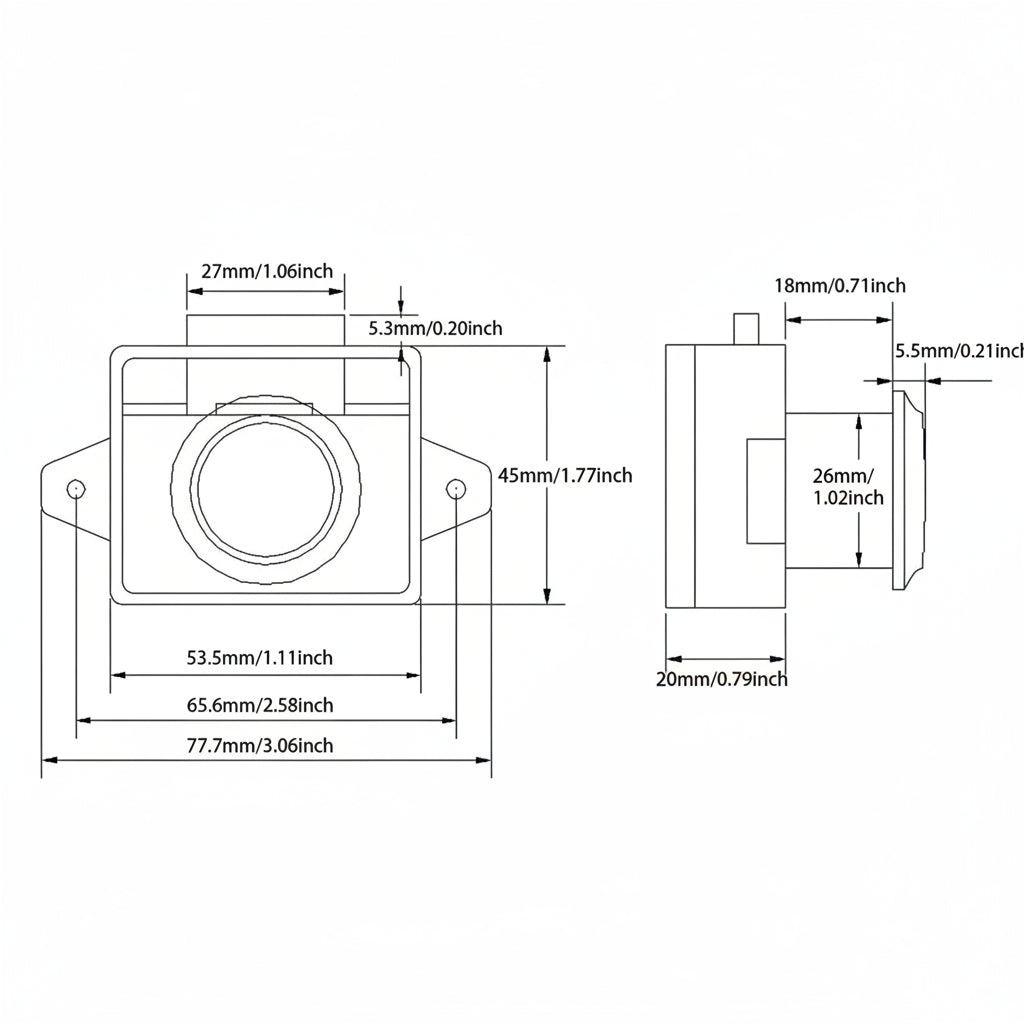

This lock does two jobs in one unit. The domed push button on top releases the latch mechanism when pressed, and the rectangular pull handle on the front face lets you open the door straight away without reaching for a separate knob. The mounting wings on each side secure it firmly to your panel, stopping any wobble or movement over time. What sets this one apart for van builders is the 2 point locking rod kit, which connects to locking rods top and bottom of the door for a much more secure hold than a single point latch. For a campervan conversion where a heavy drawer or tall cabinet door needs to stay shut on corrugated roads, that dual point system makes a noticeable difference. The 26mm cutout size fits standard furniture panel holes, and the keyless operation means no lost keys and no lockouts.

Specifications

  • Available finishes: stainless steel, matte black, brushed brass.
  • Positive locking spring loaded catch mechanism.
  • One finger pull action to release.
  • Installation screws not included, use #8 screws at appropriate length for door thickness.
  • Each latch requires its own catch, installed on the cabinet frame.
  • Recommend 1/8" gap between doors and drawers for handle clearance.
View full details

People are asking

What cabinet thickness is this lock suitable for?

This push button cabinet lock is designed to fit cabinet doors and drawers between 15mm and 27mm thick.

Can this lock be used in a campervan or caravan?

Yes. It is specifically designed for mobile environments such as campervans, caravans, motorhomes, and boats where vibration can cause cabinet doors to open during travel.

Does the lock include installation hardware?

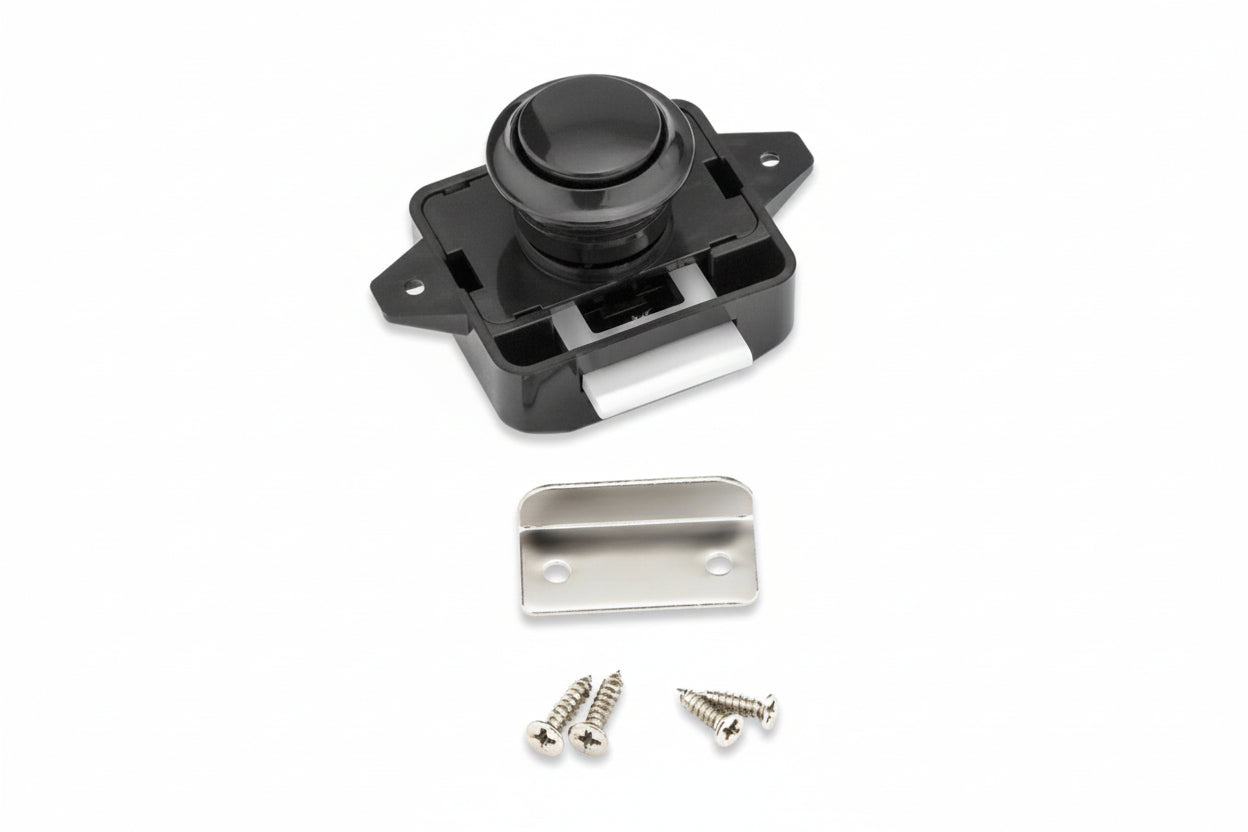

Yes. The lock includes mounting screws and the striker plate required for installation.
