Projecta Intelli-Start DC-DC Battery Charger

Projecta Intelli-Start DC-DC Battery Charger

SKU: EL040

Regular price $675.00
Regular price Sale price $675.00
Sale Sold out
GST included.

Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.

Features
Simultaneous dual battery charging from both solar and alternator inputs.
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80 degrees centigrade.
Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel.
Combines your solar and vehicles power to deliver a comprehensive multi-stage charge ensuring longer battery life and preformance.

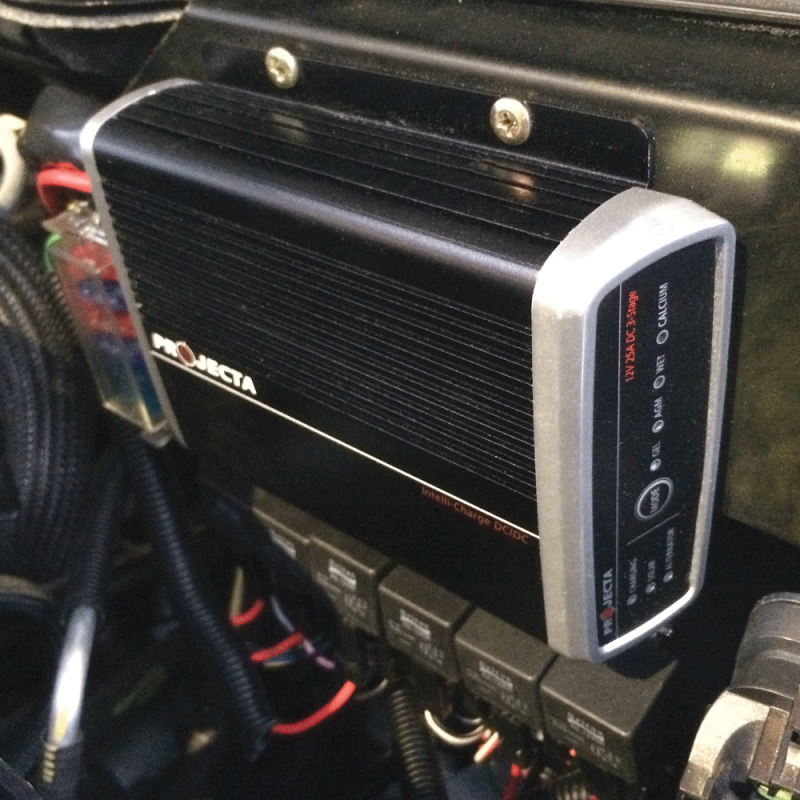

A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.

Specifications

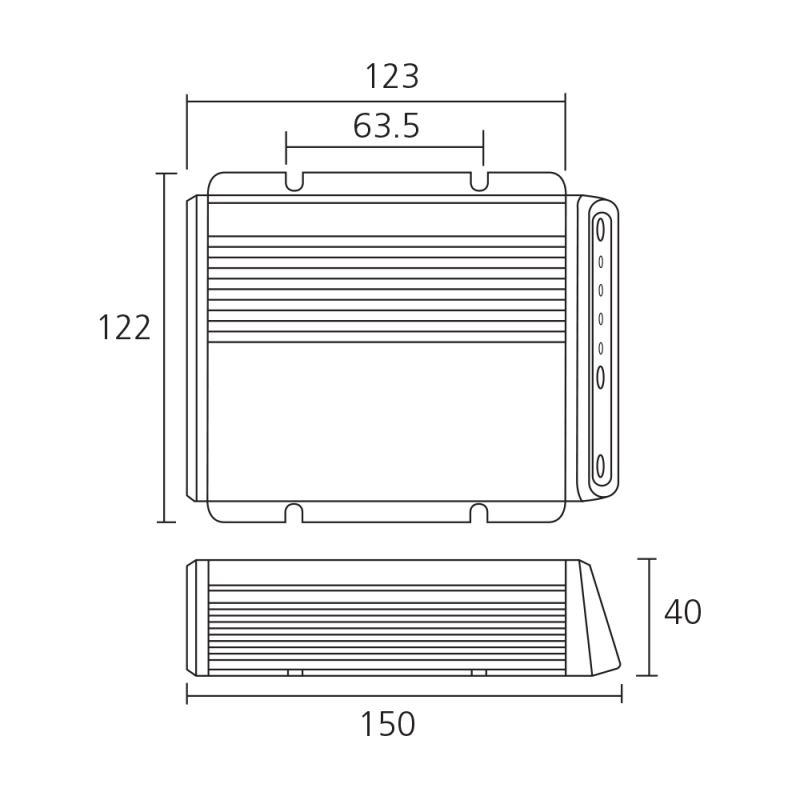

Size 149 x 122 x 42 mm
Weight 800g

Alternator Input Voltage 9-32Vdc
Maximum Solar Input Voltage 23Vdc
Maximum Input Current 40A
Input Current (No Load) 20mA
Back Drain on Auxiliary Battery 9.5 – 10.5mA
External LED Output – Constant Current 4 mA
Output Current Input 9–11Vdc: 20A
Input 11V-32dc: 25A
Input Fuse Rating 50A (Not supplied)
Output Fuse Rating 50A (Not supplied)
Maximum Output Power 385W
Solar Input Turn On Voltage 9V
Operating Temperature (Derated from 55o
C) -10 to +80o
C (Ambient Temperature)
