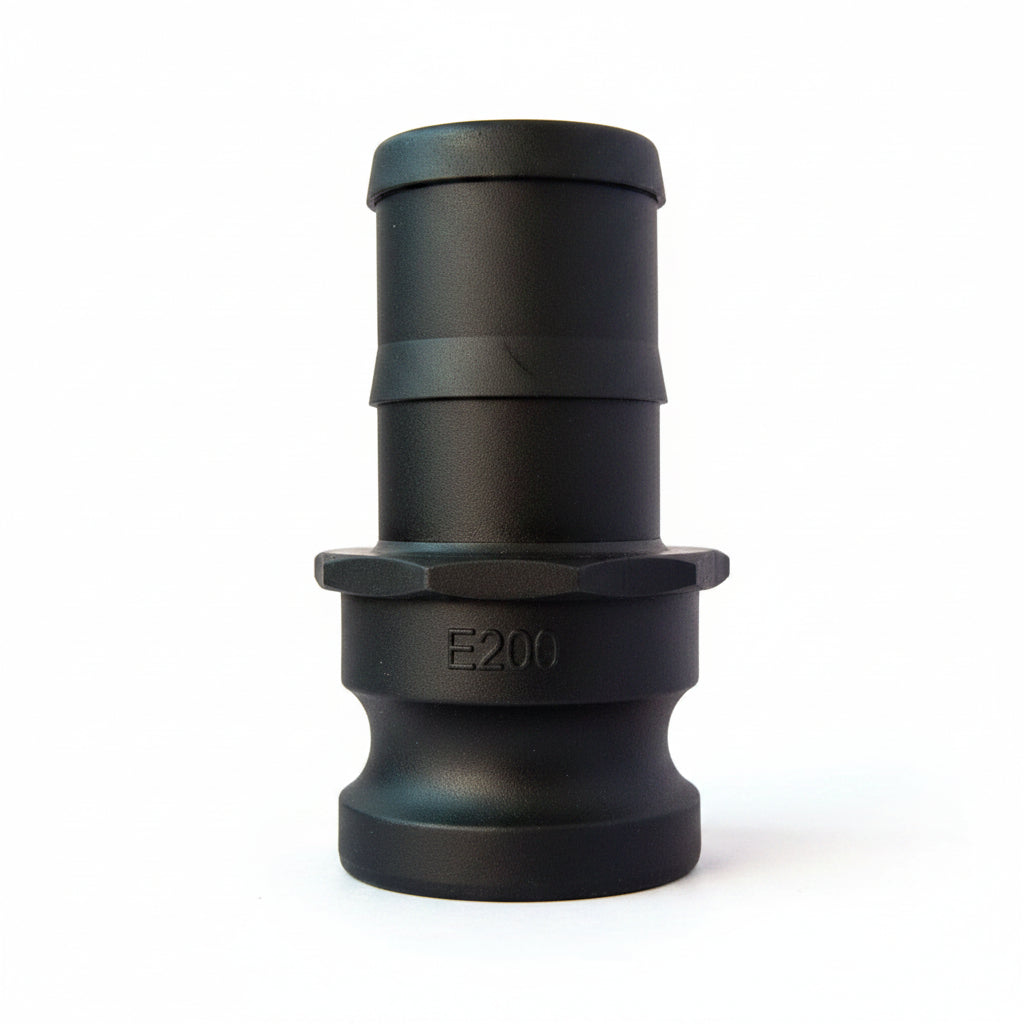

• Camlock Type E nylon 25mm female hose tail camlock fitting for campervan caravan and water transfer systems

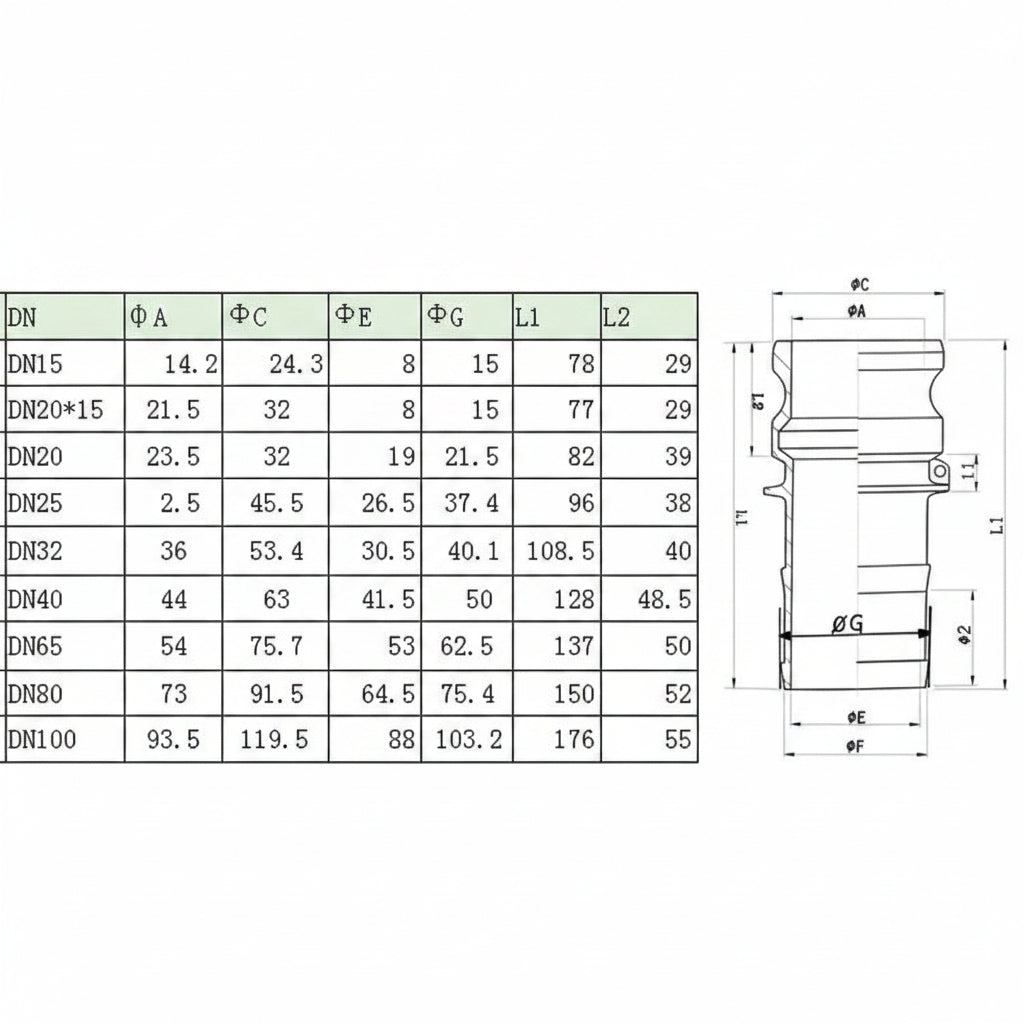

  • Camlock Type E nylon fitting dimensions chart showing DN sizes, diameters and overall measurements for hose tail camlock fittings
1 2

25mm Camlock Type E – Hose Tail x Male Adaptor

25mm Camlock Type E – Hose Tail x Male Adaptor

SKU: PL036

$7.00
$7.00
Sale Sold out
GST included.

A durable nylon Camlock Type E fitting designed to connect a 25mm (1") hose directly to a camlock coupling system. Ideal for water transfer, self-containment systems, campervans, caravans, motorhomes, boats, and general fluid handling applications.

Benefits:

• Quick-connect camlock design for fast hose connections
• Suits 25mm (1") hose applications
• Lightweight and corrosion-resistant nylon construction
• Suitable for water transfer and waste systems
• 20mm internal camlock connection size
• Used on our own campervan and motorhome self-containment builds

Specifications

• Material: Reinforced Nylon
• Type: Camlock Type E
• Hose Size: 25mm (1")
• Camlock Size: 20mm Internal (E200)
• Colour: Black
• Connection Type: Hose Tail to Camlock Plug
• Corrosion Resistant: Yes
• Suitable For: Water and non-pressurised fluid transfer systems
• Weight: Approx. 0.03kg
• Package Includes: 1 x Camlock Type E Nylon Hose Tail Fitting

View full details

People are asking

What hose size does this fitting suit?

This fitting is designed for 25mm (1") internal diameter hose.

Is this compatible with other camlock fittings?

Yes, it is designed to connect with matching camlock couplers of the same size.

Can this be used for campervan self-containment systems?

Yes, this is commonly used in campervan, caravan, and motorhome water and waste management systems.
