1" Male Tank Fitting – White
1" Male Tank Fitting – White
SKU: PL057
Sorting your plumbing is a key step in any campervan conversion, and a solid thru hull fitting keeps everything flowing where it should. This compact, durable fitting is built for clean water or waste outlets, giving you a leak-free connection through your van floor or wall. Simple, reliable, and made to handle life on the road.
Benefits:
• Keeps your campervan conversion plumbing sealed and leak free
• Handles fresh or grey water with confidence on the road
• Tough plastic build that resists corrosion and wear
• Clean, low-profile install that won’t snag or get in the way
• Easy to fit for DIY campervan conversion builds
Features:
When you are fitting out your van, every penetration point matters. This thru hull fitting is designed to create a secure, watertight seal where hoses pass through your van floor or wall. Made from durable marine-grade plastic, it stands up to moisture, temperature changes, and regular use without cracking or degrading. The smooth internal bore keeps water flowing freely, reducing the chance of blockages in your system. Whether you are draining a sink after a surf or setting up a full off-grid water system, this fitting gives you a clean exit point with minimal fuss. It is compact enough to fit tight spaces, yet strong enough to stay reliable over long trips and rough roads.
Add it to your build and get your plumbing sorted the right way. If you are unsure about sizing, flick us a message and we will help you out.

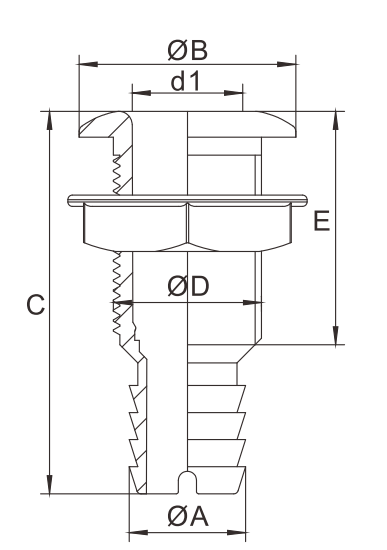

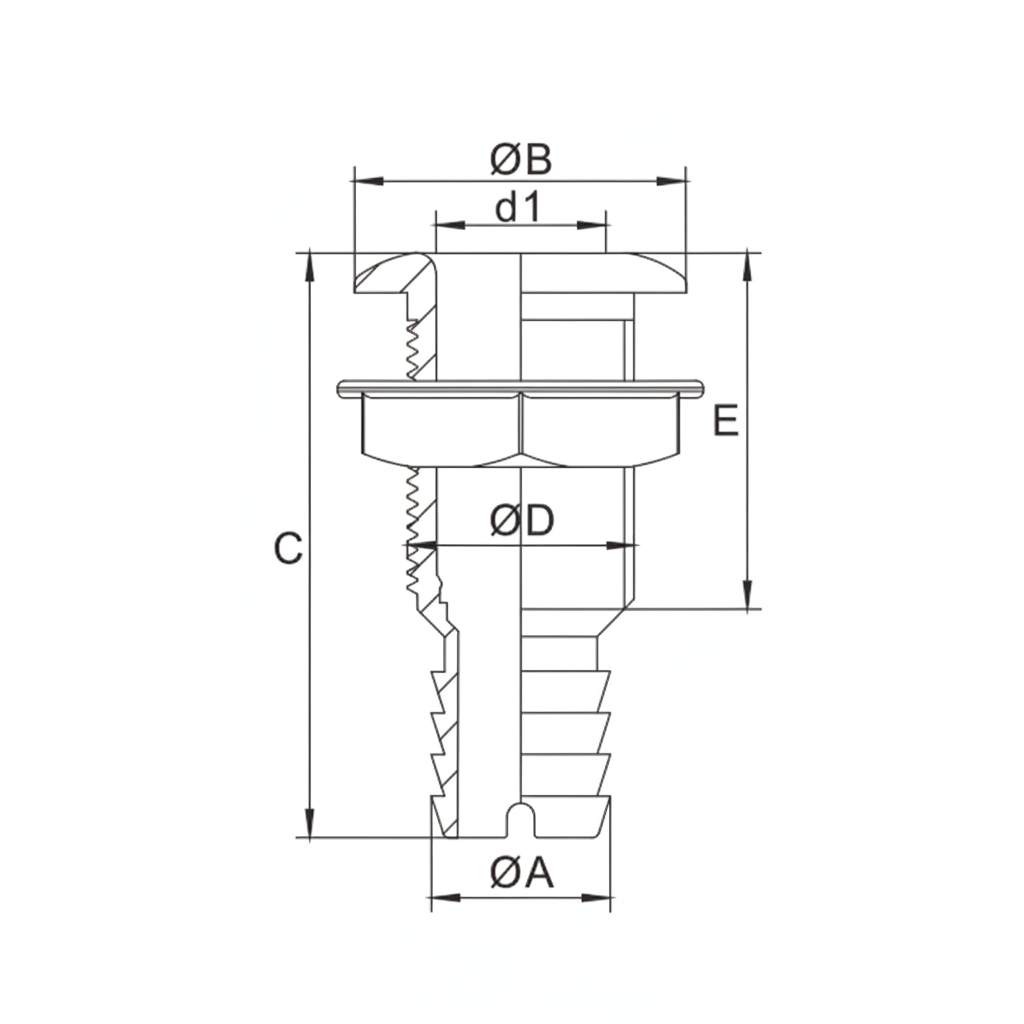

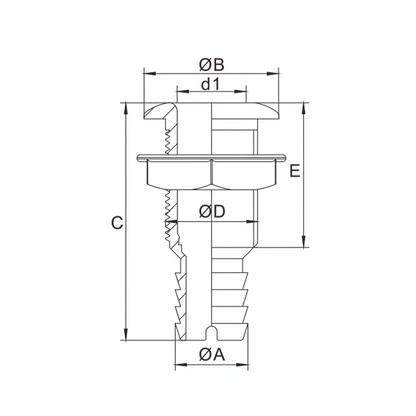

| Model | Size inch | A (mm) | B(mm) | C(mm) | D (mm) |
| SFTH1-1000-01 | 1” | 25.8 | 48 | 85 | 32.8 |
| E (mm) | d1(mm) | Material | Color |
| 52 | 24.5 | PP+GF | White |
