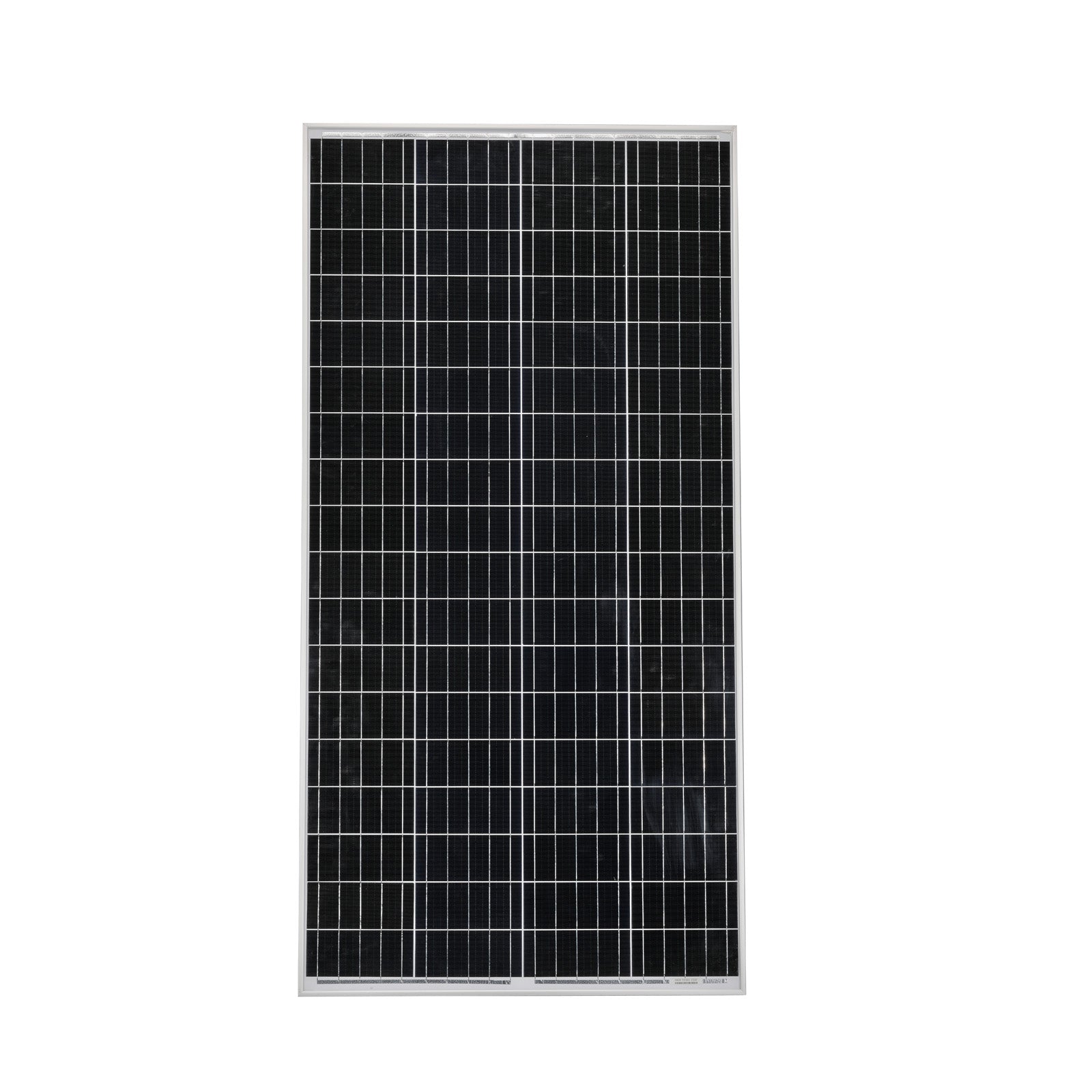

Projecta 12V 170W FIXED SOLAR PANEL WITH MC4 CONNECTORS

Projecta 12V 170W FIXED SOLAR PANEL WITH MC4 CONNECTORS

SKU: PRO103

$465.00
$465.00
Sale Sold out
GST included.

Made for permanent mounting these panels are ideal for caravans, motor homes, house boats, remote holiday shacks and farming applications where power is required to charge battery banks servicing multiple or larger appliances. COMPACT AND POWERFUL: Monocrystalline solar panels are manufactured from a solar cell that is cast from silicon. HEAVY DUTY FRAME: Corrosion resistant frames are constructed to withstand wind speeds in excess of 130 km/h in typical ground mounted applications. TEMPERED LOW IRON GLASS: Enhances impact resistance and light transmission, generating more electricity by minimising light reflection. Open Circuit: 21V Short Circuit Current: 10.63A Peak Power Voltage: 17.5V Peak Power Current: 9.71A

View full details

People are asking

How much solar do I need for my campervan?

A typical weekend setup with a compressor fridge, lights and device charging runs well on 170-200W, while full-time off-grid living usually calls for 300W or more. Work out your daily amp-hour usage and size the array to replace it with New Zealand's average sun hours in mind.

Do I need a solar controller?

Yes - panels should never be connected directly to a battery. An MPPT controller is recommended as it extracts noticeably more power than a PWM unit, particularly in cooler weather and low light.

How do I mount a fixed solar panel on my van roof?

Fixed glass panels are typically mounted on aluminium brackets bonded and/or screwed to the roof, with a quality adhesive sealant on every fixing and cable entry. Run the cabling through a waterproof gland to your solar controller.
