Projecta PM235C Intelli-RV GEN II PWM Charger

Projecta PM235C Intelli-RV GEN II PWM Charger

SKU: PRO052

$1,100.00
$1,100.00
Sale Sold out
GST included.

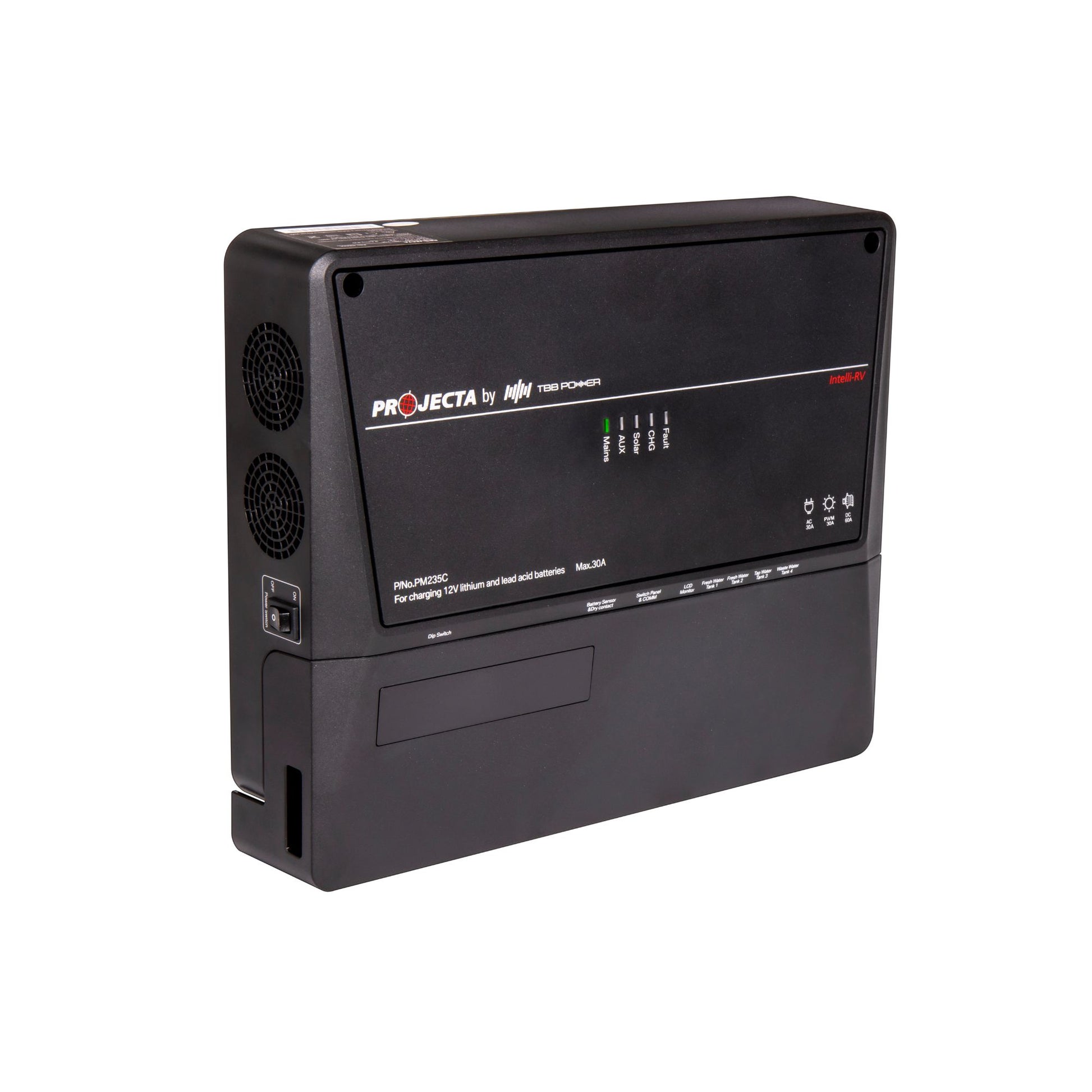

Projecta PM235C is a compact 12V power management unit for campervan conversion builds.
It handles battery charging, solar input and fused outputs from one tidy low profile unit.

Key Points:

  • 30A smart charging keeps your house battery topped up from mains or solar
  • Built in PWM solar controller reduces extra gear in tight van installs
  • 15 fused outputs make wiring lights, fans and fridge circuits cleaner
  • Low voltage protection helps stop flat batteries when parked up
  • Dimensions: 338.9 (L) x 252.25 (W) x 76.3 (H)mm

Specs:
Brand Projecta
Model PM235C
System voltage 12V
AC charging 30A
Total supply 35A
Solar controller PWM
Solar charging 30A
Solar max input 30VDC
Fused outputs 15
Starter battery float charge up to 3A
Battery types Lead acid and LiFePO4
Dimensions 338.9 x 252.25 x 76.3mm
Barcode 9315219012678

View full details

People are asking

What is the difference between the PM100 and PM335C?

The PM335C is the Gen II MPPT version with a built-in 30A MPPT solar controller, offering more efficient solar charging than the PM100. It is better suited to builds with larger solar arrays (100W+) where maximising solar harvest matters. The PM100 is a simpler PWM-based system suited to smaller or basic setups.

What solar panel size suits the PM335C?

The PM335C has a 30A MPPT solar input, which suits solar panels up to around 400W on a 12V system. A single 200W panel is a common and effective pairing for a standard campervan build running a fridge, lights, and USB charging.

Does the PM335C charge from the vehicle alternator?

Yes. The PM335C includes a built-in DC-DC charger that takes power from the vehicle's starting battery via the alternator and charges your leisure battery at the correct voltage. This protects your vehicle battery from being drained and works with modern smart alternators.
