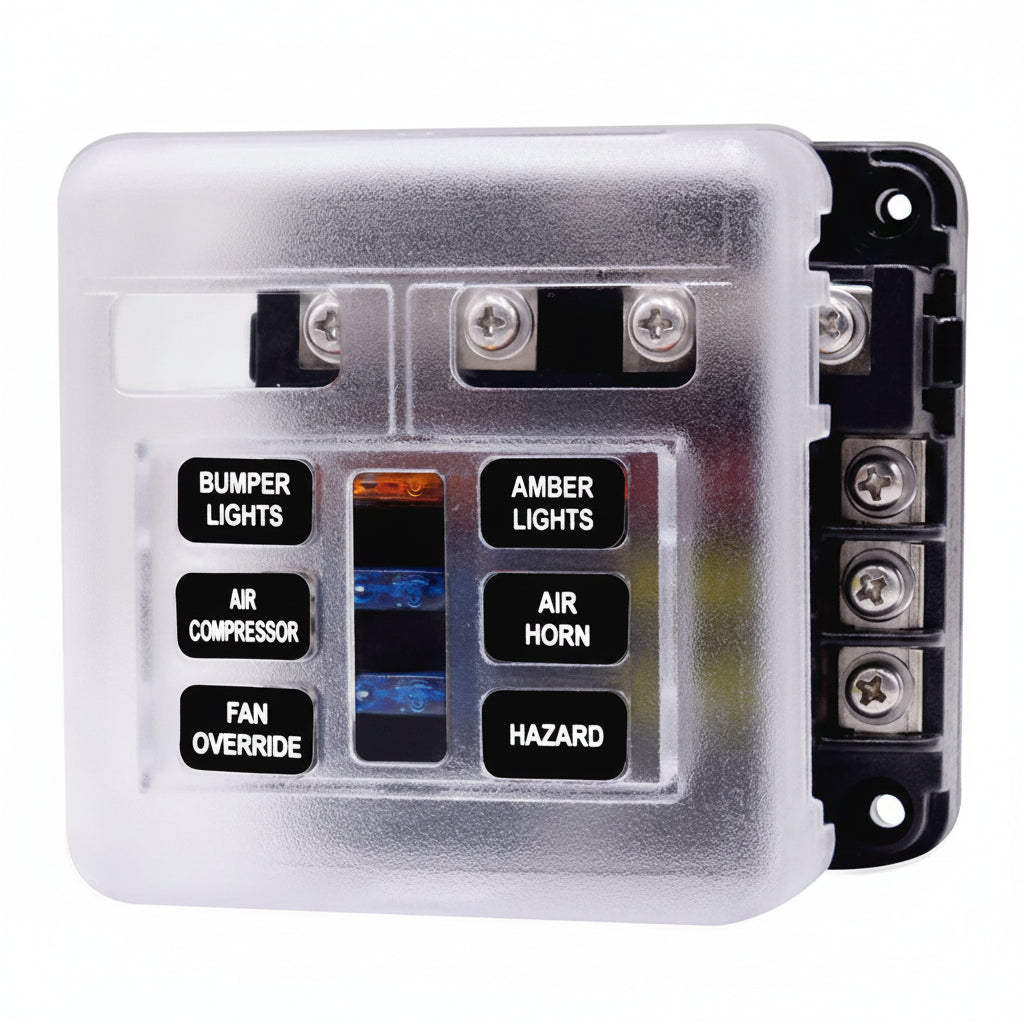

• 6 way fuse box with clear protective cover and labels

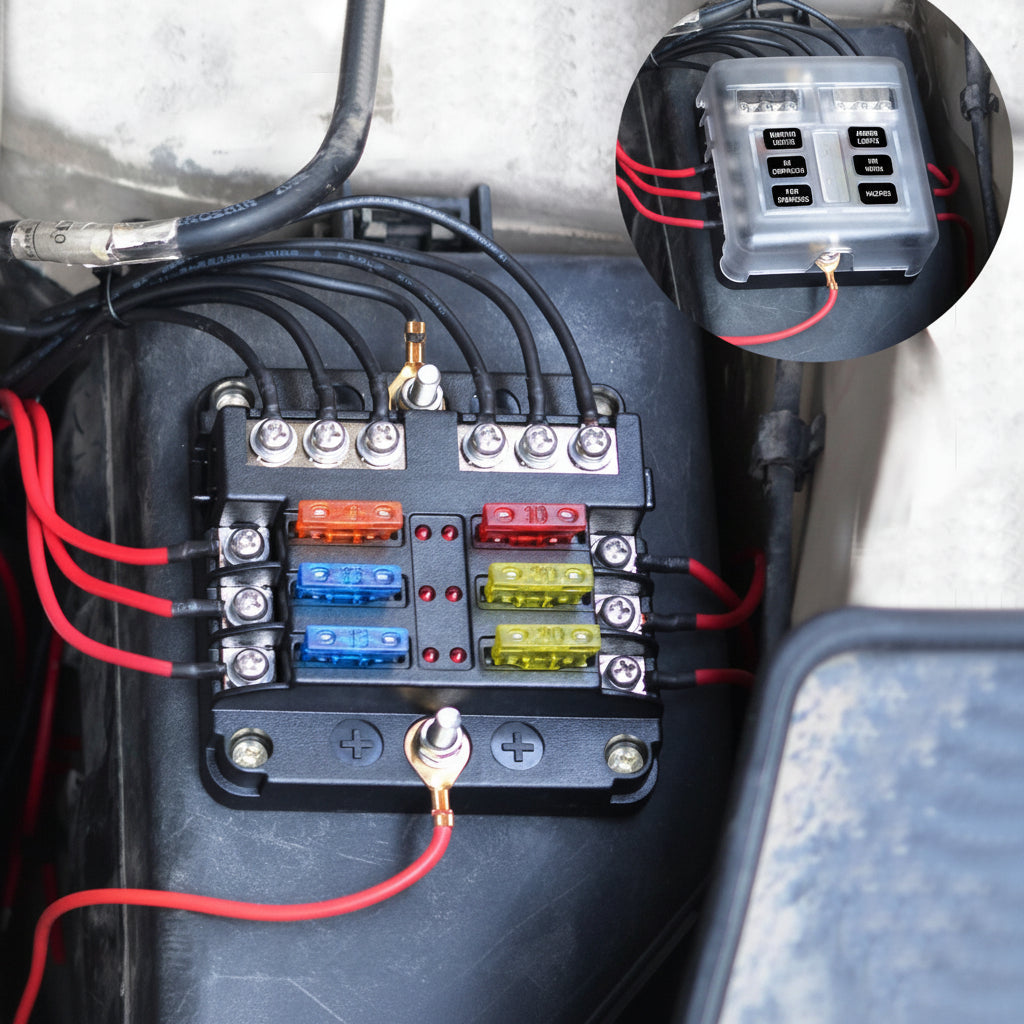

  • 6 way fuse box installed in a campervan electrical system

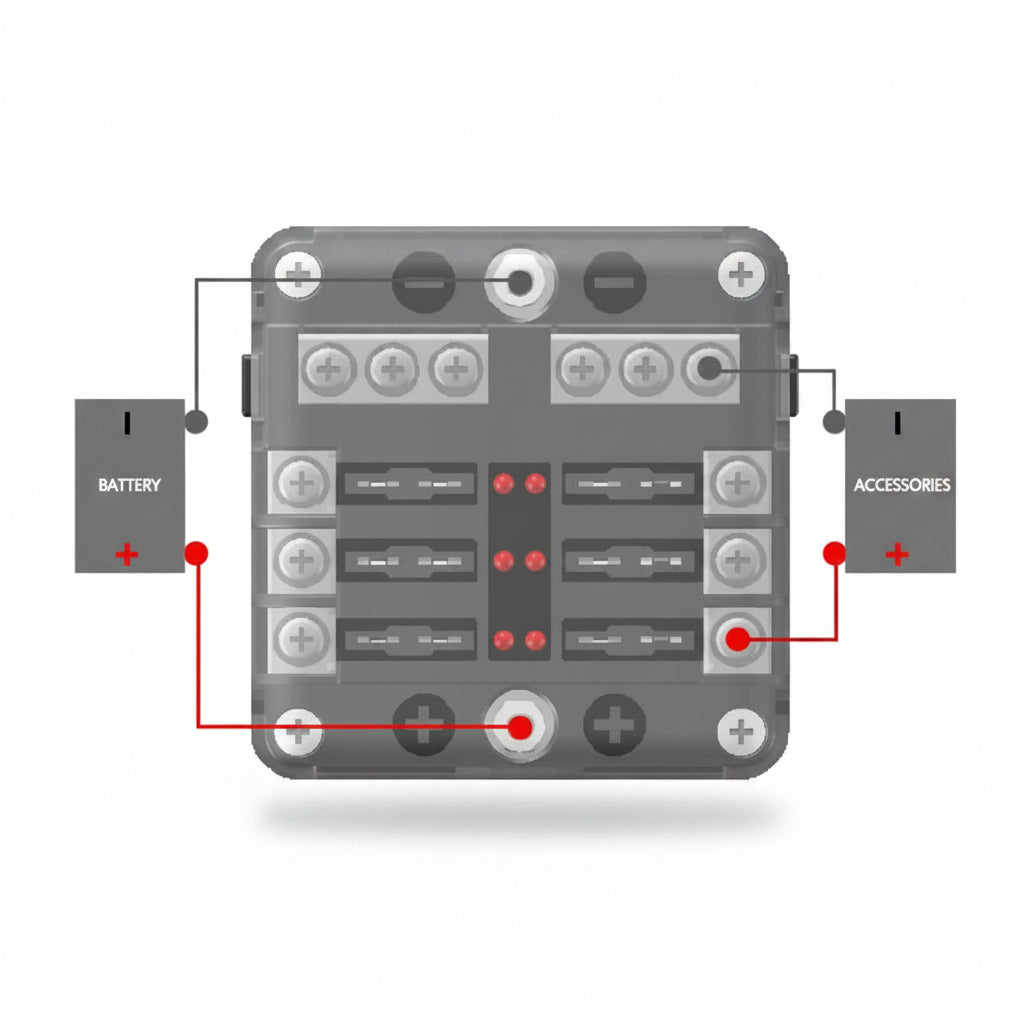

  • 6 way fuse box dimensions and terminal layout

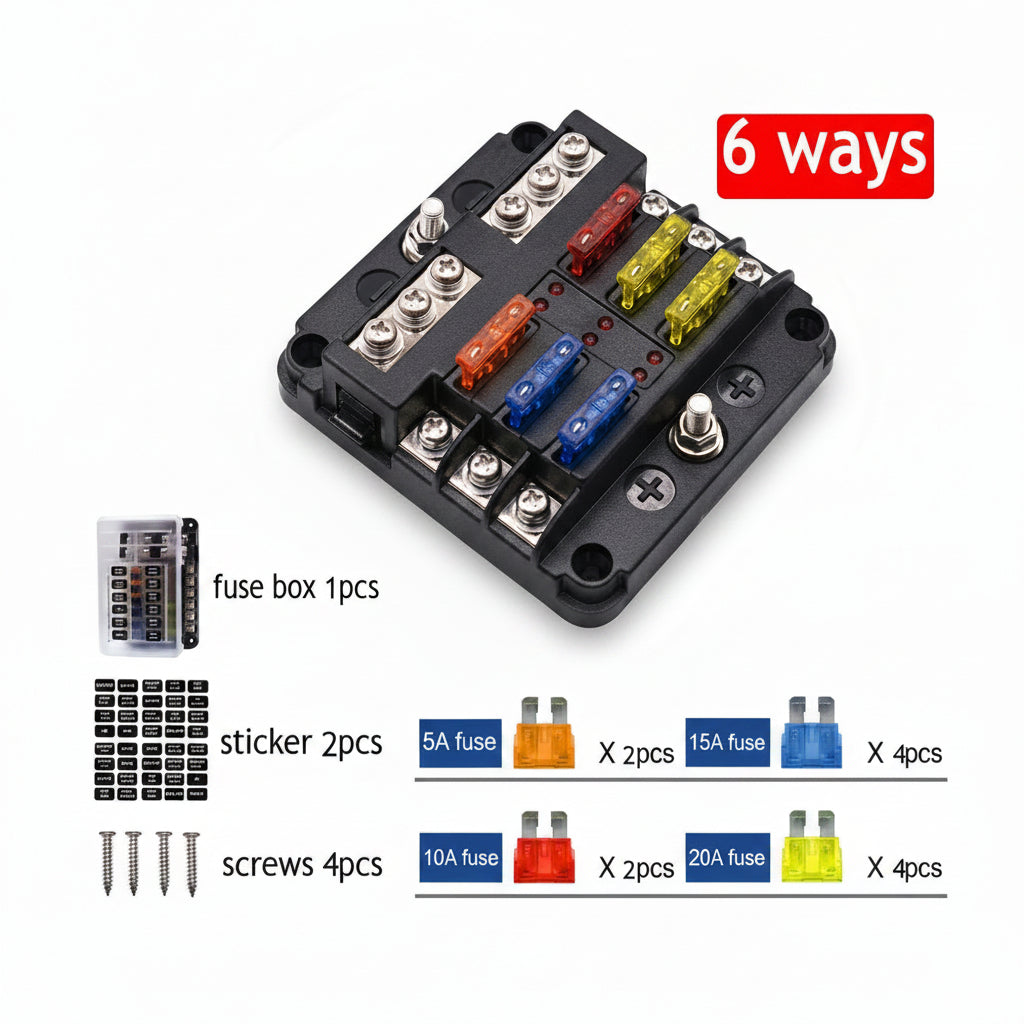

  • 6 way fuse box with fuses and circuit labels specifications
1 4

6 Way Fuse Box with Fuses & Labels

6 Way Fuse Box with Fuses & Labels

SKU: EL016

$25.00
$25.00
Sale Sold out
GST included.

A 6-way fuse box designed to safely distribute and protect multiple 12V or 24V circuits. Ideal for campervans, caravans, boats, and 4WDs.

Benefits

  • Protects up to 6 circuits
  • Built-in bus bar for tidy wiring
  • Includes fuses and circuit labels
  • Clear cover for easy inspection
  • Suitable for 12V and 24V systems

Features

This fuse box provides a simple way to power multiple accessories from a single distribution point. The integrated bus bar reduces wiring clutter, while the included fuses and labels make installation and circuit identification easy.

Specifications

  • Material: PBT, PC, Nickel-Plated Copper
  • Dimensions: 87.75 × 85 × 36.5mm
  • Weight: 176g
  • Rated Voltage: 32V DC
  • Input Current: 100A Max
  • Circuit Rating: 30A Max per Circuit
  • Main Terminal: M5 Threaded Stud
  • Circuit Terminals: M4 Threaded Studs
  • Cover: Waterproof & Dustproof
  • Includes: Fuse Box, Fuses, Labels
View full details

People are asking

Does this include fuses?

Yes, the fuse box includes blade fuses and circuit identification labels.

Can I use this in a campervan?

Yes, it is ideal for campervan, caravan, and motorhome electrical systems.

What can I connect to it?

It can be used for lights, fans, compressors, fridges, charging circuits, and other 12V or 24V accessories.
