Locking Cabinet Paddle Handle Latch - Black

Locking Cabinet Paddle Handle Latch - Black

SKU: LL003

Regular price $39.00
Regular price Sale price $39.00
Sale Sold out
GST included.

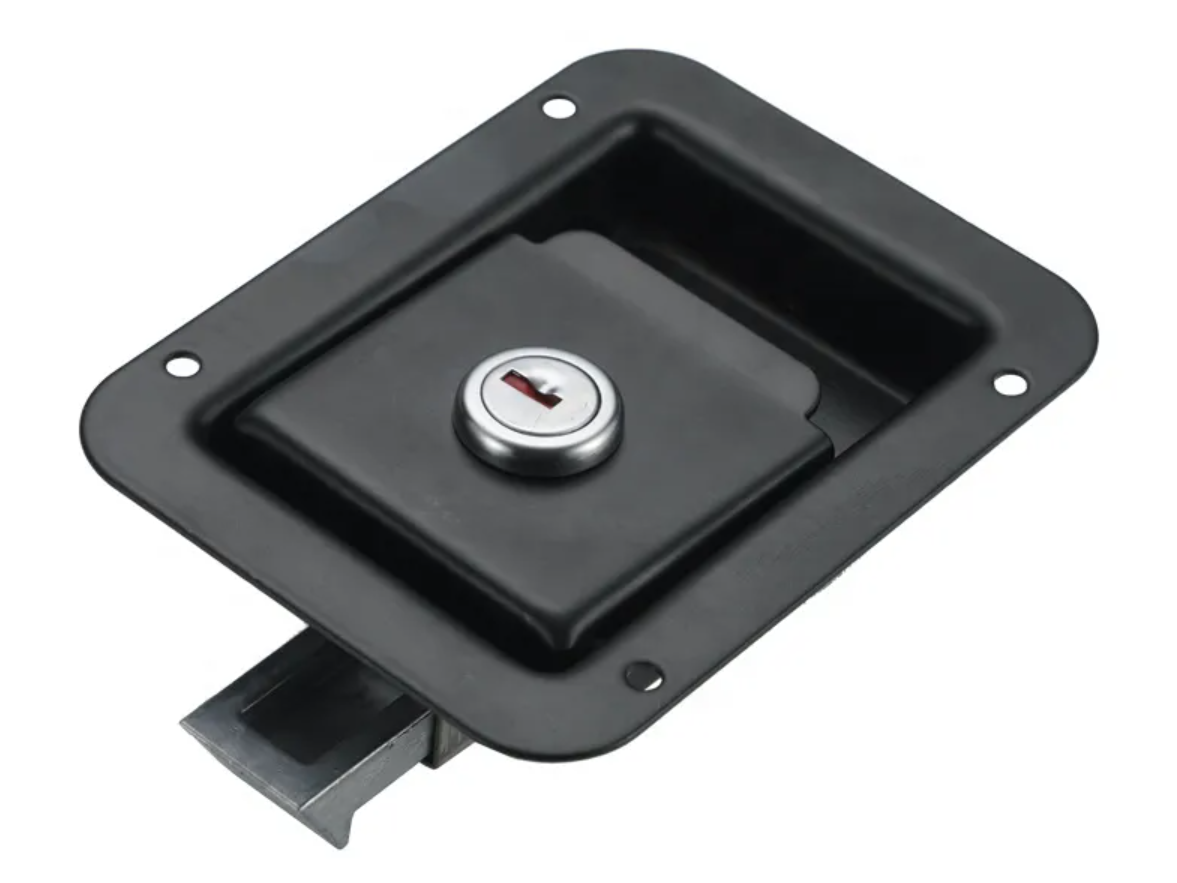

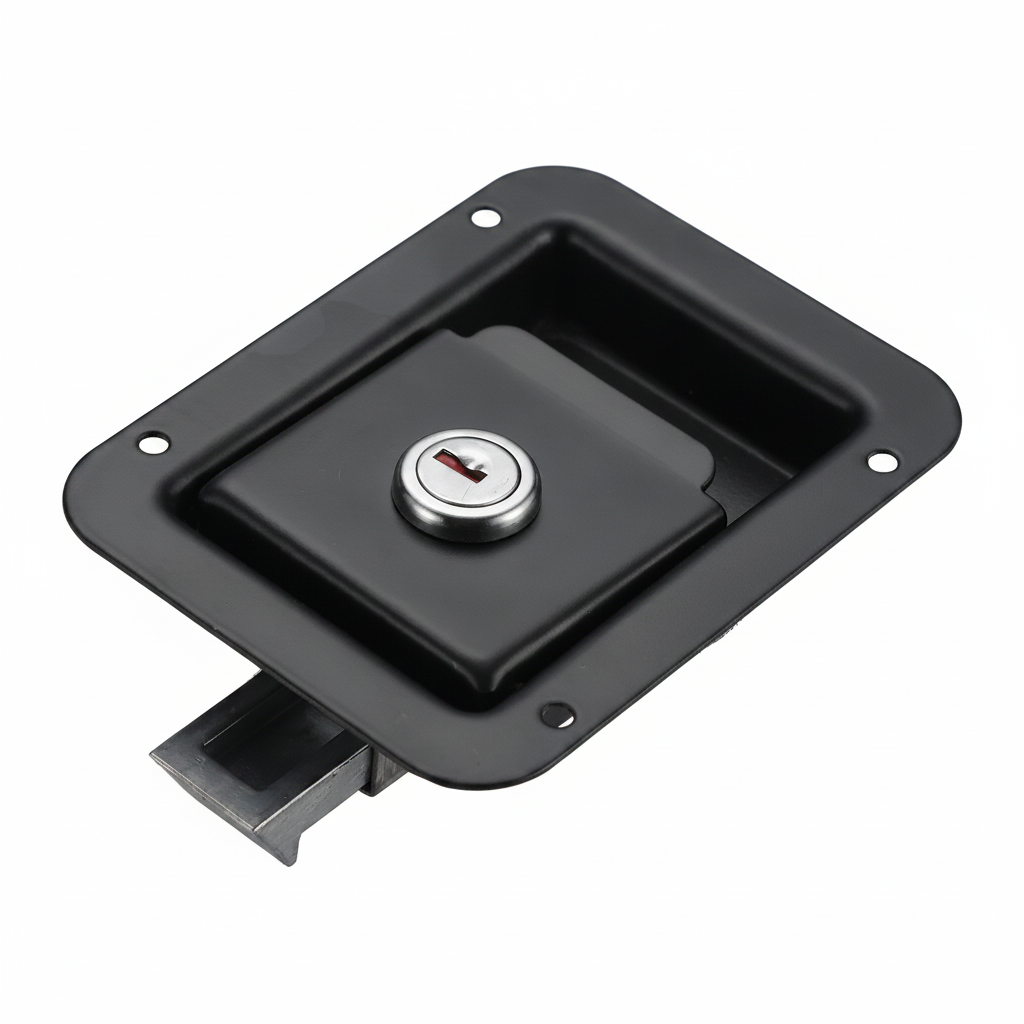

A tidy campervan conversion needs storage you can actually trust. This recessed paddle latch lock keeps your cabinets, tool boxes, and compartment doors shut tight on the road. It sits flush with the panel, so nothing snags or rattles. Built from steel with a polished key cylinder and matte black finish, it looks the part and does the job without fuss.

Benefits

  • Keeps cabinet doors secure during campervan conversion builds and on the road
  • Flush mounted design means no protruding handles to catch gear or clothing
  • Key lock cylinder adds a layer of security for tools and valuables in storage
  • Solid steel construction handles the knocks and vibration of van life
  • Clean matte black finish suits most van interior colour schemes
  • Easy to fit for DIY builders with standard panel cutout installation

Features

Picture this: you've just hit a gravel road somewhere on the South Island, and every unlocked door in your van is swinging open. That's where this latch earns its keep. The recessed paddle design sits embedded into your panel face, so there's nothing sticking out to snag a bag or catch a knee. You press the paddle, it releases the bolt underneath, and the door swings open cleanly. Lock it back up with the key and it's not moving. The steel build handles vibration without working itself loose over time, which matters on long drives over rough roads. For a campervan conversion where storage security is part of the plan, this lock suits tool compartments, under bed drawers, cabinetry doors, and external hatches. It installs with four corner screws into a standard panel cutout, making it a straightforward job for most DIY builders.

Ready to lock down your build? Add one to your cart or get in touch if you need help figuring out sizing for your setup.

Package Includes:
1 piece Handle Lock
2 pieces Keys

Specifications

Constructed from carbon steel with a matte black finish.

Board thickness suits panels between 8mm and 20mm.

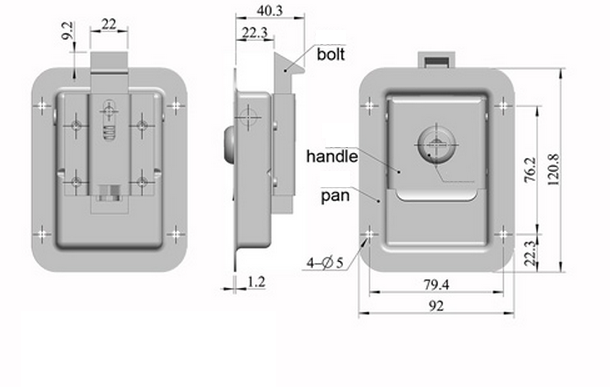

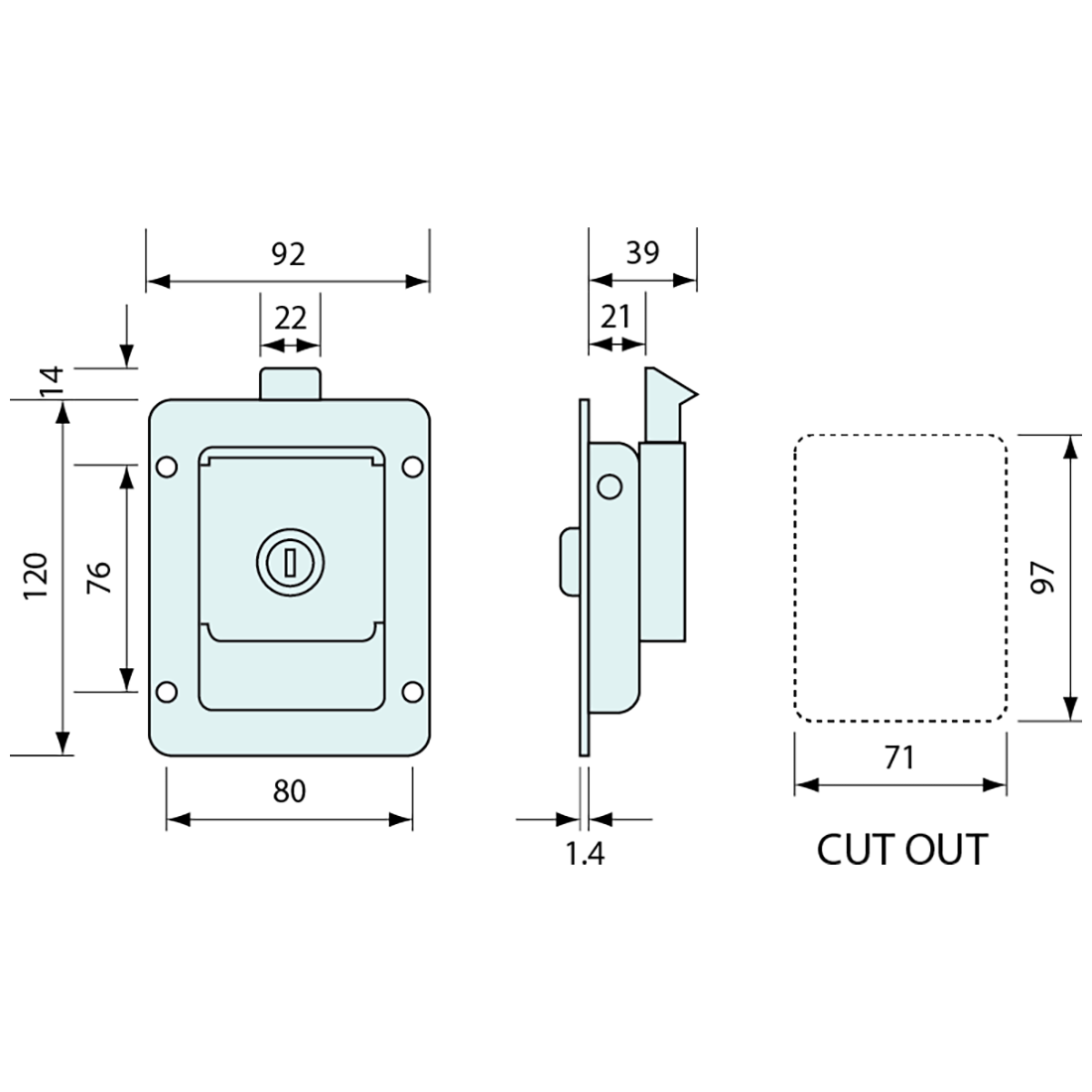

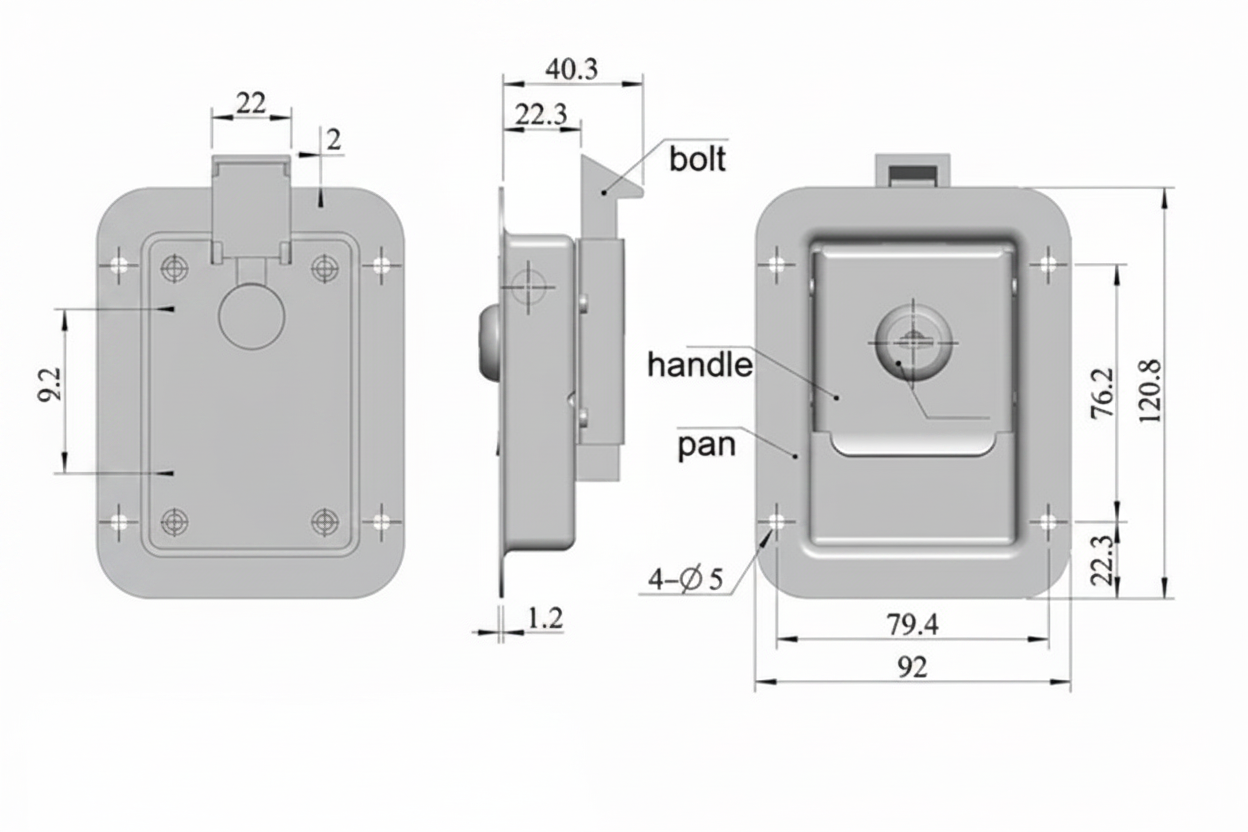

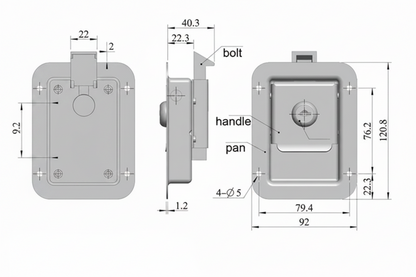

Latch size is 120 x 90mm.

Recessed paddle handle sits flush with the panel surface.

Key locking cylinder included with two keys.

Bolt mechanism extends from the base for secure door retention.

Four corner mounting holes for panel installation.

Suits cabinet doors, tool boxes, and storage compartment hatches.

View full details

People are asking

Is this suitable for a campervan conversion?

Yes. It's designed for exactly that. Fits cabinet doors, storage hatches, and tool compartments in most van builds.

Can I install this myself?

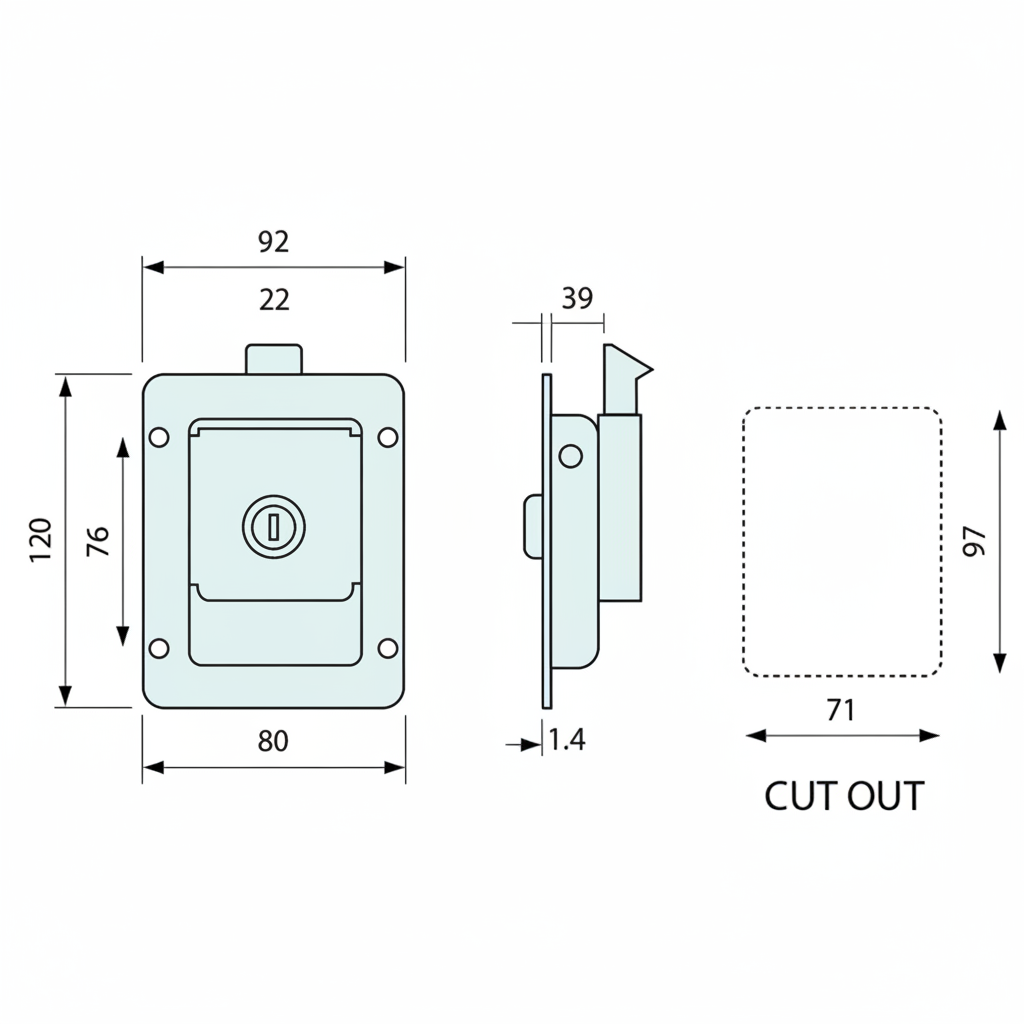

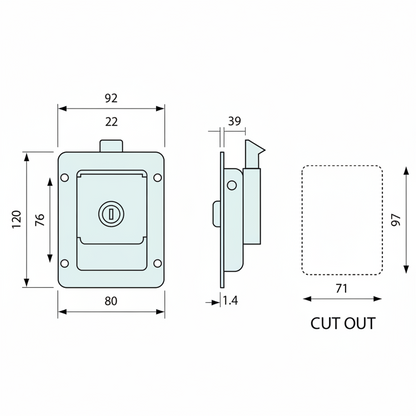

Most DIYers can handle it. You'll need to cut a panel hole to size, then secure with four corner screws.

Will the latch rattle on rough roads?

The bolt mechanism keeps the door held firm. Once locked, there's no movement or rattling on corrugated roads.
