Bus Bar 150A 6 Stud with Cover
Bus Bar 150A 6 Stud with Cover
Regular price
$55.00
Regular price
Sale price
$55.00
Unit price
per
GST included.
- Insulation cover
- Tin-plated copper bus allowing large current of 150A
- Stainless steel screws and studs provide good anti-corrosion protection

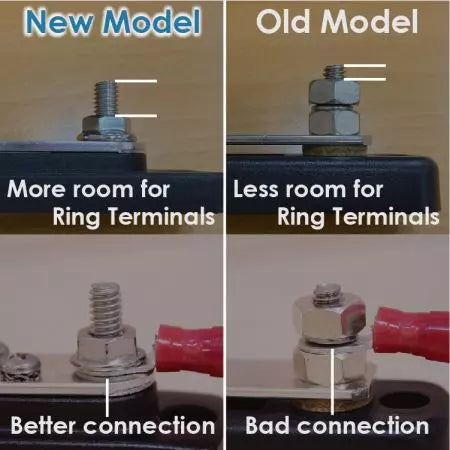

- Upgraded design with Serrated Flange Nuts encourages correct installation of ring terminals and an improved electrical connection
- Rounded Busbar ends allow for end connection to be at any angle
- Max Current 150A
- Max Voltage 48VDC
- Terminal Diameter 1/4 inch / 6.35 mm
- Terminal Material Stainless Steel
- Recommended torque 7 Nm
- Busbar material Tin plated Copper
- Base Material - ABS
- Cover material - Clear Polycarbonate
- Weight - 200g

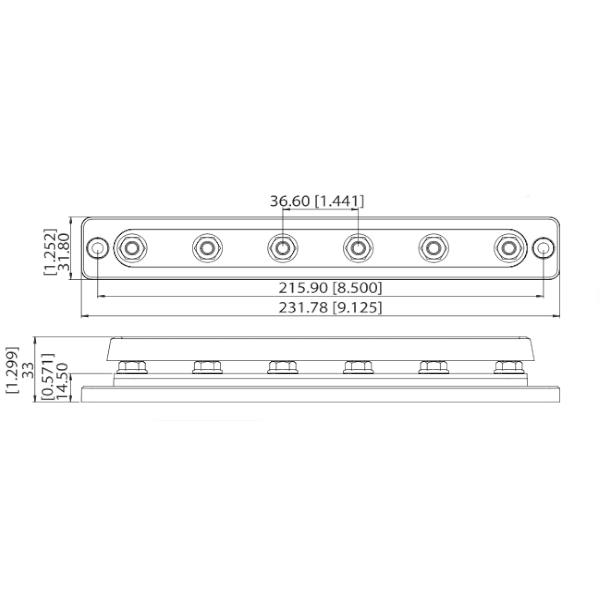

- Dimensions 33mm H x 231mm L x 31.8mm W
- Rounded bus edge for more flexible wiring
- Single flanged nuts
