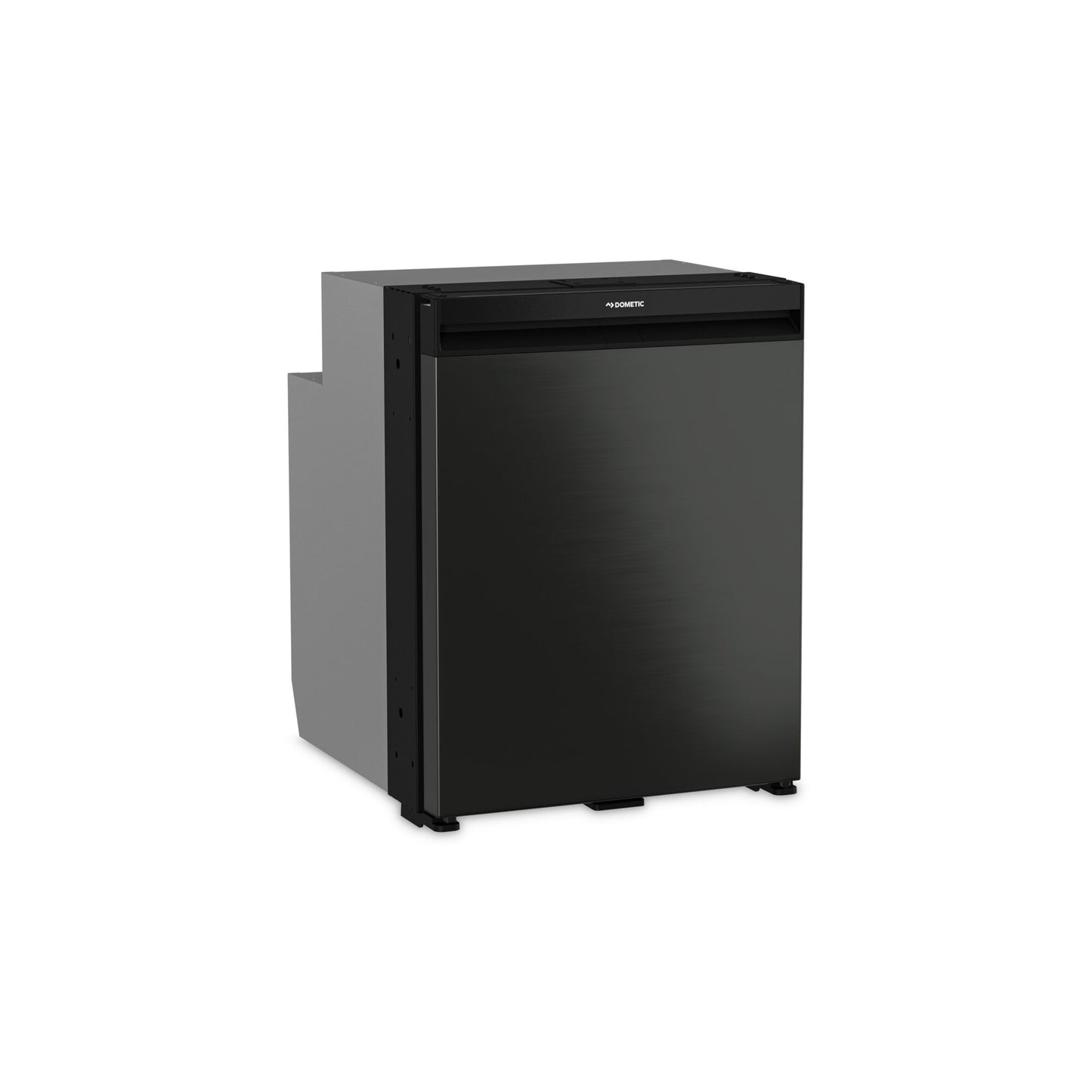

• Dometic NRX 80C 75L built-in compressor fridge/freezer in dark silver — frameless door with full-width handle

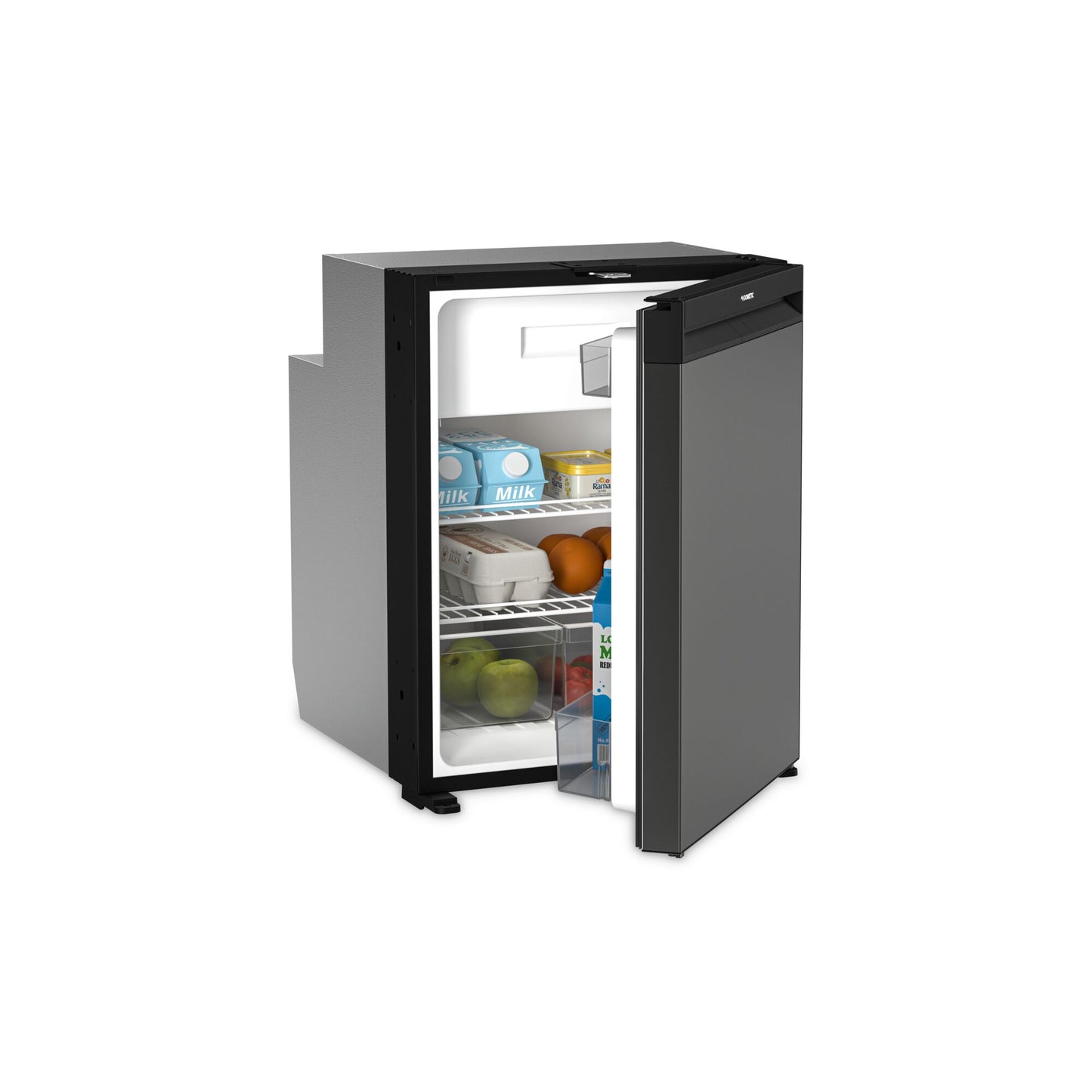

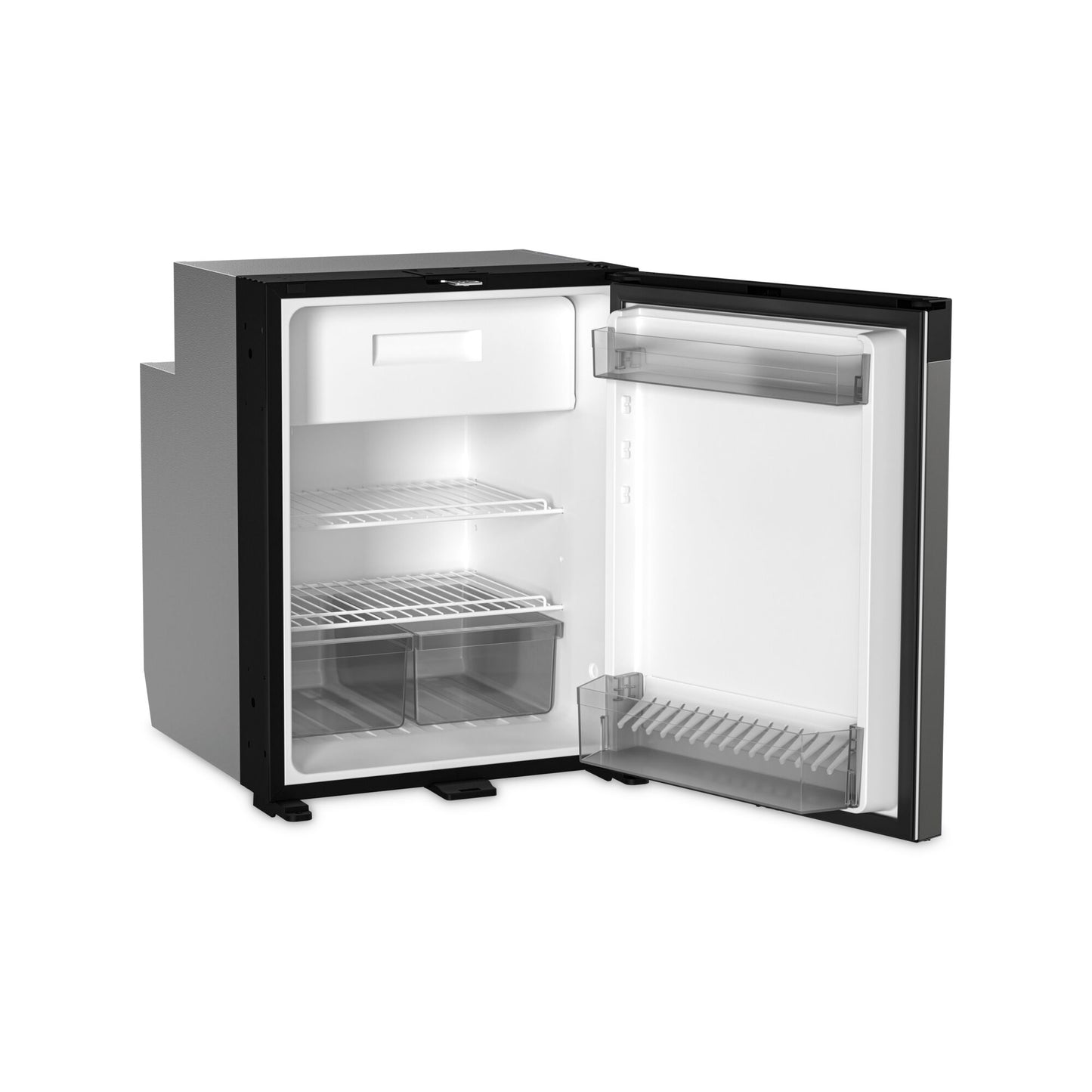

  • Dometic NRX 80C interior showing removable freezer compartment, crispers, adjustable shelves and bottle holder
  • Dometic NRX 80C touch control panel flush-mounted inside cabinet with Eco, Boost and Quiet mode controls
  • Dometic NRX UFM modular installation frame for flush-mount NRX fridge integration in campervan cabinetry
  • Dometic NRX UFM flush-mount frame side profile showing bevelled rear for tight cabinetry installation
  • Dometic NRX 80C dimensions diagram — 475mm wide, 537mm deep, 625mm tall for campervan installation planning
  • Dometic NRX 80C reversible door hinge detail — can be fitted left or right to suit van layout

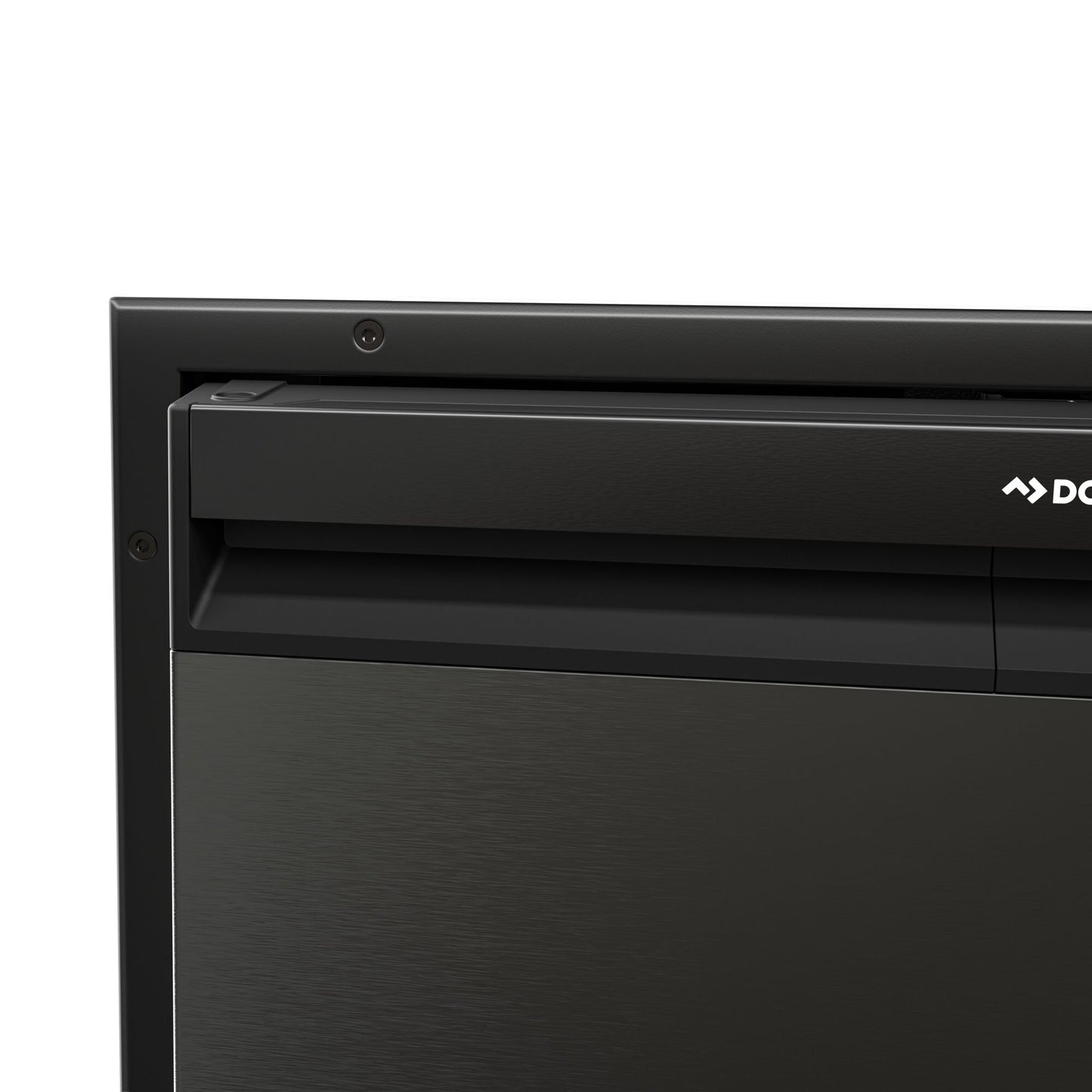

  • Dometic NRX 80C dual-function lock detail which also acts as a ventilation vent to prevent pressure build-up
1 8

Dometic NRX 80C Fridge/Freezer

Dometic NRX 80C Fridge/Freezer

SKU: AP015

$1,999.00
$1,999.00
Sale Sold out
GST included.

80 litres of smart, efficient cooling in a frameless built-in design. The Dometic NRX 80C runs as a fridge, freezer, or both simultaneously — and uses up to 25% less power than comparable models, making it ideal for solar-powered van builds.

Benefits:

• 3-in-1: run as fridge, freezer, or fridge+freezer simultaneously

• Up to 25% more energy efficient than comparable fridge models — only 0.22kWh per 24 hours

• Three compressor modes: Eco (maximum efficiency), Boost (fast cool-down), Quiet (silent nights)

• Removable 6.6L freezer compartment — pull it out for full 75L fridge space

• Reversible door hinge — fit left or right to suit your layout

• Winter Mode prevents door seals freezing in cold climates

• Bevelled rear for maximum space utilisation in tight cabinetry

Features:

The NRX 80C replaces the popular CoolMatic CRX80 and represents a significant step up in efficiency and usability. The illuminated touch control panel is flush-mounted inside the cabinet — clean and unobtrusive. Inside you’ll find two crispers, adjustable shelves, a bottle holder and door shelf, plus the removable freezer compartment that clips out in seconds. The frameless dark silver door and full-width handle give it a premium, integrated look that suits modern van builds. Dual-function locks also act as vents — a clever detail that prevents pressure build-up. Compatible with 12V and 24V DC natively, and 240V AC via the optional Dometic adapter. Download the installation manual below before fitting.

Pairs well with our Dometic 2-Burner Hob with Sink for a complete Dometic kitchen setup.

Specifications

• Total volume: 75L (68.4L fridge + 6.6L freezer)
• Dimensions: 475mm (W) × 537mm (D) × 625mm (H)
• Weight: 20kg
• Voltage: 12/24V DC, 240V AC (optional converter)
• Power consumption: ~0.22kWh/24hrs (Eco mode, 25°C ambient)
• Rated power: ~55W / ~1.05A at 12V
• Refrigerant: R134a
• Climate class: T
• Colour: Dark silver/black
• Reversible door hinge: Yes
• Modular install: Standard or flush-mount frame

Downloads

Dometic NRX Series Refrigeration Manual

View full details

People are asking

What’s the difference between the NRX 80C and the NRX 80S?

The C has a dark silver/black front panel. The S has a stainless steel front. Performance is identical — it’s purely a finish choice to match your interior.

Can it run on solar?

Yes — at 0.22kWh per 24 hours in Eco mode, it’s well within reach of a modest solar setup. A 100W panel with a 100Ah battery will comfortably cover it.

Can I use the full 75L as fridge space?

Yes — just remove the freezer compartment and you have the full cabinet for refrigeration.

Does it work on 240V mains?

It runs natively on 12/24V DC. For 240V AC, you need the optional Dometic AC adapter.

What’s the Winter Mode?

A feature that prevents the door seals from freezing solid in very cold ambient temperatures — useful for South Island winters or high-altitude camping.
