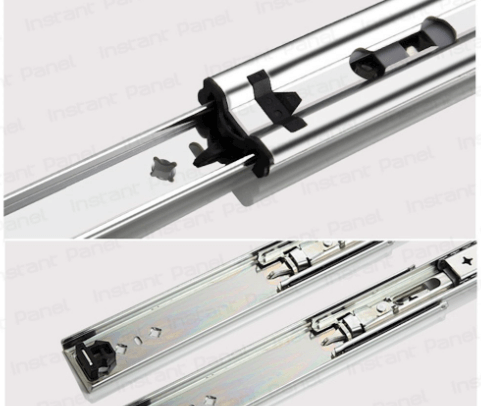

Heavy Duty Drawer Slides 500mm x 53mm 117kg

Heavy Duty Drawer Slides 500mm x 53mm 117kg

SKU: MF143

$90.00
$90.00
Sale Sold out
GST included.

Industrial-grade 500mm drawer slides rated to 117kg — the go-to runner for van build drawers, underbench storage, and tool drawers that need to handle real-world loads.

Benefits:
• 117kg rated capacity — handles heavy tool kits, camp gear, and food storage without flexing or binding.
• Full 3-stage extension — drawer opens to full 1015mm depth, giving complete access to the back of deep van cabinets.
• Ball bearing action — smooth, quiet operation even when loaded, and won't deteriorate with daily use.
• Cold-rolled steel construction — 2mm thick with zinc-plate finish resists the moisture and humidity common in van environments.
• No-lock design — allows free movement in both directions, ideal for drawers you open and close constantly.
• Side-mount installation — flat-head M5 screws (not included) into timber or ply cabinet sides for a clean, secure fit.

Features:
Closed length: 500mm. Fully extended length: 1015mm. Width: 53mm. Thickness: 19mm +/-0.5mm. Rated load: 117kg per pair. Material: cold-rolled steel, 2mm wall, zinc plated. No lock. 3-stage full extension. Recommended fixing: flat-head M5 screws (not included). Sold as 1 pair (2 slides). Also known as 2053-class heavy duty runners.

Need a locking version or heavier-rated slides? Contact us — lockable and 215kg super heavy duty variants are also available.

Building out your van storage? Check out our Self Containment Plumbing Kit or browse our full conversion hardware range.

Specifications

Closed Length: 500mm
Fully Extended Length: 1015mm
Width: 53mm
Thickness: 19mm (+/- 0.5mm)
Rated Load Capacity: 117kg per pair
Material: Cold-rolled steel, 2mm wall thickness
Finish: Zinc plated
Extension Type: 3-stage full extension
Lock: No lock
Fix Method: Side mount, flat-head M5 screws (not included)
Sold As: 1 pair (2 slides)
Also Known As: 2053-class heavy duty runners
SKU: MF143

View full details

People are asking

What is the actual extended length of these 500mm slides?

These are 3-stage full-extension slides, meaning the fully extended length is double the closed length. Closed length is 500mm; fully extended length is 1015mm. This gives you full access to the entire depth of the drawer, which is essential for drawers installed under a bed platform or behind a seat base.

Do I need a locking version for a campervan drawer?

It depends on your build. The no-lock version is fine for drawers with a separate catch or latch (such as a push-to-open or magnetic latch), and for drawers that sit flat and don't risk sliding open while driving. If you want the slides themselves to hold the drawer closed when the vehicle is moving, choose the locking variant — contact us and we can supply the 500mm 117kg with-lock version instead.

What screws do I use to mount these slides to a ply cabinet?

Flat-head M5 screws are recommended. These are not included with the slides. For 12mm or 18mm plywood van cabinetry, a countersunk M5 x 16mm or M5 x 20mm screw works well. Ensure you mount into solid timber or ply — avoid mounting into thin MDF or particleboard as the slides will carry significant load.
