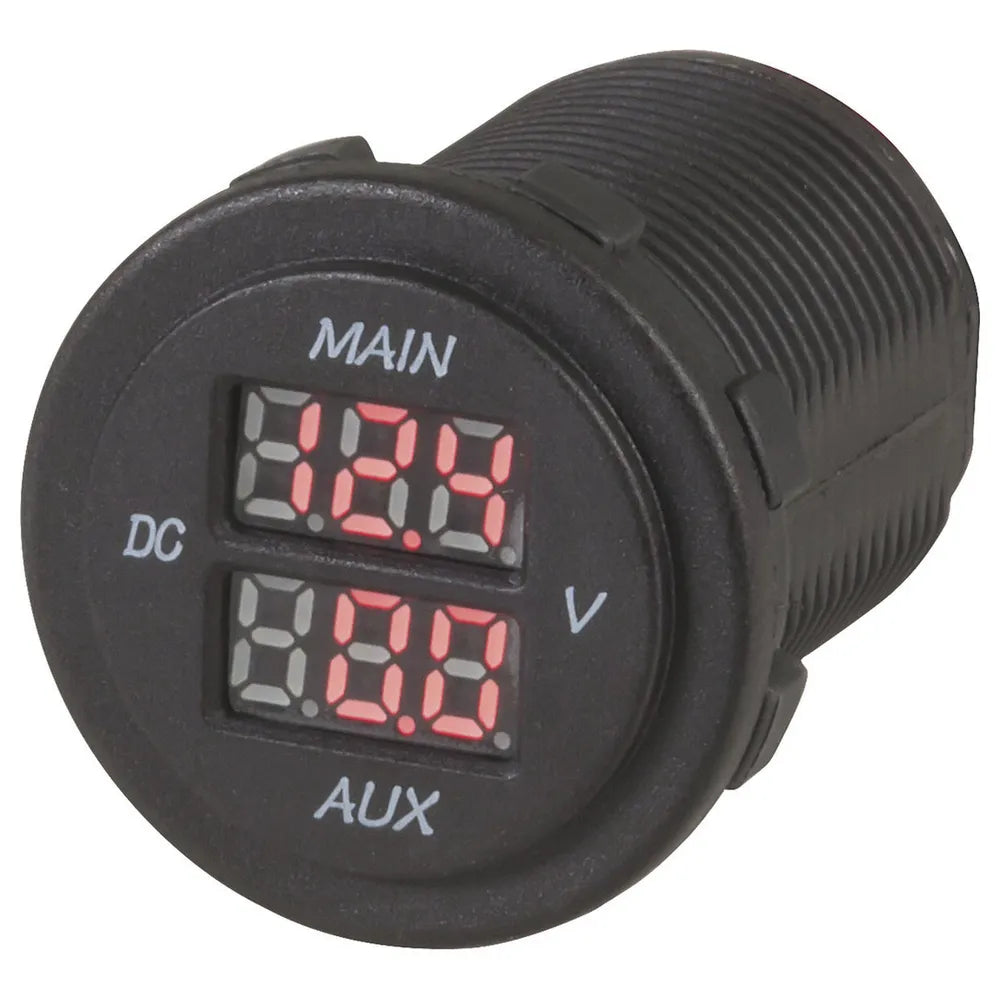

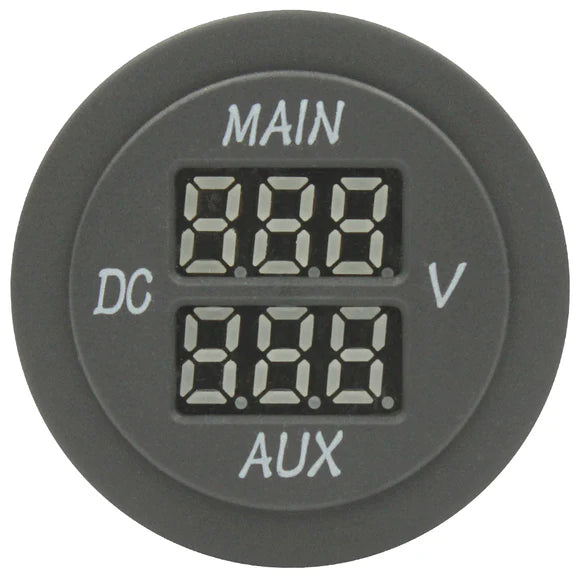

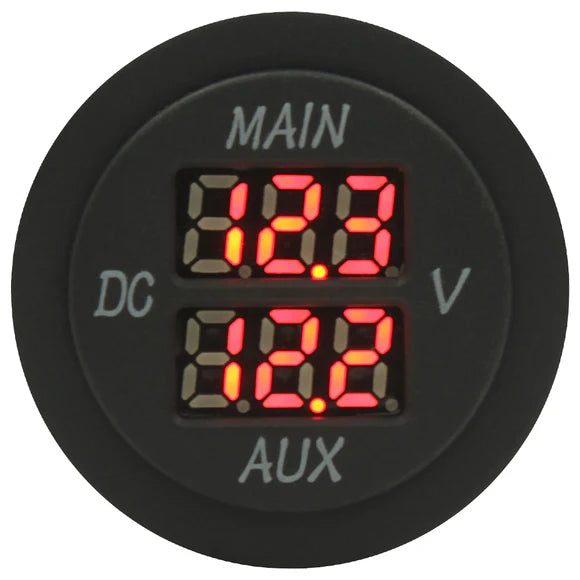

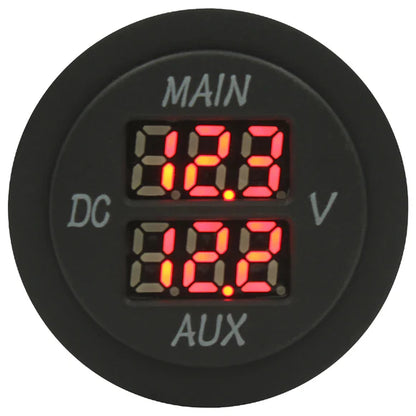

Dual Battery LED Voltmeter

Monitor your starter and leisure batteries simultaneously with one compact unit. The Dual Battery LED Voltmeter reads both primary and auxiliary battery voltages from 6–60V — fits a 28mm hole and used on most of our builds.

Benefits:

• Reads two battery voltages simultaneously — starter and leisure in one panel mount

• 6–60V range covers 12V, 24V, 36V and 48V systems

• 27mm body fits a standard 28–29mm panel cutout — same size as most switches

• Clear LED display — easy to read in dim conditions

• Compact: 50mm long including terminals, 36.5mm face diameter

• Used on our own campervan builds

Features:

A simple but genuinely useful tool in any dual-battery campervan setup. Monitoring both your starter battery and leisure battery from a single panel location means you can see at a glance whether the van is ready to start and whether your house battery has enough charge. Fits into a standard 28–29mm panel hole — same size as most switches and the circular voltmeter. Wide voltage range of 6–60V makes it compatible with 12V, 24V, 36V and 48V systems. Pair with our Digital Voltmeter Circular Display if you also want a single-battery display.
