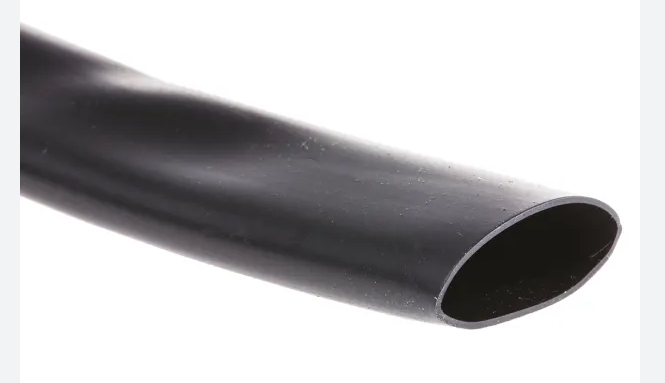

Adhesive Lined Heat Shrink 9.5mm 3:1 — Black (12m Roll)

Adhesive Lined Heat Shrink 9.5mm 3:1 — Black (12m Roll)

Glue Lined Battery Cable Heat Shrink

Regular price $75.00 NZD
Regular price Sale price $75.00
Unit price $6.25  per  m
Sale Sold out
  • 9.5mm, 3:1 shrink ratio
  • Suits 6–16mm² battery and solar cables
  • Full 12m roll, black
View full details

Description

Professionally seal battery cables, lugs and heavy joins with marine-grade, glue-lined heat shrink — a full 12 metre roll for your whole build.

Benefits:
• Adhesive lining melts and flows around the cable — a moisture-resistant seal that won't shake loose on corrugations.
• 3:1 shrink ratio — fits over crimped lugs and large butt connectors, then recovers tight onto the cable.
• 9.5mm supplied size suits 6–16mm² battery, solar and charging cables.
• Full 12m roll — far cheaper per metre than short pre-cut lengths.
• Dual-wall construction — flame-retardant polyolefin outer, heat-activated glue inner.
• Black finish gives crimped lugs a tidy, factory-look termination.

Features:
Dual-wall adhesive-lined polyolefin tubing, 9.5mm supplied diameter recovering to approximately 3.2mm (3:1 ratio), black, supplied as a 12 metre roll. Use a heat gun rather than a flame on this larger diameter — keep it moving for an even shrink, and look for a bead of adhesive at each end of the tube to confirm the seal.

For general 12V loom wiring and smaller crimp joins, use the 4.8mm roll instead.

Ideal for terminating cables on the Projecta 400Ah Lithium or tidying runs to a 16-Way Busbar.

Specifications

• Supplied diameter: 9.5mm
• Recovered diameter: approx. 3.2mm
• Shrink ratio: 3:1
• Construction: Dual wall, adhesive (glue) lined
• Material: Flame-retardant polyolefin with hot-melt adhesive liner
• Colour: Black
• Length: 12 metre roll
• Typical use: Battery, solar and charging cables approx. 6–16mm², crimped lugs

People are asking

What cables does 9.5mm heat shrink fit?

With a 3:1 ratio it shrinks from 9.5mm down to roughly 3.2mm, making it ideal for heavier cable runs - think 6mm2 to 16mm2 battery and charging cables, crimped lugs, and sealing the barrel of larger butt connectors.

Does the adhesive lining make joins waterproof?

Yes - the dual-wall construction means the inner glue layer melts and flows around the cable as the outer wall shrinks, creating a moisture-resistant seal. It is the same approach used on marine wiring, which is why it suits campervans that see condensation, damp gear, and the occasional leak.

Can I use a lighter instead of a heat gun?

A lighter will work in a pinch, but the flame heats unevenly and can scorch or split the outer wall before the adhesive melts properly. A heat gun gives an even shrink and a reliable glue seal, especially on the larger diameters - worth using on anything you want to last.
