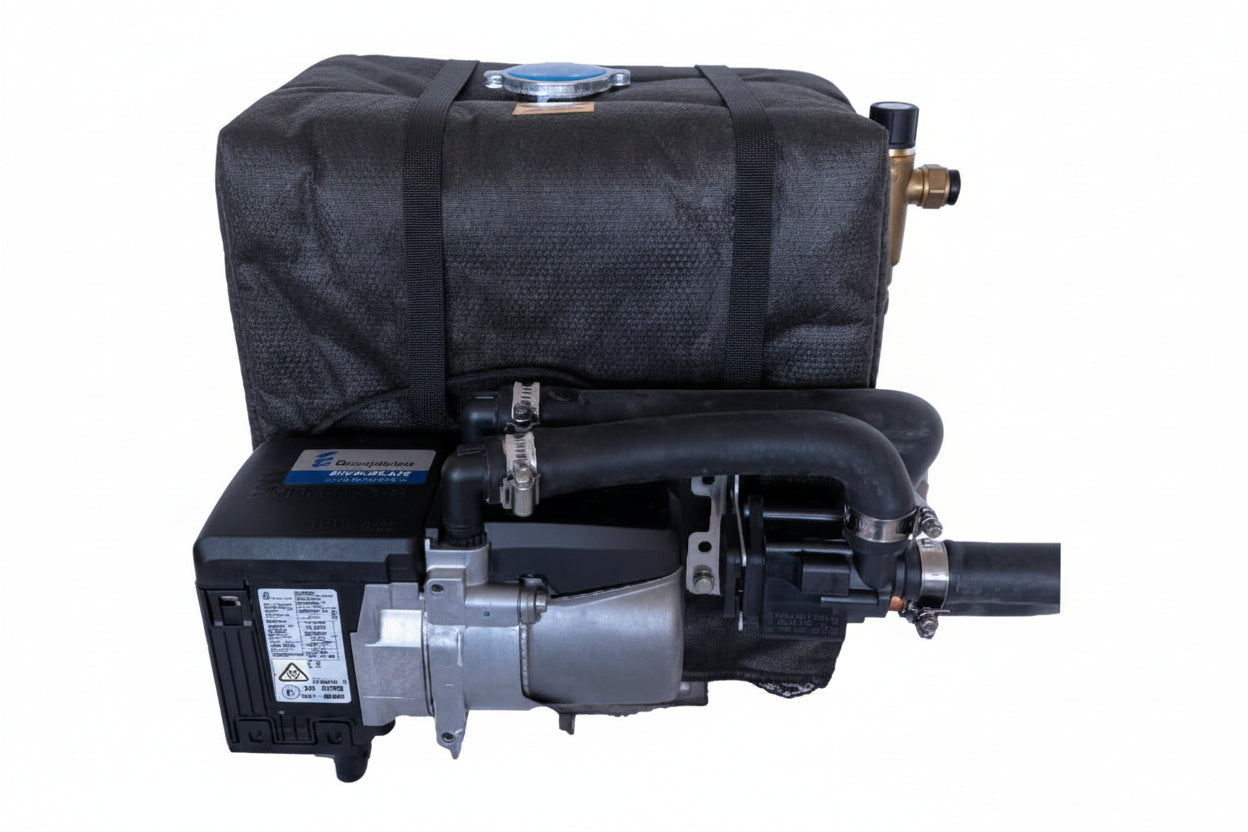

Hydroplate Hydronic HS3 D5E Diesel Water Heater

This Eberspächer Hydroplate system is a continuous flow hot water service suitable for various applications and uses for installation into Motorhomes, Caravans, Campers , or Boats just to mention a few.
It utilizes either the existing Vehicle Diesel tank or fuel can be supplied by a designated tank. 12v low amp draw manages the units operation to provide a constant 40°C out of the heat exchanger based on a flow rate between 5-10 litres per minute.
In addition, the Hydroplate has an optional air heating matrix that can be fitted to supply air heating to the desired temperature, thereby providing a complete off grid Hot water and air heating solution.

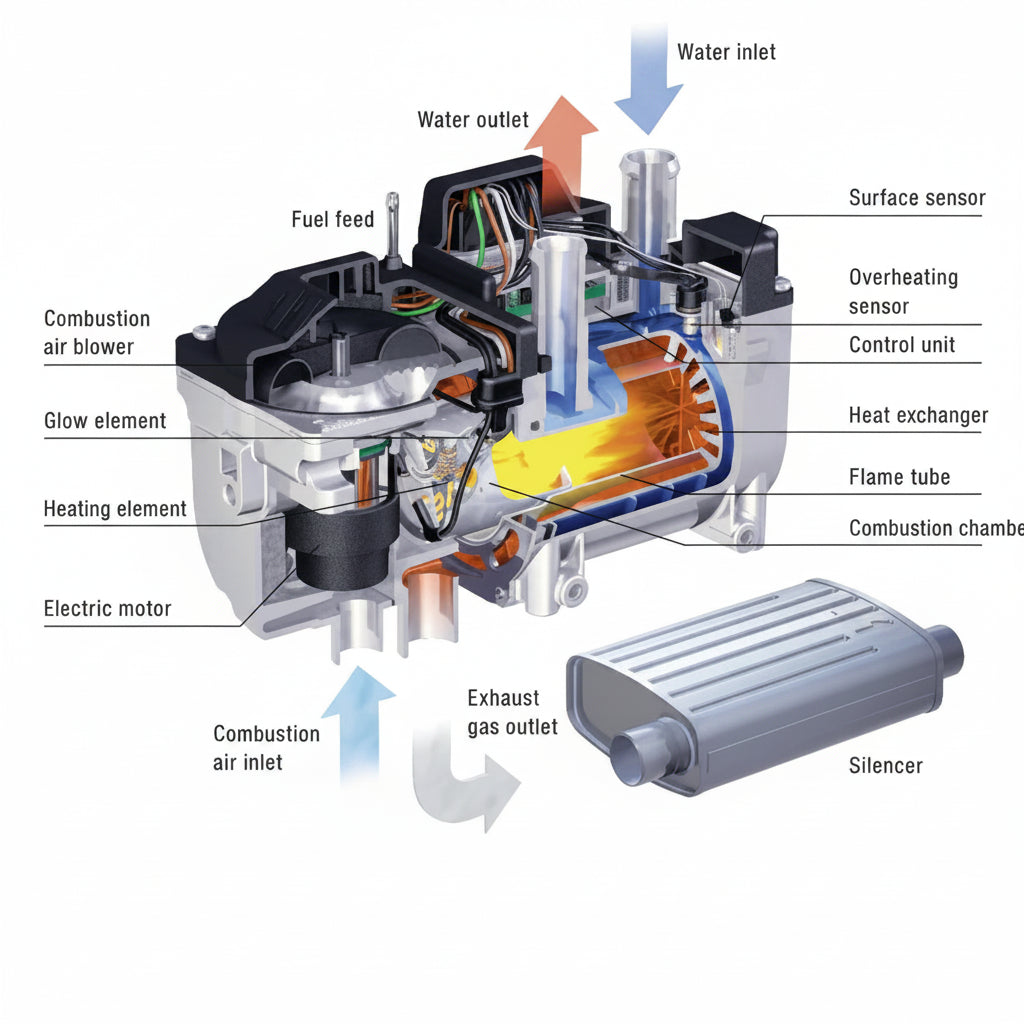

As soon as the heater receives its starting pulse, the following processes are triggered by the central control unit:
• Automatic safety check.
• The glow plug is warmed up.
• The metering pump conveys fuel.
• The burner motor starts smoothly.
• The fan delivers combustion air.
• Fuel-air mixture ignites (flame formation).
• The hot combustion gases flow through the heat exchanger that delivers the heat to the coolant system of the vehicle's engine.
• The heater is controlled electronically and works - according to heat requirement - in several power stages.

Specifications:

• Fuel Type: Diesel
• Voltage: 12V
• Electrical Power Consumption: 32W
• Fuel Consumption: 0.59 l/h
• Weight: 2.3kg
