Maxxfan Dome Plus with LED and Sleeve - White

Maxxfan Dome Plus with LED and Sleeve - White

SKU: VT033

$249.00
$249.00
Sale Sold out
GST included.

The Maxxfan Dome Plus is a compact 12V exhaust fan with built-in LED lighting, perfect for venting moisture and stale air from campervan bathrooms, shower cubicles, and compact kitchens. No power? No worries — it also works as a ceiling fan with the lid closed. White frame suits most van interiors.

Benefits:
• Keeps moisture out of your van bathroom or shower cubicle.
• Integrated LED light — vent and illuminate in one tidy unit.
• Fan and light controlled by separate switches for flexible use.
• Integrated rain shield lets you leave it open in wet weather.
• Extension sleeve included — suits roof thicknesses up to 6" (152mm).
• Fan guard protects blades and acts as a secondary rain shield.

Features:

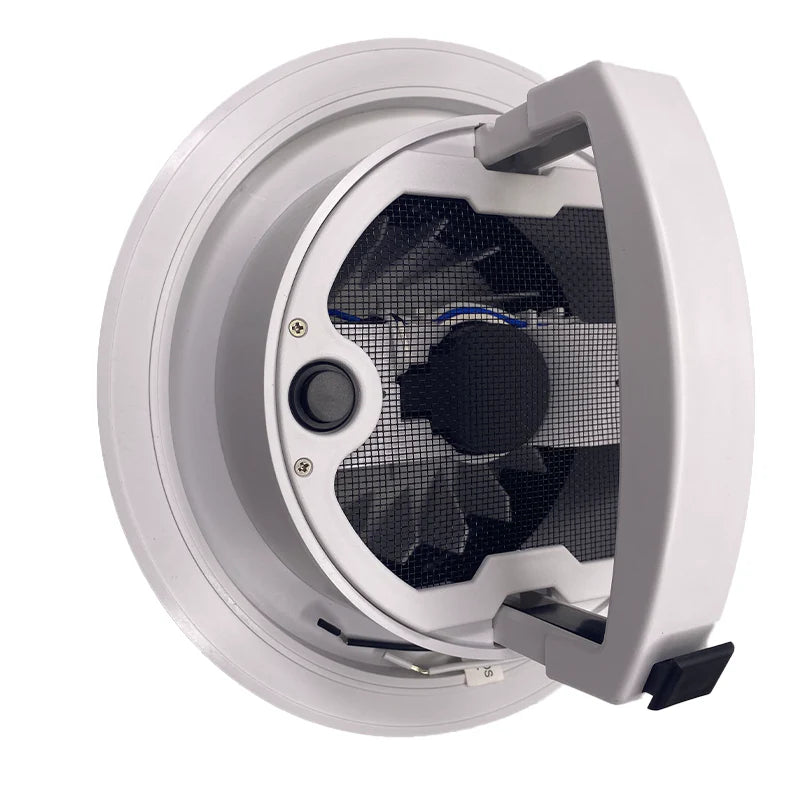

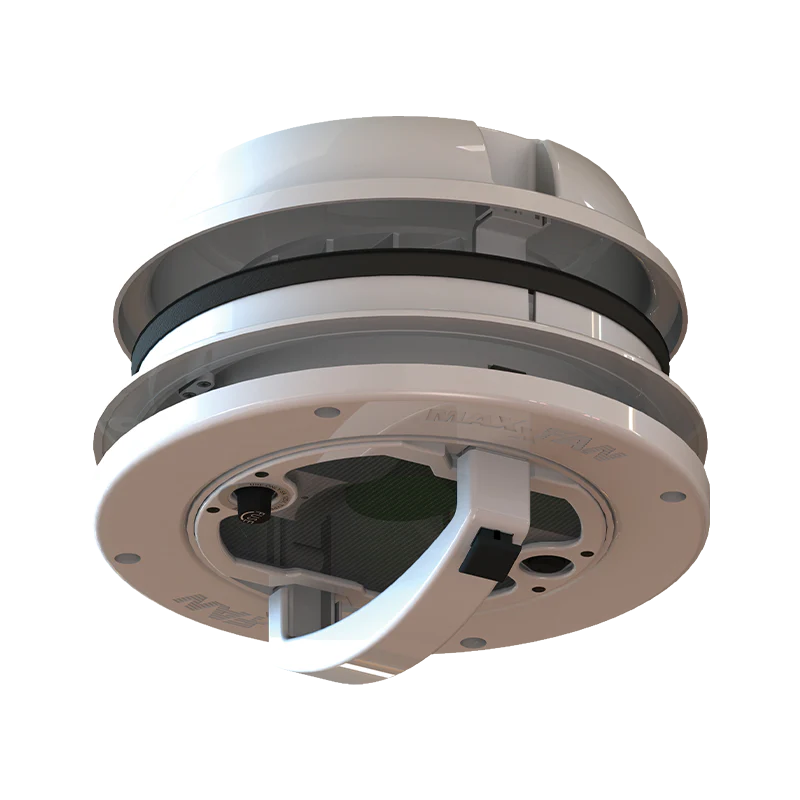

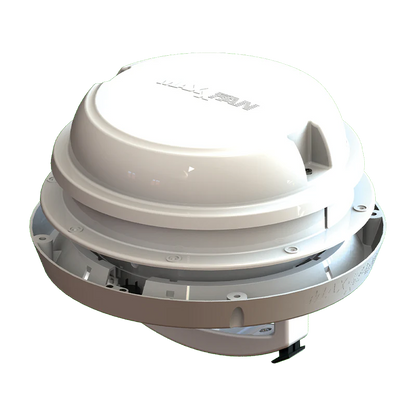

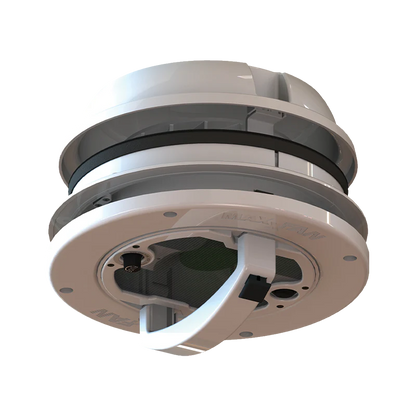

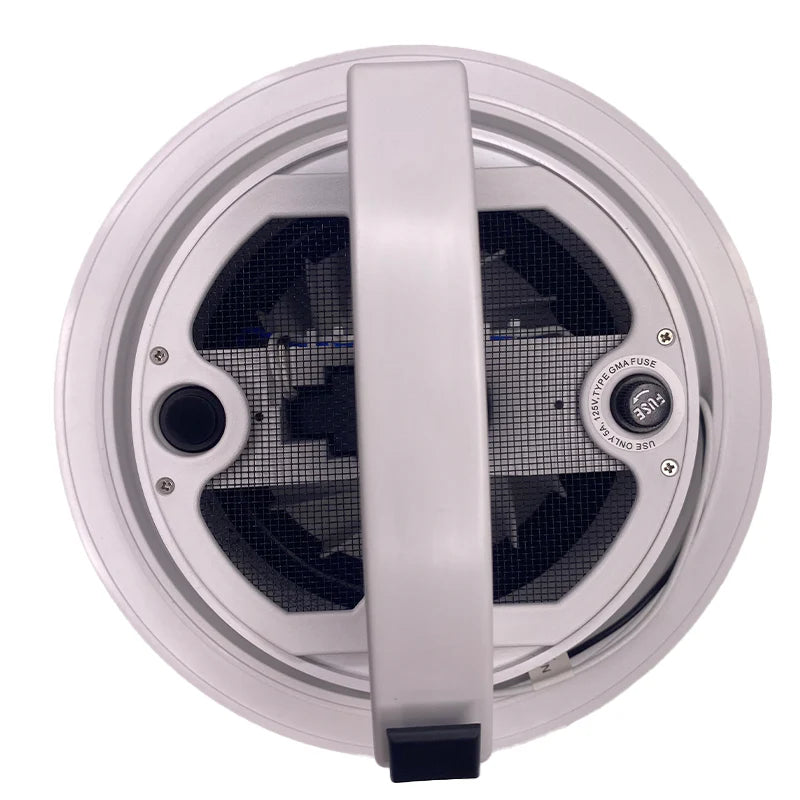

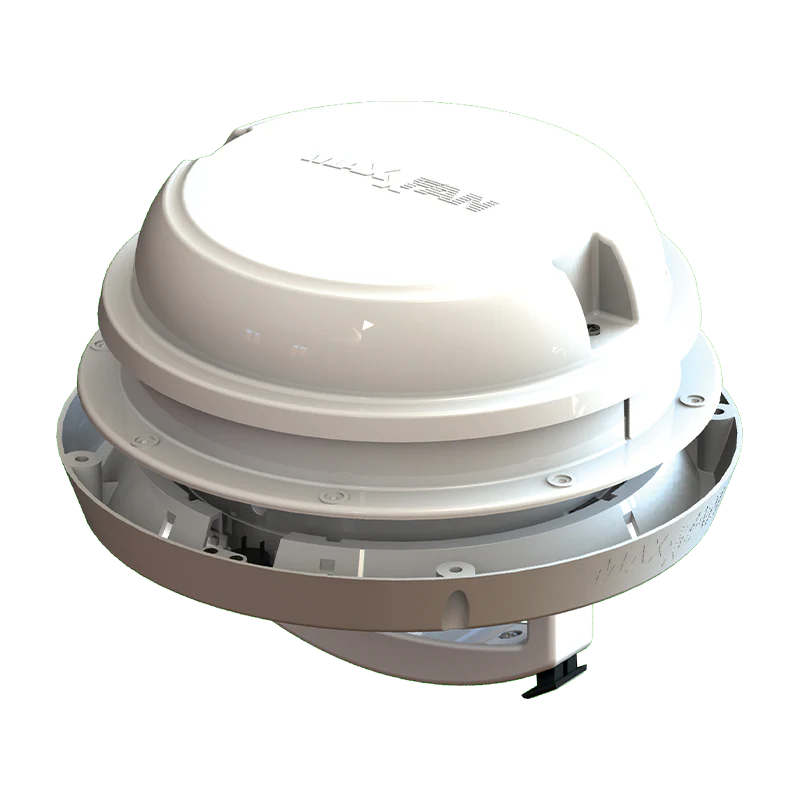

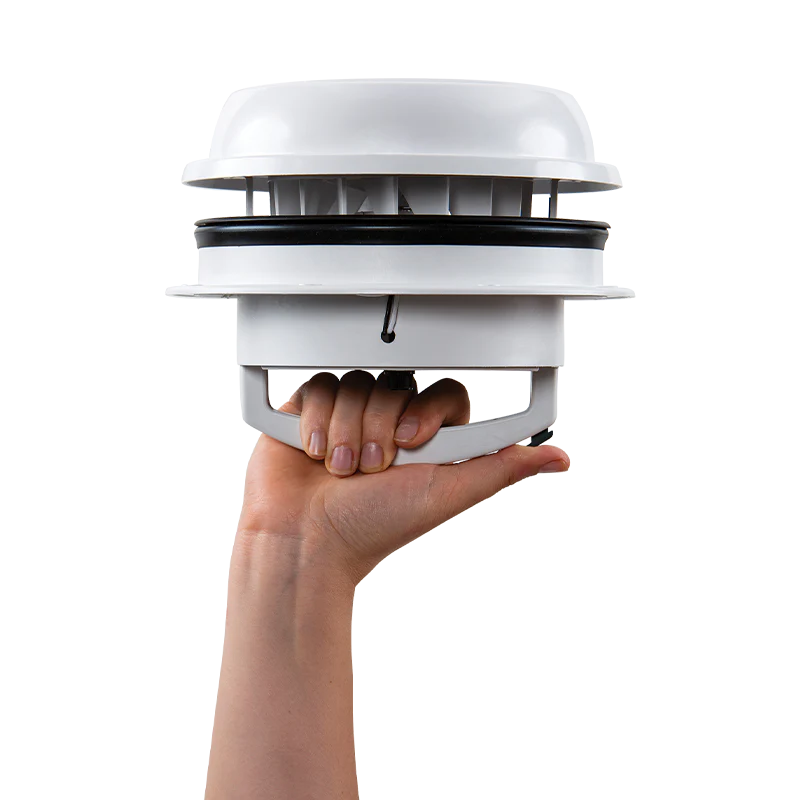

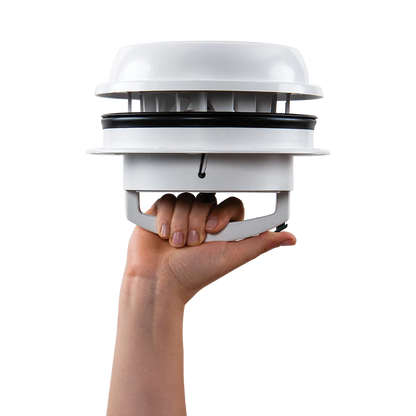

The Maxxfan Dome Plus (00-03810W) is a 6-inch diameter exhaust-only fan designed for rooftop or sidewall installation. Its push-button manual lid opens and locks with one hand, no cranking required. The cool-white LED trim ring around the fan guard illuminates the space below so the vent doubles as a bathroom light. The fan and LED are independently switched so you can have just the light, just the fan, or both. An extension sleeve is included in the box, making it compatible with roof thicknesses from 25mm up to 152mm (6") without additional hardware. Screens are removable for easy cleaning.

Best suited for small ventilation areas — for main living area ventilation, see the Maxxfan Deluxe with its 900+ CFM output and powered rain dome.

Specifications

• Model: 00-03810W

• Colour: White

• Fan diameter: 6 inch (150mm)

• Cutout size: 6.25" (159mm) round

• Fan type: Exhaust only, 12V DC

• Airflow: 200 CFM

• Fan speeds: 1

• Lid operation: Manual push-button

• Roof thickness: 25mm (1") to 152mm (6") — extension sleeve included

• Installation: Rooftop or sidewall

• Lighting: Integrated cool-white LED trim ring

• Includes: Fan guard, LED trim ring, extension sleeve, mounting hardware

• Controls: Separate ceiling switches for fan and LED

Downloads

Maxxfan Deluxe Brochure — All Models and Features

View full details

People are asking

Is the Maxxfan Dome Plus suitable for a campervan bathroom or shower?

Yes — that is exactly what it is designed for. The 6-inch exhaust fan removes steam and moisture from small spaces like campervan bathrooms, wet rooms, and shower cubicles. The integrated rain shield means you can run it with the lid open even in wet weather, and the LED light makes it a practical dual-purpose fitting.

Can I use the fan and the LED light independently?

Yes. The fan and LED light are controlled by separate switches at the ceiling, so you can run either or both independently. This is useful when you just want the bathroom light on without running the fan, or want the fan extracting while you are not in the room.

What size cutout does the Maxxfan Dome Plus need?

The Maxxfan Dome Plus requires a 6.25-inch (159mm) round cutout in the roof or wall. This is much smaller than the 356mm x 356mm opening needed for the Maxxfan Deluxe, making it ideal for tight spaces where a larger vent won't fit.
