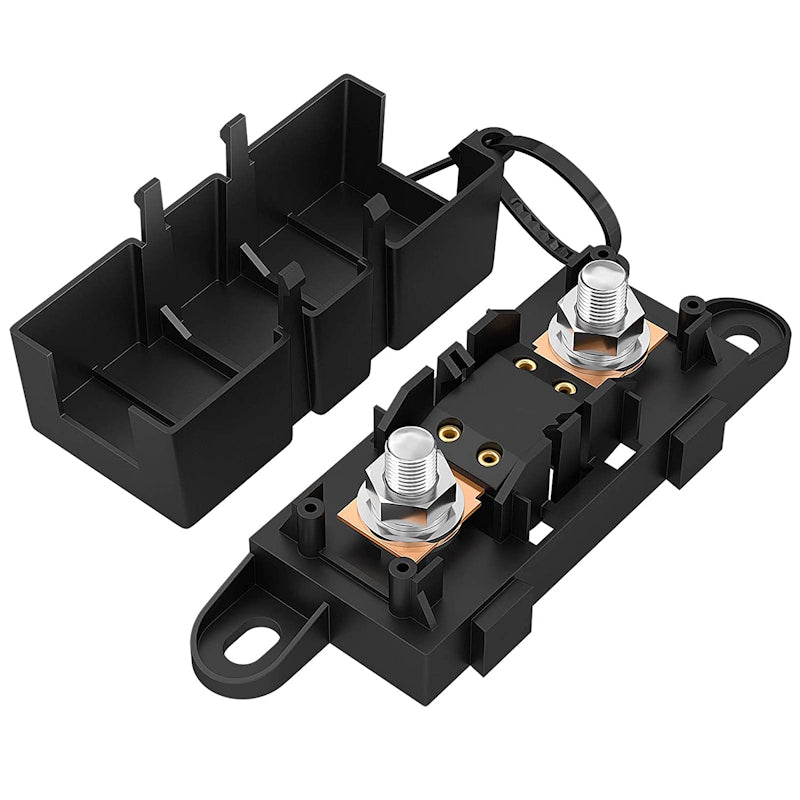

Modular Mega Fuse Holder

Modular Mega Fuse Holder

Stackable Mega Fuse Holder

Regular price $18.00 NZD
Regular price Sale price $18.00
Sale Sold out
  • 500A max, up to 32V DC
  • M8 studs with protective cover
  • Interlocking sides for multi-fuse blocks
View full details

Description

The MEGA fuse holder is available for systems up to 32 volts DC, rating current max is 500A and accepts 5/16″ (M8) terminal stud sizes.

Interlocking pins on the sides of the fuse holder let you connect additional MEGA fuse holders to create a multi-fuse block.





  • Product Size

The dimensions of the fuse holder are 126*37.5*43.5 mm (L*W*H), with a spacing of 51 mm between the two holes, and is suitable for connecting 5/16″ (M8) ring terminals.

  • High Quality

This fuse box is made of high-quality rubber and metal and is strong, durable, flame retardant, and heat resistant.

  • Protective Cover

This automotive fuse box comes with a protective cover.

  • Widely Application

It is suitable for ANM (MEGA) fuses, which are widely used in automotive electronics, household appliances, medical electronics, industrial equipment, lighting fixtures, and communication equipment.

  • Max Current Rating 500A
  • Fuse Type - Mega
  • Ingress Protection- Dust
  • Input and output Terminals - M8 Stud
  • M6 Mounting holes
