SKU: EL046

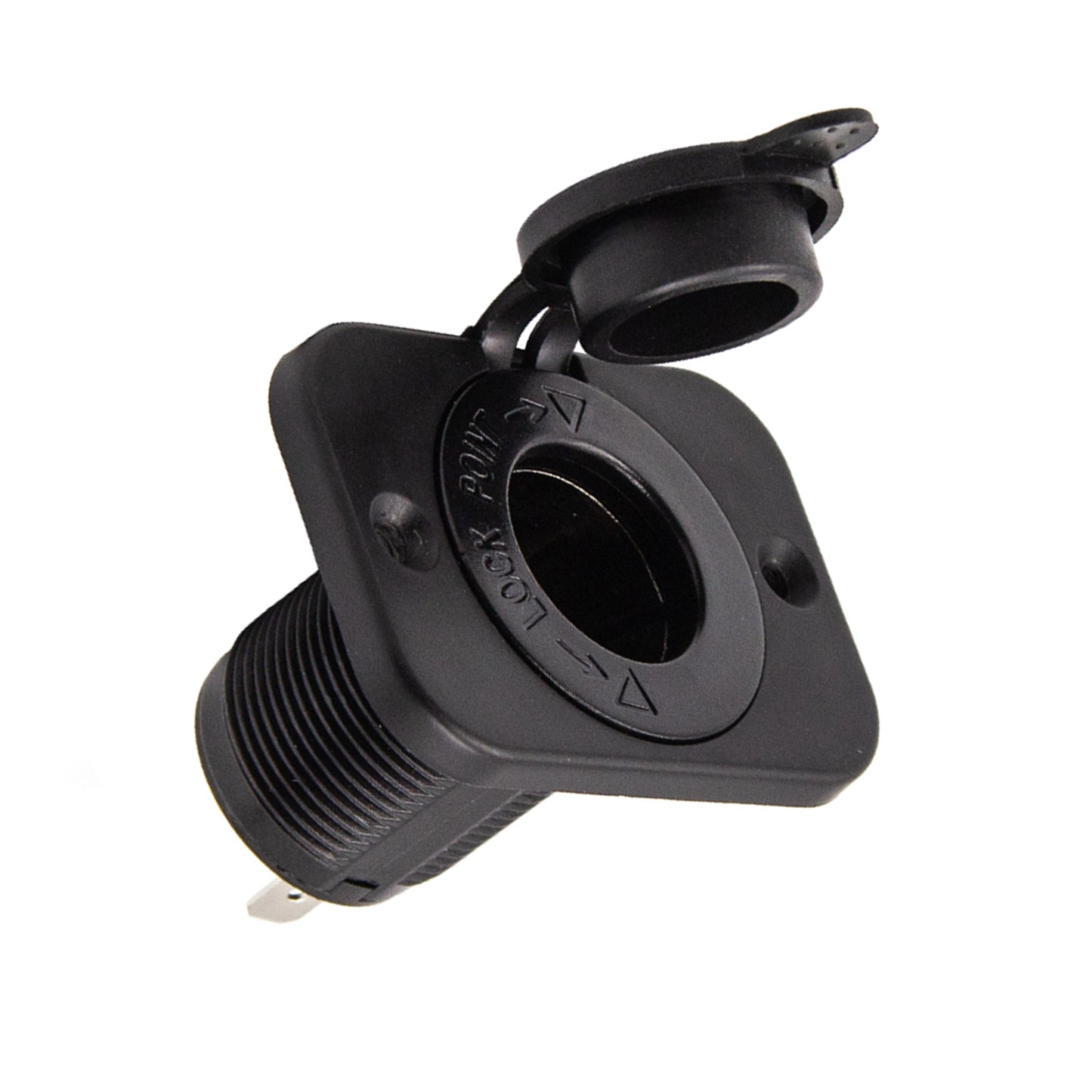

Mounted 12v Power Socket

Mounted 12v Power Socket

Marine Grade 12V Accessory Socket

Regular price $12.00 NZD
Regular price Sale price $12.00
Sale Sold out
  • 10A rated panel-mount 12V socket
  • Brass terminals, UV-resistant body
  • Weatherproof rubber cover
View full details

Description

A solid, marine-grade 12V panel-mount socket for your van dashboard or cabinetry. Brass terminals, UV-resistant body, and a weatherproof rubber cover make it more durable than cheap alternatives — a reliable everyday access point for 12V accessories and chargers.

Benefits:
• Marine-grade construction handles moisture and vibration better than automotive alternatives.
• Rubber weatherproof cover keeps dust and moisture out when not in use.
• Brass internal terminals for strong conductivity and corrosion resistance.
• Accepts all standard 12V cigarette lighter-style plugs.
• 10A rated — suits USB chargers, fans, portable fridges, and 12V accessories.
• Panel-mount design gives a flush, integrated finish.

Features:

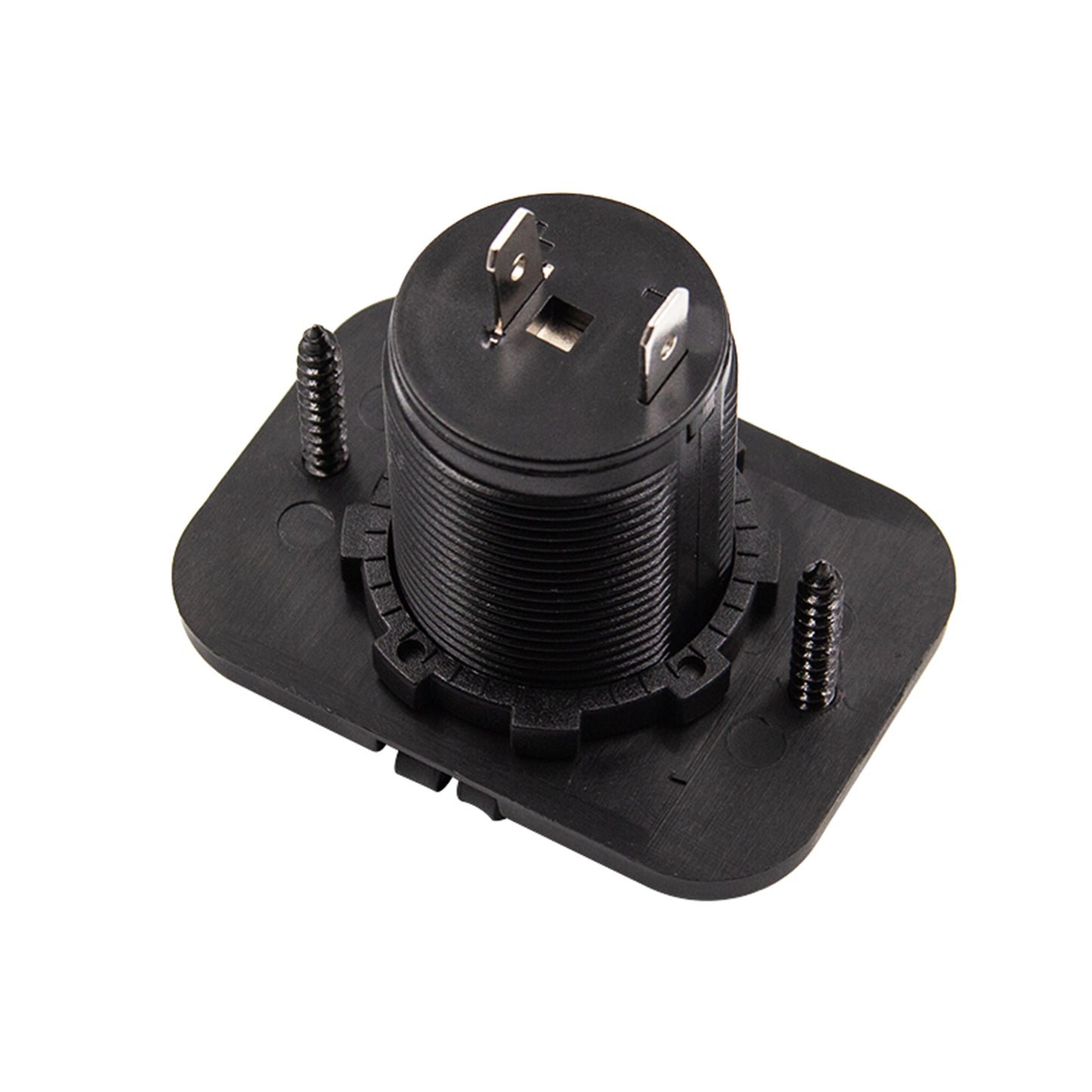

Requires a round cutout in your panel or dashboard — the socket drops in and the bezel holds it flush. Connect to a fused circuit on your fuse block (10A fuse recommended). UV-resistant plastic body resists fading and brittleness over years of use. Compatible with most 12V lighter-style plugs and accessories.

For surface mounting without a cutout, see the Surface Mount Power Socket. For USB charging, add the Narva USB-A / USB-C Socket.

Specifications


• Rated for 12V up to 10A.

• Marine-grade corrosion-resistant terminals.

• Accepts standard cigarette lighter plugs.

• Includes protective rubber cap.

• Mounts into panels or dashboards.

• Internal brass contact points for conductivity.

• Panel cut-out size: approx. 28mm diameter.

• Compatible with most camper van electrics.

People are asking

What is the difference between this socket and the surface mount version?

This panel-mount socket requires a round cutout hole in your panel or cabinet face — the socket drops in and the bezel holds it flush. The surface mount version sits on top of the surface without a cutout. Panel mount gives a cleaner, more integrated look; surface mount is easier to install without tools.

Can I charge a fridge or pump from this socket?

This socket is rated 10A, which is sufficient for USB chargers, phone chargers, small LED strip controllers, and 12V accessories. For a compressor fridge (which can draw 4-8A) it's fine as a temporary connection, but a fridge should ideally have its own dedicated fused circuit wired directly from your fuse block rather than through a socket.

Does this socket fit standard 12V lighter plugs?

Yes. It accepts standard 12V cigarette lighter-style plugs, which are the most common plug type for 12V accessories including portable fans, tyre inflators, and power inverters. Pair it with a dual USB charger plug for convenient device charging at any point in your van.
