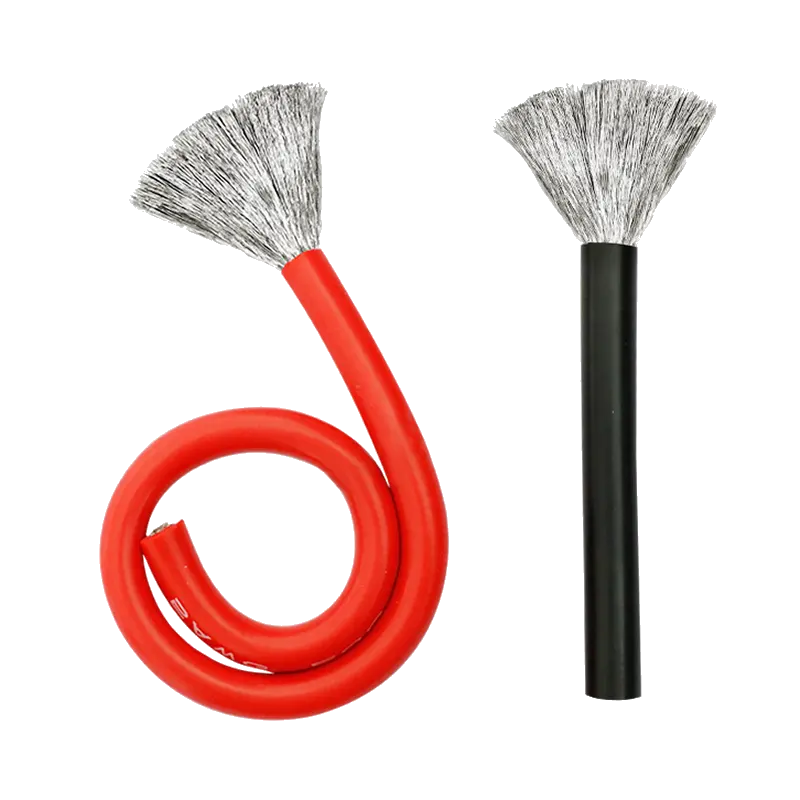

Silicone Insulated Flexible DC Cable 16mm2 / 6AWG

Sold Per meter

• High quality 140amp flexible cable
• Silicone sheath 200degC
• Multi Stranded Tinned Copper
• 3,200 stands of 0.08mm2
• Conductor total diameter 5.6mm
• Insulation Thickness 1.45mm
• Total outer Diameter 8.5mm
• Conductor Resistance 1.13 Ω/KM20°c
• Rated Voltage 600V

Cable Current Ratings — Important Note

The current ratings shown on this page are the manufacturer's maximum ratings based on a single conductor run in open air with adequate ventilation. In real-world installations, actual safe current capacity will be lower depending on factors such as cable bundling, enclosure type, ambient temperature, and run length. All installations in New Zealand and Australia must comply with AS/NZS 3008 derating requirements. Always consult a licensed electrician to determine the correct cable size for your specific installation.
