Projecta SMART BATTERY MONITOR

Projecta SMART BATTERY MONITOR

SKU: PRO001

$376.00
$376.00
Sale Sold out
GST included.

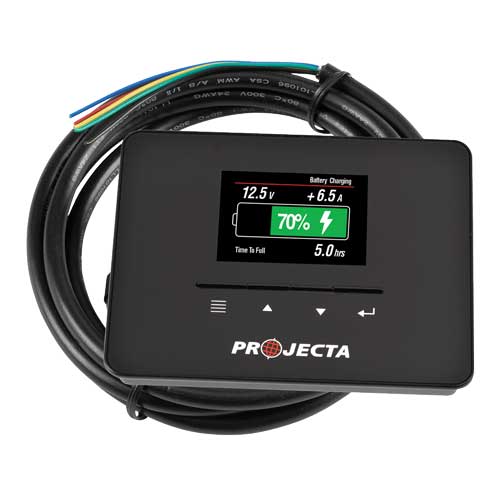

A sophisticated, full colour LCD monitor that accurately displays a battery’s total capacity, overall health and general status. Ideal for camper trailer and caravan interiors. 2.4" colour high intensity LCD screen displays: predicted state of charge, battery health, time to full charge and time to empty. Installation kit includes 500 Amp shunt and terminals for professional installation. Easy to use and navigate buttons provide the user total control and the ability to program low battery capacity and battery health alarms. Supplied with 1.5m pre-wired harness with 4 pin connector into the rear of the unit. A separate terminal block provides a further wiring option. Easy and secure surface mount installation via supplied ‘click-fit’ mounting bracket enabling fixture to any surface.

View full details

People are asking

Why should I fit a battery monitor?

Voltage alone is a poor indicator of how much charge is left, especially with lithium batteries which hold a flat voltage for most of their capacity. A shunt-based battery monitor shows your true state of charge, current draw and time remaining so you never get caught out off-grid.

How is a battery monitor installed?

The shunt is fitted in the main negative cable directly at the battery, and every load and charge source must pass through it to be measured accurately. The display or Bluetooth module then connects to the shunt - a straightforward job during a campervan electrical fit-out.

Does a battery monitor work with lithium batteries?

Yes. Set the battery capacity and chemistry in the monitor's settings and it will track state of charge accurately for lithium, AGM, gel or lead-acid banks.
