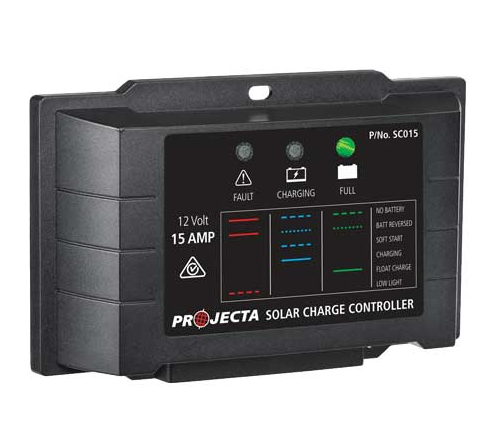

Projecta SOLAR CONTROLLER 15A 12V 4 STAGE

Projecta SOLAR CONTROLLER 15A 12V 4 STAGE

SKU: SL002

$114.00
$114.00
Sale Sold out
GST included.

Keep your battery healthy and solar setup sorted with the Projecta 15A 12V 4-Stage Solar Controller. Built for rugged off-grid use, it’s a smart pick for any campervan conversion looking for reliable, efficient charging without the hassle. Designed to handle New Zealand’s varied conditions, this compact unit manages your solar input with ease.

Benefits:
• Protects your battery from overcharging or draining.
• Perfect for campervan conversions with compact electrical systems.
• Works with AGM, Gel, Wet, and Calcium batteries.
• Intuitive LED indicators keep you informed at a glance.
• Designed for outdoor and off-grid use with durable housing.
• Boosts the lifespan and performance of your 12V system.

Features:
The Projecta 15A Solar Controller uses a 4-stage charging algorithm to maximise battery life and optimise charging across different battery types. Whether you’re running a compact weekend van or a full off-grid setup, it maintains safe and efficient solar flow to your 12V battery. Simple LED indicators let you know what’s happening with just a glance, and the built-in protection against overloads, short circuits, and reverse polarity means peace of mind when you’re miles from anywhere. Mount it close to your battery or in your electrical hub for easy integration into any camper fit-out.

Specifications


• 15 Amp maximum current.

• 12V battery systems only.

• Compatible with AGM, Gel, Wet, and Calcium batteries.

• 4-stage charging: Bulk, Absorption, Float, Equalisation.

• LED indicators for charge and battery status.

• Built-in protection for short circuit, overcharge, reverse polarity.

• Dimensions: 180mm x 110mm x 50mm.

• Operating temperature: -10°C to 50°C.

Downloads

Solar manual

View full details

People are asking

What does a solar controller do in a campervan system?

A solar controller (charge controller) regulates the voltage and current from solar panels to safely charge your leisure battery. Without one, solar panels would overcharge and damage the battery. The Projecta 15A controller suits panels up to around 200W on a 12V system.

Is this a PWM or MPPT solar controller?

The Projecta Solar Controller 15A is a PWM (Pulse Width Modulation) controller, which is a reliable and cost-effective option for smaller systems. If you have a larger panel array or want maximum efficiency, consider the Projecta PM335C which includes a built-in 30A MPPT controller.

What size solar panel suits the Projecta 15A controller?

At 15A on a 12V system, the controller handles up to around 180W of solar input. A single 120W or 160W panel is an ideal match. Exceeding the rated input current will damage the controller, so always check panel short-circuit current (Isc) against the controller spec.
