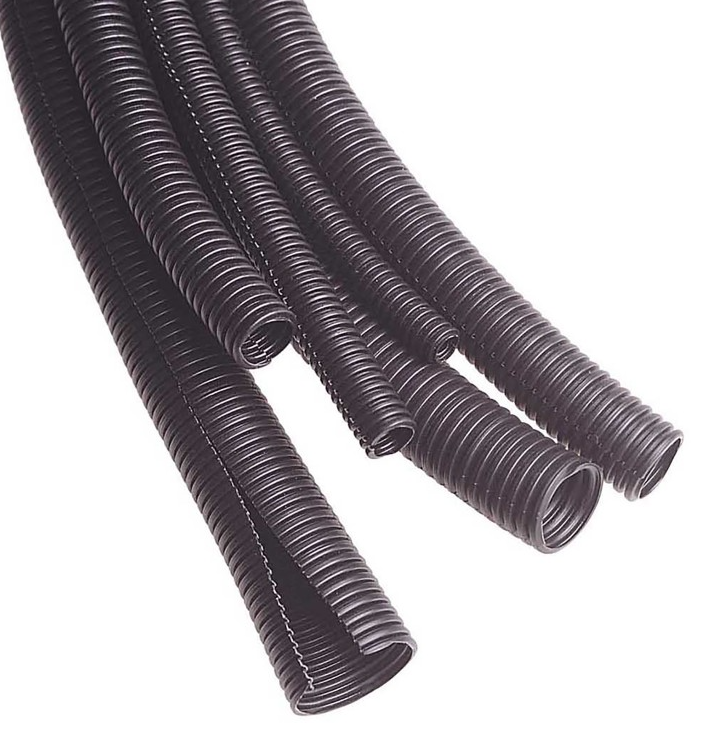

Split Corrugated Sleeve 10mm x 10m

Split Corrugated Sleeve 10mm x 10m

SKU: MF052

$17.50
$17.50
$1.75 m
Sale Sold out
GST included.

Wrap and protect your finished wiring loom without unplugging a single connector — genuine Narva split sleeve in a full 10 metre roll.

Benefits:
• Split along its full length — slips over existing looms, so it's ideal for tidying wiring after circuits are terminated.
• Protects cables from chafe, stone chips and sharp panel edges — the main causes of 12V faults in vans.
• UV-resistant and fire-retardant polypropylene — safe for engine bays, under-chassis and exterior runs.
• Gives exposed wiring a clean, professional factory-loom look.
• 10 metre roll covers a whole van fitout — cut what you need, no waste.
• Genuine Narva quality — the standard for automotive electrical in NZ.

Features:
Black split corrugated sleeving (Narva 56710), 10mm tube size with a 9.7mm internal diameter, supplied as a 10 metre roll. Operating temperature approximately -20°C to +90°C. Simply part the split, press the loom in, and the corrugations spring closed around the cables — add a cable tie at each end for high-vibration runs.

For larger bundles, twin sheath or battery cable, use the 13mm size.

Perfect for tidying the runs from your 12-Way Fuse Block or 16-Way Busbar.

Specifications

• Tube size: 10mm
• Internal diameter: 9.7mm
• Length: 10 metre roll
• Material: UV-resistant, fire-retardant polypropylene
• Colour: Black
• Operating temperature: approx. -20°C to +90°C
• Part number: Narva 56710
• Style: Split along full length for retrofit installation

View full details

People are asking

What's the difference between split sleeve and regular conduit?

Split sleeve is slit along its full length, so you can wrap it around an existing loom without disconnecting anything. That makes it perfect for tidying and protecting wiring after the circuits are already terminated - no pulling cables through like you would with solid conduit.

Can I use it in the engine bay or under the van?

Yes - it's made from UV-resistant, fire-retardant polypropylene with an operating range of roughly -20°C to +90°C, so it handles engine bays, under-chassis runs and exterior cable routes where wiring needs protection from heat, stone chips and abrasion.

What cables fit inside the 10mm sleeve?

The 10mm sleeve has a 9.7mm internal diameter - enough for a handful of standard 12V wires or a single heavier cable. If you're bundling twin sheath with several accessory wires, or running larger battery cable, step up to the 13mm size.
