SKU: EL062

Panel Mount 12v Switch - Blue

Panel Mount 12v Switch - Blue

12V Blue LED On/Off Switch

Regular price $8.00 NZD
Regular price Sale price $8.00
Sale Sold out
  • 10A at 12V DC, SPST on/off
  • Blue LED ring shows circuit is live
  • Snap-fit into 20mm panel hole
View full details

Description

A simple, reliable on/off switch for any 12V circuit in your van. The blue LED ring glows when switched on — easy to find at night, easy to install, and rated for the loads you’ll actually throw at it.

Benefits:

• Blue LED indicator lights up when the circuit is active — no guessing in the dark

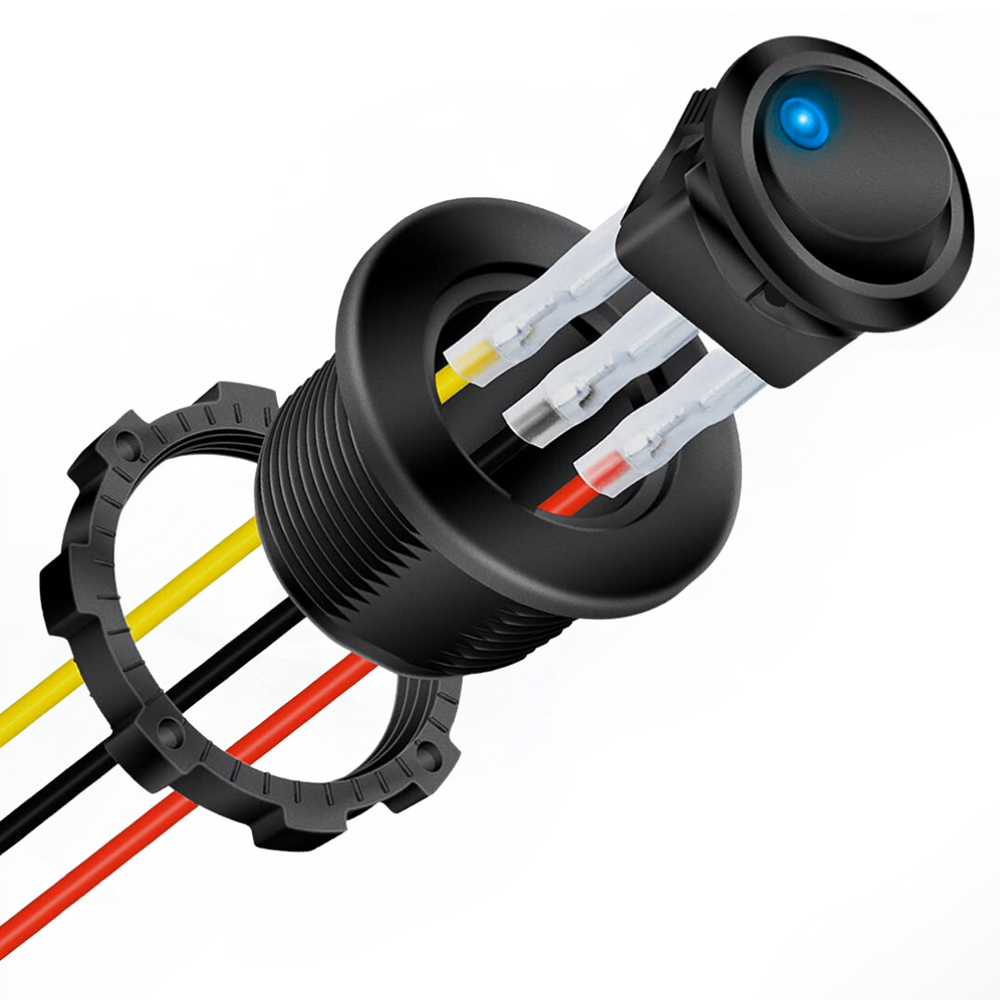

• Snap-fit round housing keeps wiring tidy and protected behind the panel

• 10A rating handles LED lighting, water pumps, fans and most 12V accessories

• 20mm mounting hole — fits standard panel cutouts

• SPST (on/off) — simple, reliable, no confusion

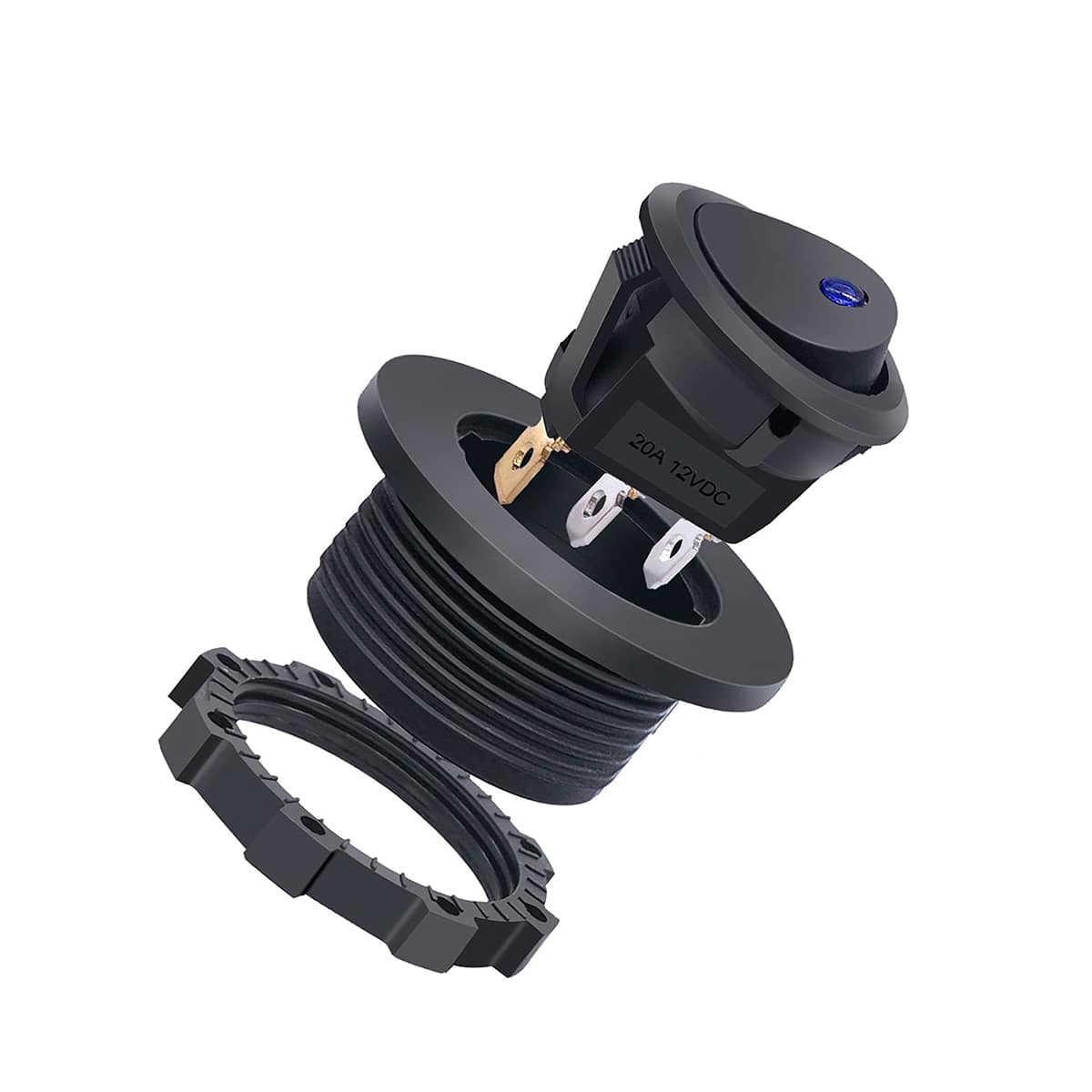

• Snap-fit shell included for clean, protected installation

Features:

This is a 12V SPST rocker switch with a built-in blue LED indicator — the most common switch type in campervan builds. SPST means single pole, single throw: one input, one output, simple on/off. The LED has a separate ground pin (3 pins total) which lights up blue when the circuit is closed, giving you instant confirmation the circuit is live. The 20mm snap-fit body presses into a standard 20mm panel hole — no tools needed, just push and click. Rated 10A at 12V DC, it comfortably handles LED strips, fans, USB chargers, water pumps and similar loads. Pair it with our 12 Way Fuse Block for a clean, organised 12V distribution setup, or use our Control Switch Panel if you want multiple switches and a voltmeter in one unit.

Suits campervan conversions, motorhomes, caravans, boats and off-grid setups.

Specifications

• Type: SPST (Single Pole, Single Throw) — On/Off
• Voltage: 12V DC
• Current rating: 10A
• LED colour: Blue
• Mounting hole: 20mm

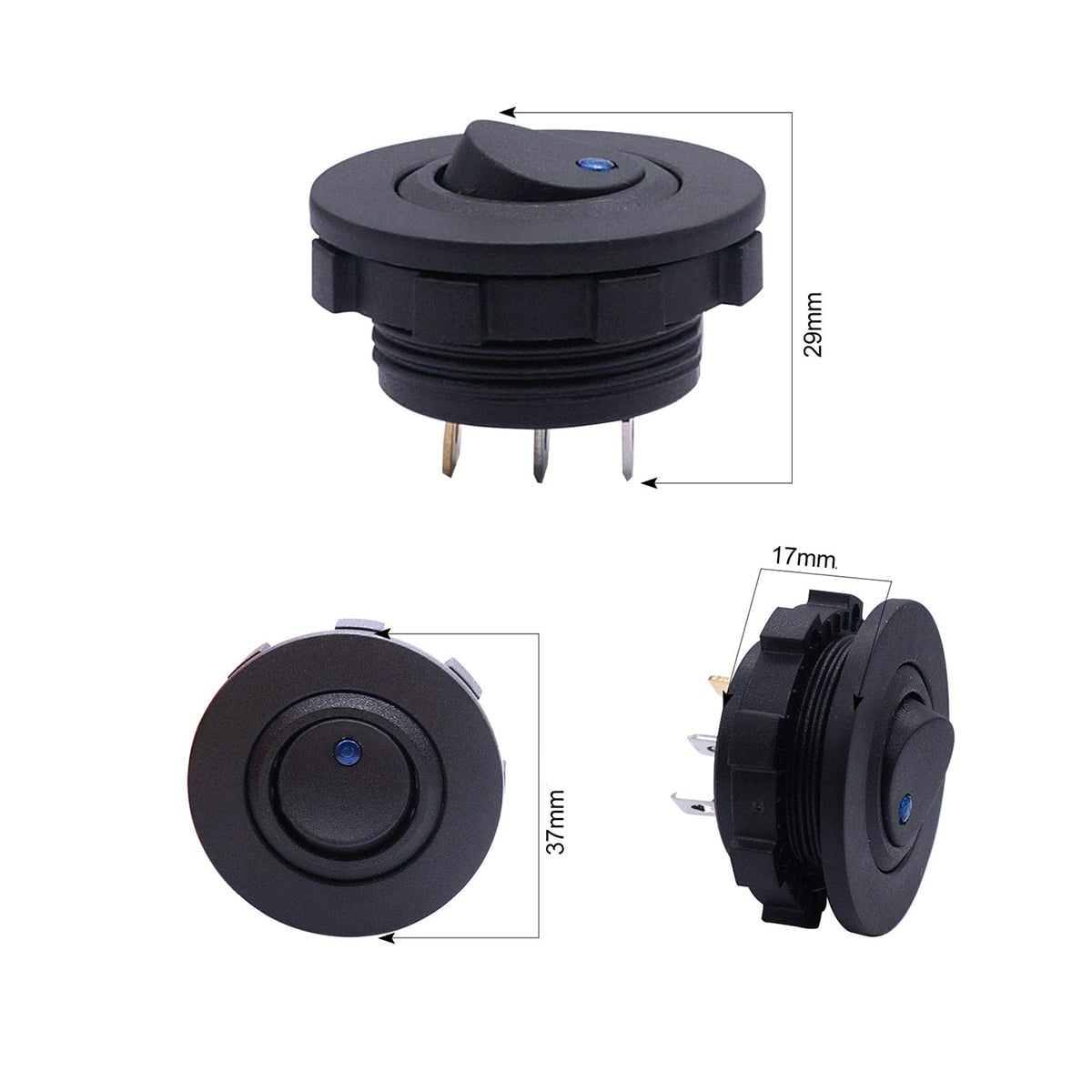

• Housing diameter: ~25mm
• Pins: 3 (load +, load −, LED ground)

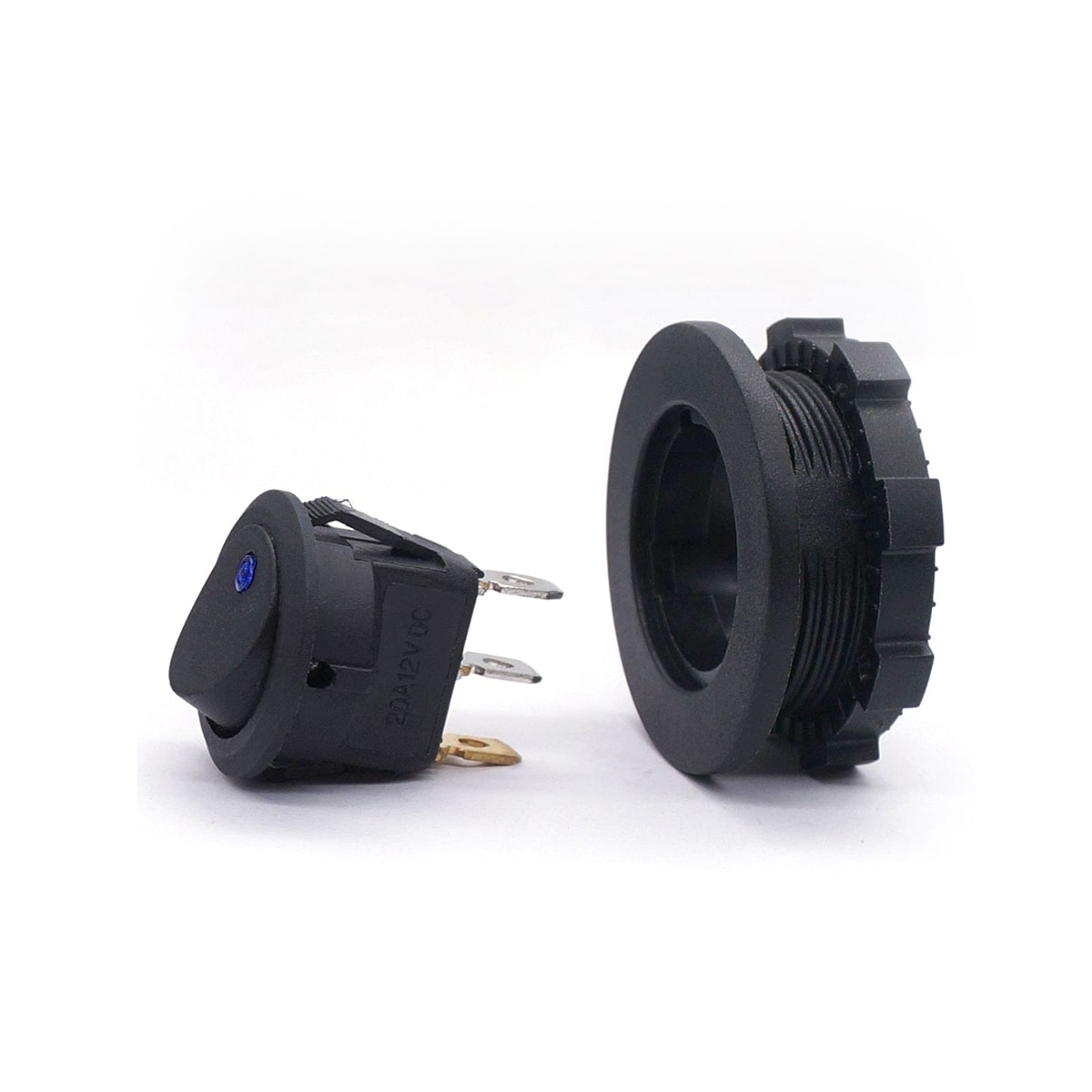

• Includes: switch and snap-fit shell housing

Downloads

People are asking

What’s the difference between SPST, SPDT and DPST?

SPST (this switch) is simple on/off for one circuit. SPDT switches between two circuits. DPST controls two circuits simultaneously. For most campervan lighting and accessories, SPST is what you need.

How many amps can this switch handle?

10A at 12V DC — suitable for LED lighting, fans, water pumps and most 12V accessories. For higher load circuits, use a relay.

What size hole do I need to mount this?

20mm diameter. The snap-fit body clicks straight in — no screws needed.

Why does it have 3 pins if it’s a simple on/off switch?

The third pin is the negative/ground for the blue LED indicator. Connect it to ground and the LED lights up when the switch is on. See this wiring guide if you need help.
