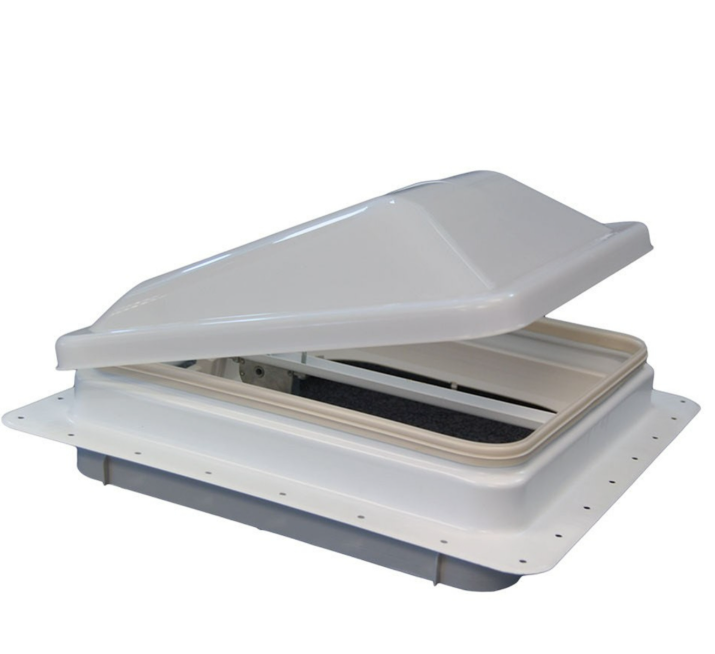

Ventline 360 x 360mm Roof Vent - White Dome

Ventline 360 x 360mm Roof Vent - White Dome

SKU: VT021

$145.00
$145.00
Sale Sold out
GST included.

A solid, no-nonsense manual roof vent that fits the standard 360 x 360mm (14" x 14") opening used across most NZ caravans, motorhomes, and van conversions. Metal frame, white polypropylene dome, built-in flyscreen, and a wind-up lid — everything you need for reliable passive ventilation, with no fan required.

Benefits:
• Fits standard 360 x 360mm (14" x 14") roof opening — direct replacement for Elixir and Hengs vents.
• Extra-strong galvanised steel mounting flange resists rust and flexing over time.

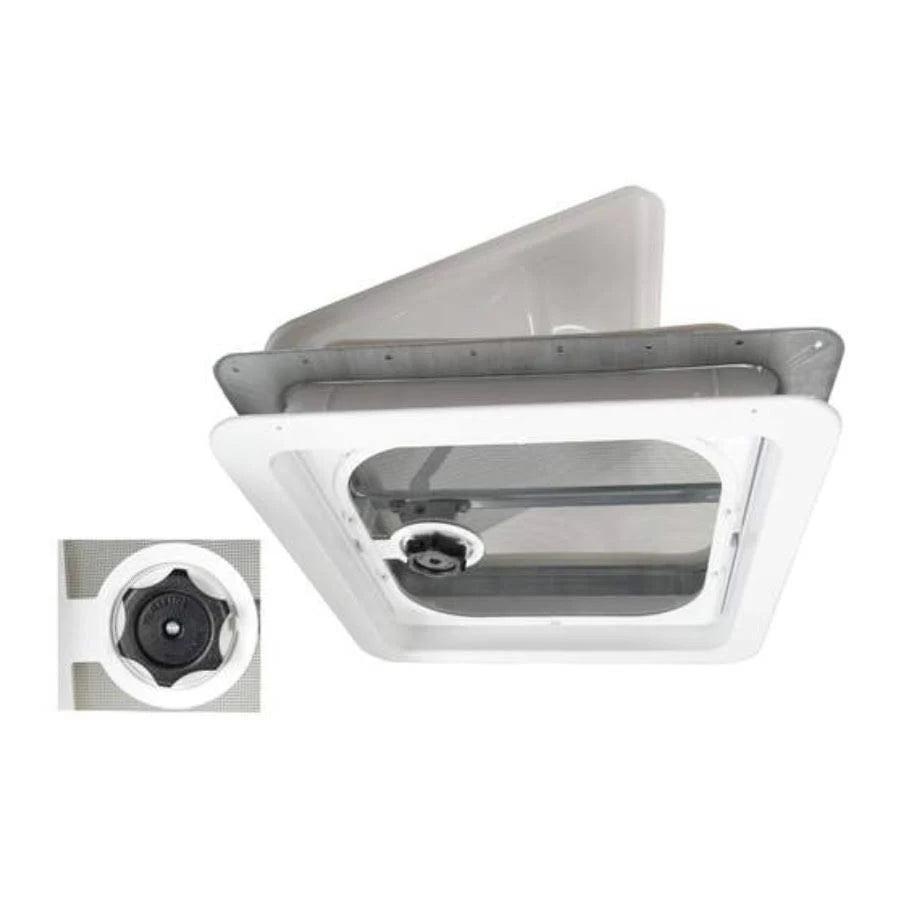

• Built-in removable flyscreen — ventilate without letting insects in.
• Telescopic interior garnish trim adjusts to suit roof thicknesses from 25-95mm.
• Wind-up lid opens and closes independently of the screen.
• Bulb weatherstrip provides a complete rain and wind seal when closed.

Features:
The Ventline uses a galvanised white powder-coated steel mounting flange for strength and corrosion resistance. The radius corner screen frame design improves structural rigidity and makes the screen easy to remove for cleaning. The long-lasting polypropylene white dome resists UV and won't yellow over time. A telescopic interior garnish (included) is trimmed to suit your exact roof thickness — no extra fittings required. This vent is interchangeable with Elixir and Hengs 14" x 14" vents, making it a straightforward replacement if an existing vent has cracked or failed.

For powered ventilation, see the Maxxfan Deluxe. For a smaller passive vent, see the Mushroom Roof Vent.

Specifications

• Cutout size: 360 x 360mm (14" x 14")
• Frame: Galvanised white powder-coated steel
• Dome: White polypropylene
• Lid: Wind-up manual
• Flyscreen: Removable, radius corner design
• Weatherstrip: Bulb seal
• Interior trim: Telescopic garnish (included)
• Roof thickness: 25-95mm
• Interchangeable with: Elixir, Hengs 14" x 14" vents

View full details

People are asking

What size roof cutout does the Ventline 360 x 360 need?

The Ventline requires a 360mm x 360mm (14" x 14") cutout — the same standard size used by Elixir, Hengs, and most NZ caravan and motorhome roof vents. This makes it a direct replacement for other 14" x 14" vents without modification to your roof opening. Roof thickness compatibility is 25-95mm.

Does the Ventline vent have a flyscreen?

Yes. A removable flyscreen is built into the frame to keep insects out while the vent is open. The radius corner screen frame design makes the screen easy to remove and clean. The wind-up lid mechanism opens and closes the dome independently of the screen.

Is this vent suitable as a replacement for an existing 14" x 14" caravan vent?

Yes. The Ventline 360 x 360mm is interchangeable with Elixir and Hengs 14" x 14" vents, which are the most common size found in NZ caravans and motorhomes. If your existing vent has failed or cracked, this is a direct drop-in replacement using the same roof opening. The telescopic garnish trim adjusts to suit different roof thicknesses from 25-95mm.
