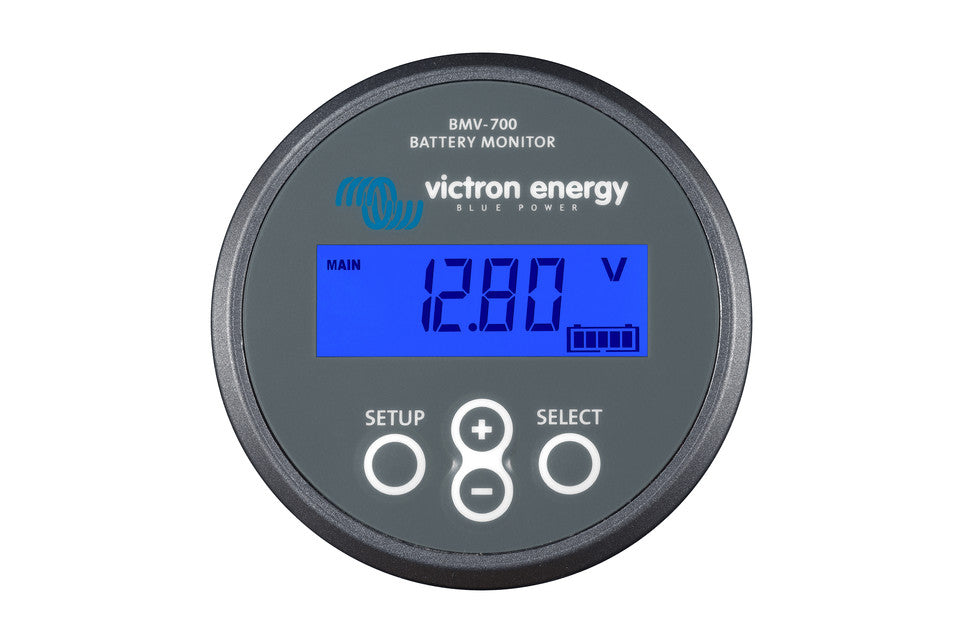

• A digital display of the Victron Energy Battery Monitor BMV-700 showing battery voltage and power metrics.
  • Victron Energy Battery Monitor BMV-700
  • Victron Energy Battery Monitor BMV-700
  • Victron Energy Battery Monitor BMV-700
  • Victron Energy Battery Monitor BMV-700
1 5

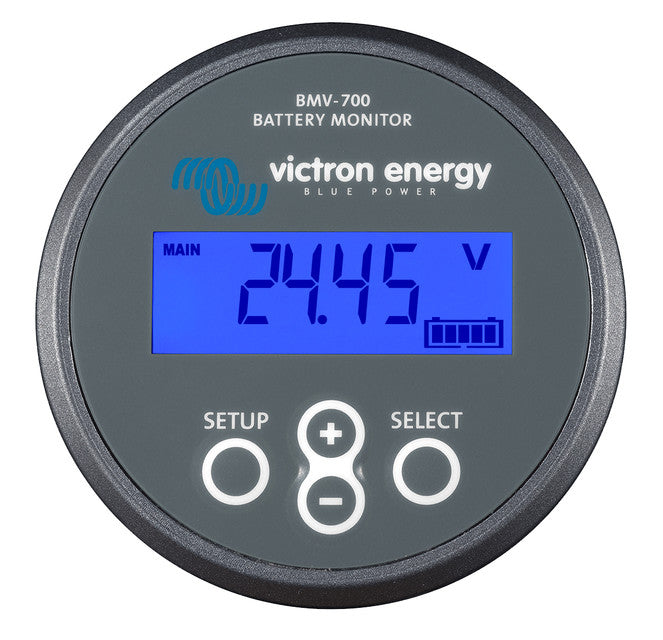

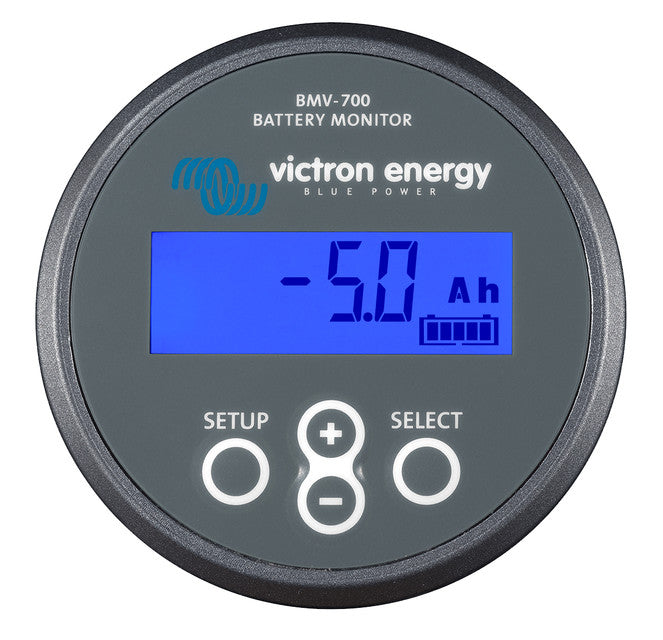

Victron Energy Battery Monitor BMV-700

Victron Energy Battery Monitor BMV-700

SKU: EL034

$299.99
$299.99
Sale Sold out
GST included.

Here at VANLIFER we use these for many of our campervan builds.

The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.

Features:

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed

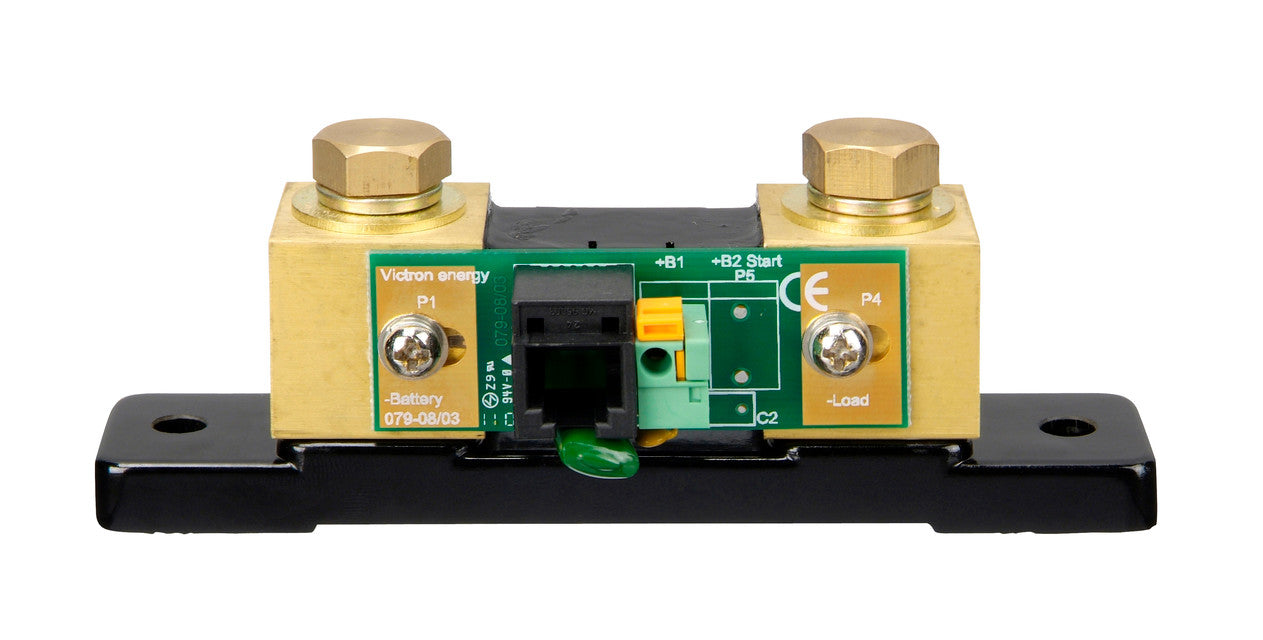

  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10,000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6.5 – 95V
  • High current measurement resolution: 10 mA (0.01A)
  • Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V

Specifications

  • Supply voltage range: 6.5 - 95 VDC
  • Current draw, back light off: < 4mA
  • Input voltage range, auxiliary battery: N/A
  • Battery capacity: 1-9999 Ah
  • Operating temperature range: -40 +50°C (-40 - 120°F)
  • Measures voltage of second battery, or temperature, or midpoint: No
  • Temperature measurement range: -20
  • VE.Direct communication port: Yes
  • Relay: 60V / 1A normally open (function can be inverted)
  • Installation: Flush mount
  • Front: 63mm diameter
  • Front bezel: 69 x 69 mm (2.7 x 2.7 inch)
  • Shunt connection bolts: M10 (0.3937 inch)
  • Body diameter and depth: 52 mm (2.0 inch) and 31 mm (1.2 inch)
  • Protection category: IP55 (not intended for outdoor use)
  • Cable: 10m 6 core
