Projecta 500A BLUETOOTH BATTERY MONITOR

Projecta 500A BLUETOOTH BATTERY MONITOR

Bluetooth Battery Monitor With Shunt

Regular price $690.00 NZD
Regular price Sale price $690.00
Sale Sold out
  • Measures current up to 500A
  • Works with 12V, 24V or 48V batteries
  • Android and iOS app via Bluetooth
View full details

Description

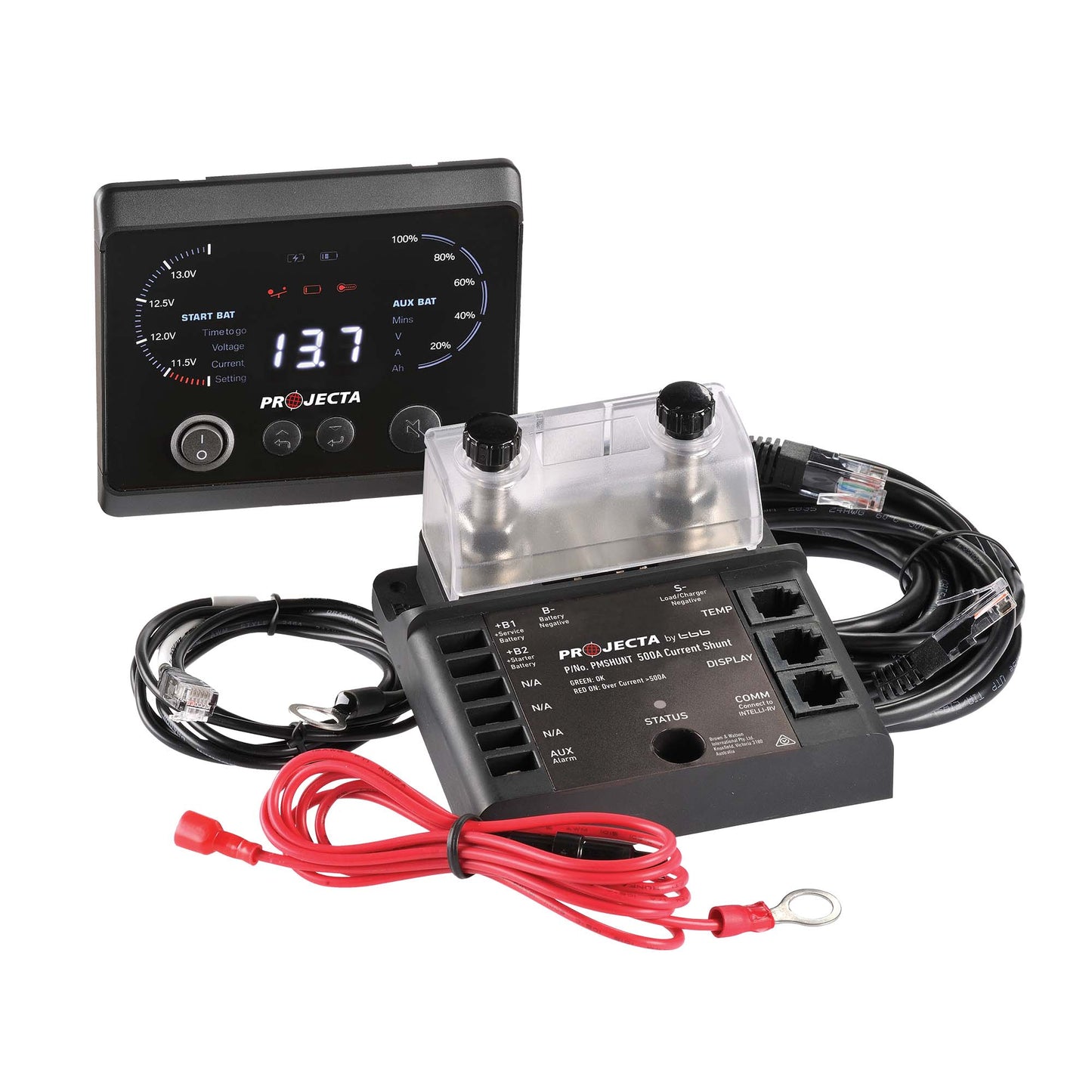

A clever combination of a smart shunt with an informative display and Bluetooth connectivity, the system displays critical primary and secondary battery information. Ideal for camper trailers, caravans, 4WD canopies and boats. Key features include the ability to control and monitor via Bluetooth, an easy-to-read display, easy fitment, multi-chemistry compatible (AGM. Gel, Lithium). Kit includes shunt, monitor and cables. Rated to measure current up to 500A. Compatible with 12V DC, 24V DC or 48V DC batteries. Compatible with AGM, GEL, WET and Lithium batteries. Built-in Bluetooth allows users to connect to BM500-BT via Andriod or iOS app. Contact ratings 2A@30V DC or 0.5A@125V AC. Measurement accuracy: Current: +/- 0.4%, Voltage: +/-0.3%. Supports CAN and RS485.

People are asking

Why should I fit a battery monitor?

Voltage alone is a poor indicator of how much charge is left, especially with lithium batteries which hold a flat voltage for most of their capacity. A shunt-based battery monitor shows your true state of charge, current draw and time remaining so you never get caught out off-grid.

How is a battery monitor installed?

The shunt is fitted in the main negative cable directly at the battery, and every load and charge source must pass through it to be measured accurately. The display or Bluetooth module then connects to the shunt - a straightforward job during a campervan electrical fit-out.

Does a battery monitor work with lithium batteries?

Yes. Set the battery capacity and chemistry in the monitor's settings and it will track state of charge accurately for lithium, AGM, gel or lead-acid banks.
