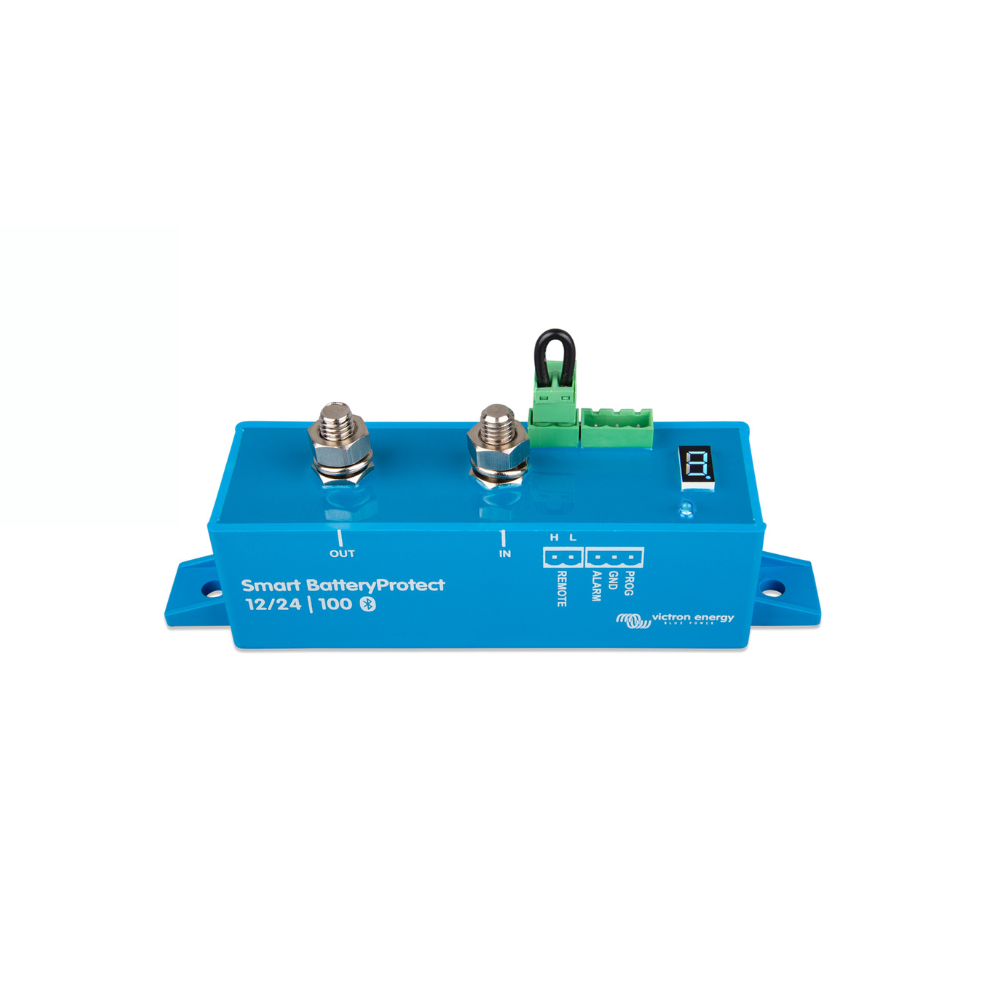

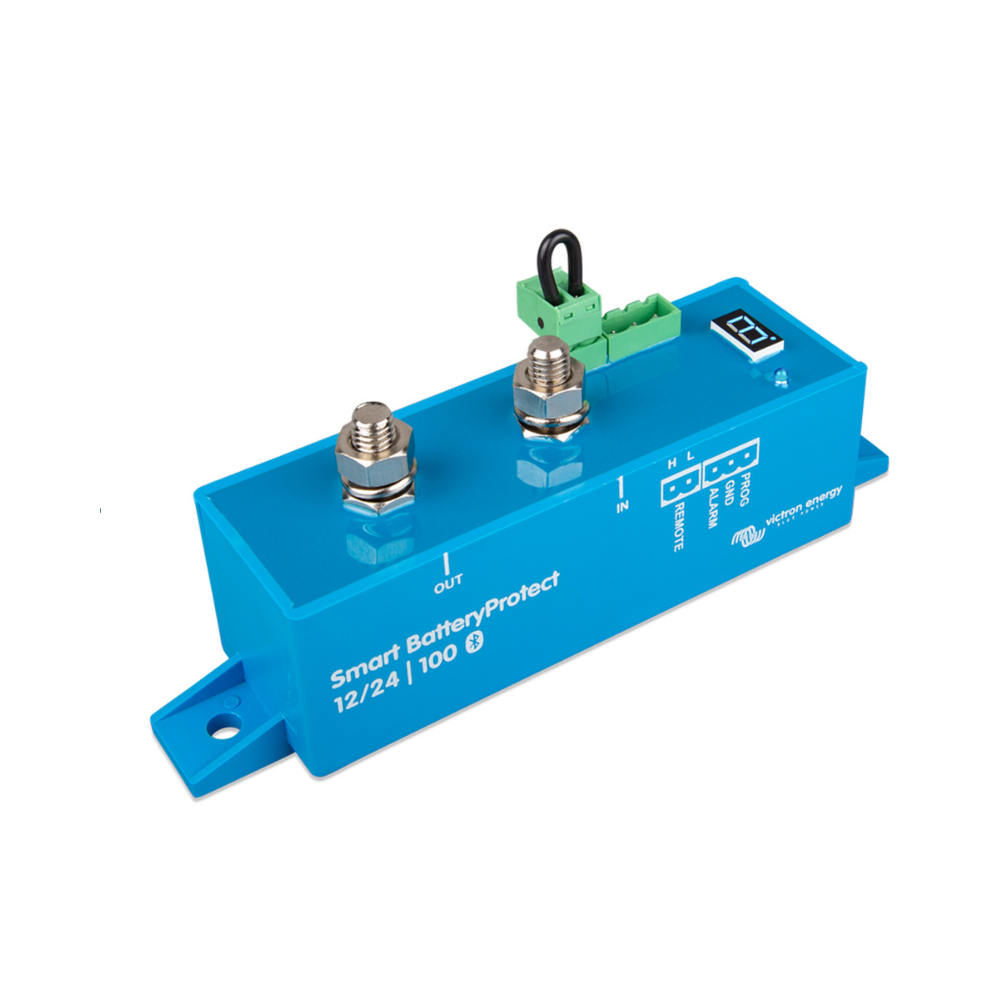

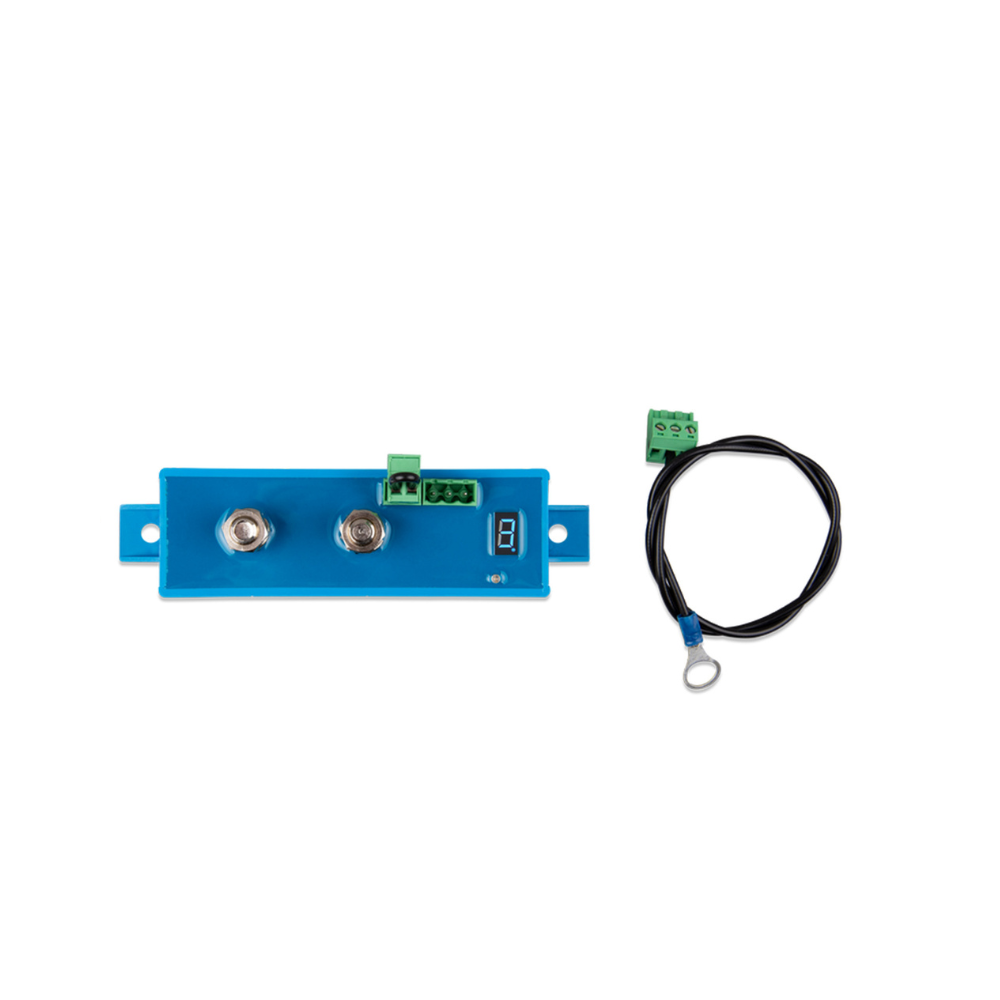

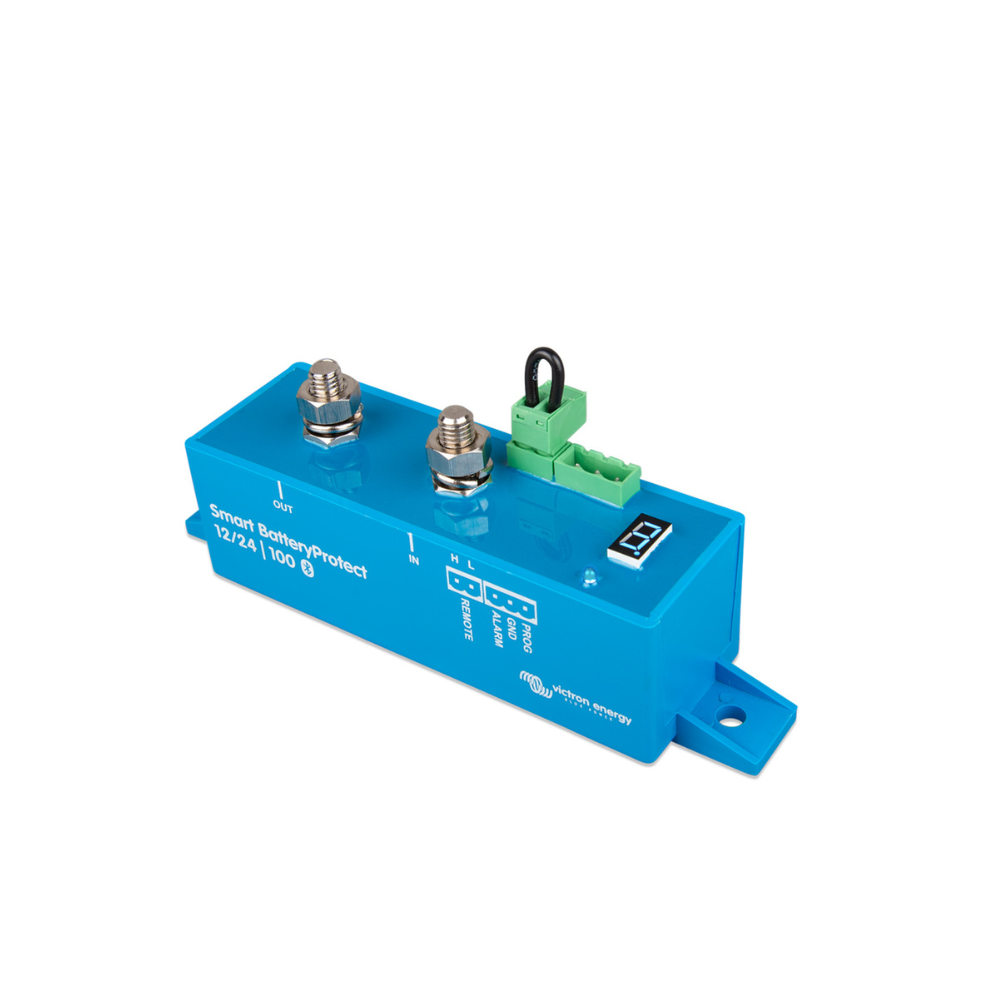

Victron Energy Smart Battery Protect 12/24V-100A

Here at Vanlifer we use the Victron Energy Smart BatteryProtect in many of our campervan builds. It is a must-have for any campervan conversion, keeping your battery safe by disconnecting non-essential loads before it runs too low. That means longer battery life and peace of mind when you are off-grid.

Benefits:

• Protects your battery from deep discharge damage

• Keeps enough power to start your engine when needed

• Easy Bluetooth programming from your phone

• Flexible settings with 9 built-in voltage options

• Ideal for campervan conversion electrical systems

• Disables Bluetooth if you prefer a wired-only setup

Features:

The Victron Smart BatteryProtect 12/24V 100A is designed to safeguard your power system on the road. It automatically disconnects non-essential loads before the battery is fully drained, protecting your investment and keeping you from being stranded. With Bluetooth control, you can adjust engage and disengage levels directly from your phone, or use the manual programming pin to choose from nine predefined settings. The device is uni-directional, meaning it handles current in one direction only. In practice, that makes it perfect for campervan conversion use where the battery connects to the IN terminal when powering loads, or a charger connects to the IN terminal when recharging. Compact, smart, and reliable, this unit helps your off-grid setup run smoothly trip after trip.

Also in our Victron range

Pair the Smart BatteryProtect with a Victron SmartShunt 300A or BMV-700 battery monitor to track exactly how much battery you have before the disconnect triggers. For solar charging, see our Victron SmartSolar MPPT 100/20. For a complete lithium battery system, see our lithium battery upgrade installation service.

Frequently Asked Questions

What does the Smart BatteryProtect actually do?

It's a low-voltage disconnect that sits between your battery and your non-essential 12V loads (lighting, fridge, USB outlets, etc.). When the battery voltage drops to your set threshold — indicating it's getting low — the BatteryProtect disconnects those loads automatically, preventing the battery from being fully discharged. It reconnects when the battery is charged back up past a higher threshold. This prevents deep discharge damage that shortens battery lifespan, particularly in lead-acid batteries which can be permanently damaged by a single deep discharge.

Can I set my own disconnect voltage with the Smart BatteryProtect?

Yes — via the VictronConnect app over Bluetooth, you can set custom engage and disengage voltage thresholds to suit your battery chemistry. Alternatively, use the manual programming pin to cycle through nine factory-preset voltage options without a phone. Typical lithium (LiFePO4) disconnect voltage is around 11.8–12.0V; lead-acid around 11.5–12.0V depending on how conservatively you want to protect it.

Does the Smart BatteryProtect work with lithium batteries?

Yes — it works with 12V and 24V lithium (LiFePO4), AGM, gel and flooded lead-acid batteries. For lithium systems, the BatteryProtect is often used as an additional safety layer alongside the battery's built-in BMS. Set the disconnect voltage to match your lithium battery's low-voltage cutoff recommendation. For a fully integrated lithium campervan power system, see our lithium battery upgrade installation service.

Is the Smart BatteryProtect unidirectional — can current only flow one way?

Yes — the Smart BatteryProtect is a unidirectional device. Current can only flow in one direction: from the IN terminal to the OUT terminal. This means it cannot be used in-line between a charger output and a battery (charger would be on IN, battery on OUT — reverse of the load-protection use case). For load-protection: battery connects to IN, loads connect to OUT. Download the Victron manual for full wiring diagrams.
