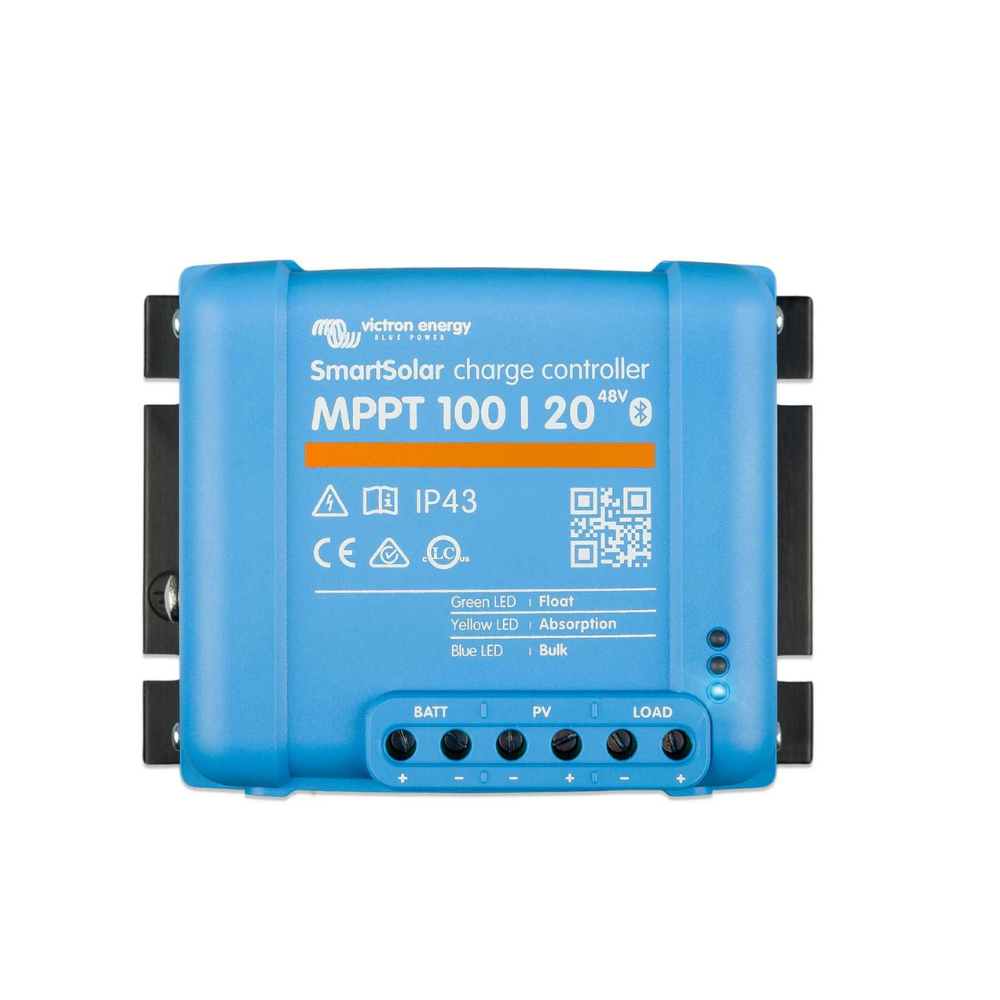

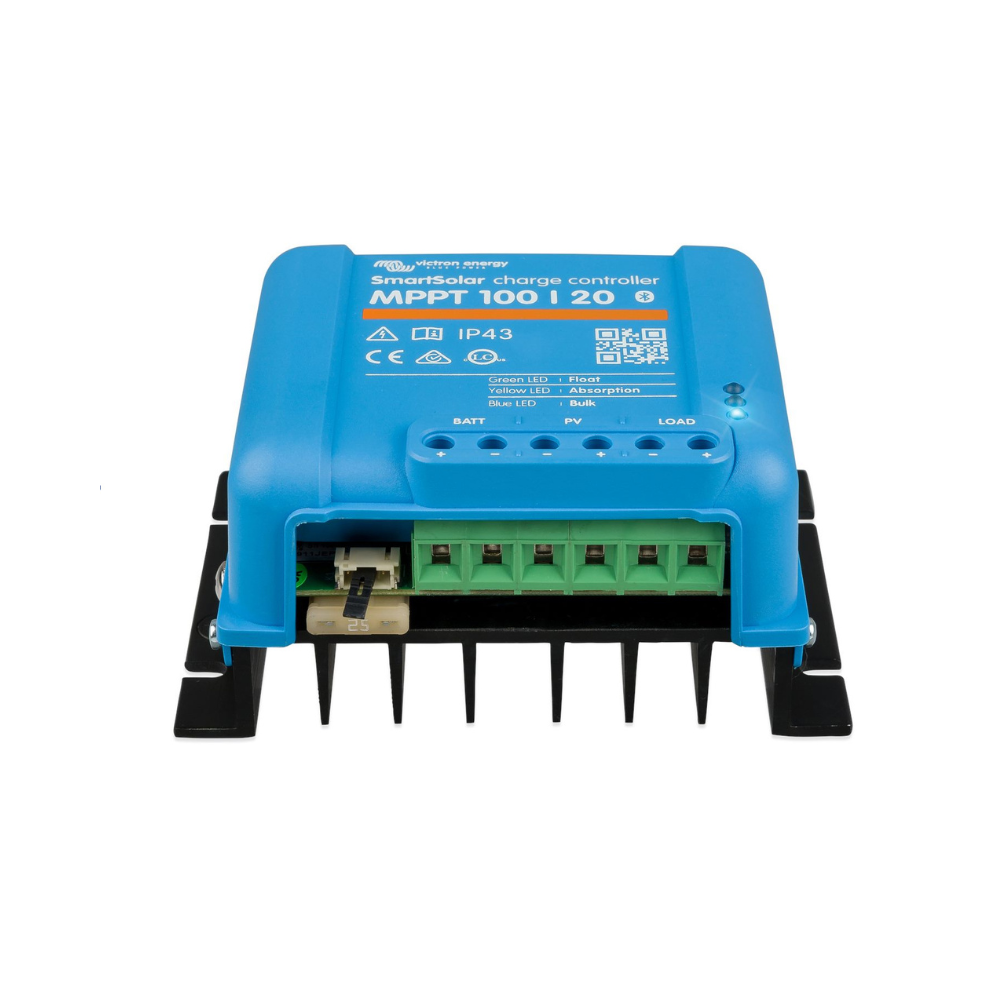

Victron Energy SmartSolar Controller MPPT 100/20 (12v - 48V 20A)

Victron Energy SmartSolar Controller MPPT 100/20 (12v - 48V 20A)

Victron Energy | SKU: EL039

Regular price $279.99
Regular price Sale price $279.99
Sale Sold out
GST included.

Here at Vanlifer we trust the Victron SmartSolar 100/20 MPPT to power many of our campervan builds. It is compact, clever, and designed to get every bit of usable energy from your solar setup. Whether you’re going lithium or keeping it simple, this solar charge controller is a solid addition to any campervan conversion.

Benefits:
• Keeps your batteries charged efficiently, even on cloudy days.
• Works with 12, 24 and 48-volt systems including lithium.
• MPPT tech pulls maximum power from your solar panels.
• Handy Bluetooth app for live tracking and easy setup.
• Can revive a deeply discharged battery, perfect for off-grid trips.
• Reliable gear we use ourselves in campervan conversions.

Features:

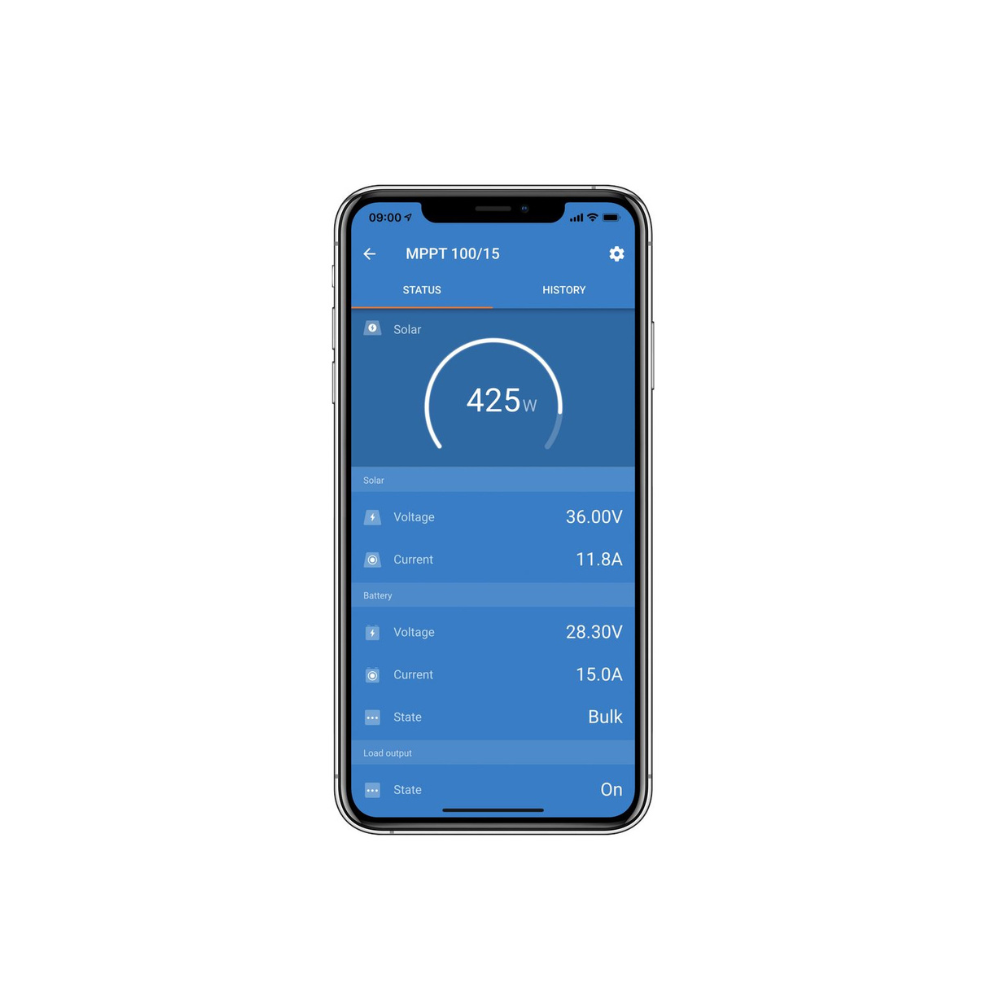

The Victron SmartSolar 100/20 MPPT is built for life on the road, making the most of every ray of sunlight. Its Maximum Power Point Tracking constantly adjusts in microseconds to deliver the best balance of voltage and current, ensuring your batteries get the maximum possible charge. Even if your battery has been run down to almost nothing, SmartSolar can bring it back to life provided it hasn’t been permanently damaged. With Bluetooth built in, you can keep an eye on real-time solar input, battery voltage, current, and load output straight from the VictronConnect app. Whether you’re tucked away at a beach or parked up in the mountains, this charge controller makes sure your power system is working at its best.

Specifications

  • Battery voltage: 48V, 24v, 12v
  • Rated charge current: 20A
  • Nominal PV power, 12V: 290w.
  • Nominal PV power, 24V: 580w
  • Nominal PV power, 48V: 1160W
  • Max. PV short circuit current: 20A
  • Automatic load disconnect: Yes
  • Max. PV open circuit voltage: 100V
  • Peak efficiency: 98%
  • Self-consumption: 12V: 25 mA , 24V: 15 mA
  • Charge voltage 'absorption': 14,4V / 28,8V (adjustable)
  • Charge voltage 'float': 13,8V / 27,6V (adjustable)
  • Charge algorithm: multi-stage adaptive
  • Temperature compensation: -16 mV / oC resp. -32 mV / oC
  • Max. continuous load current: 1A
  • Protection: Battery reverse polarity (fuse) / Output short circuit / Over temperature
  • Operating temperature: -30 to +60oC (full rated output up to 40oC)
  • Humidity: 95%, non-condensing
