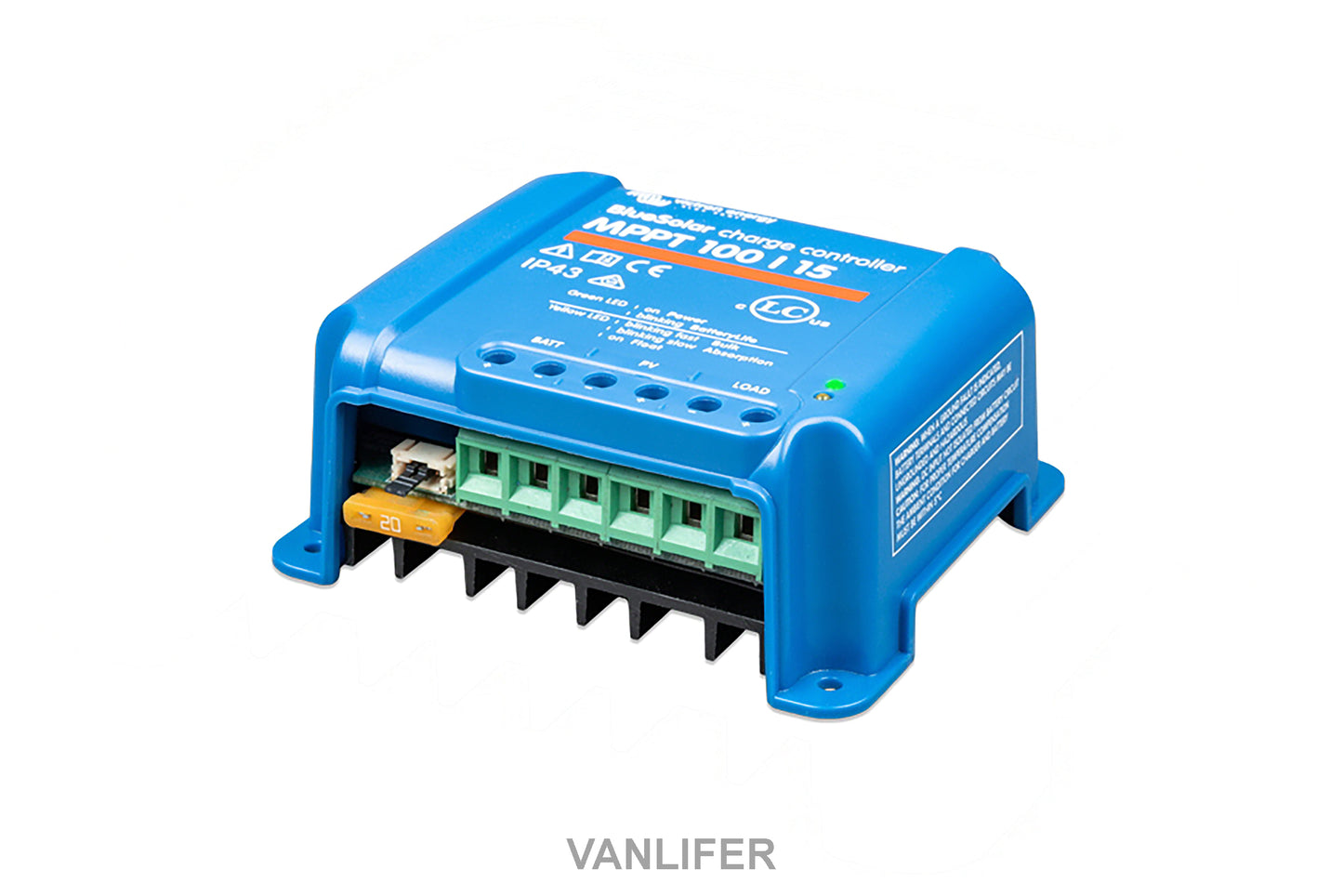

• Victron BlueSolar MPPT 100/15 solar charge controller — 12/24V 15A, 100V PV input, VE.Direct port

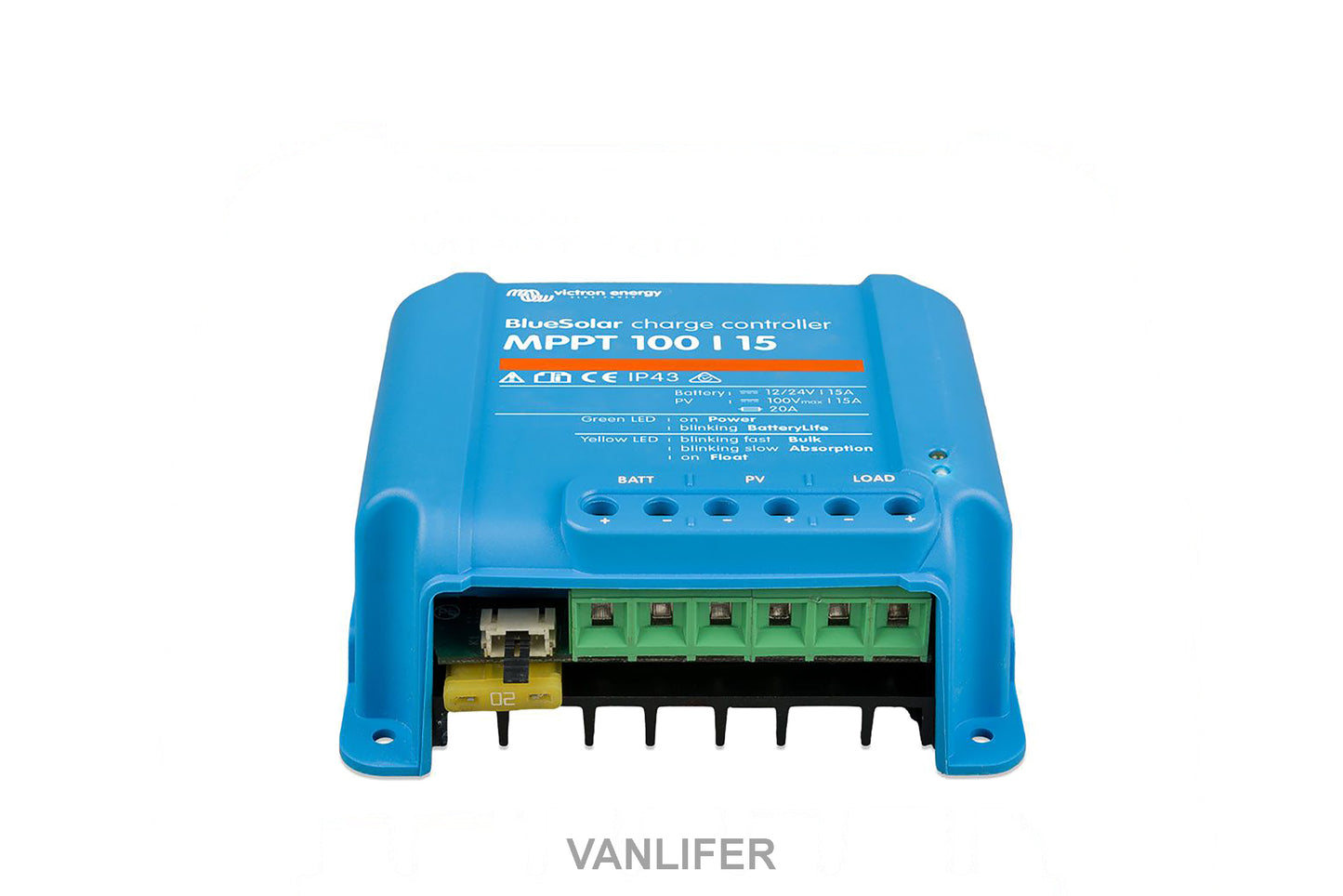

  • Victron BlueSolar MPPT 100/15 rear terminals showing PV, battery and load connections

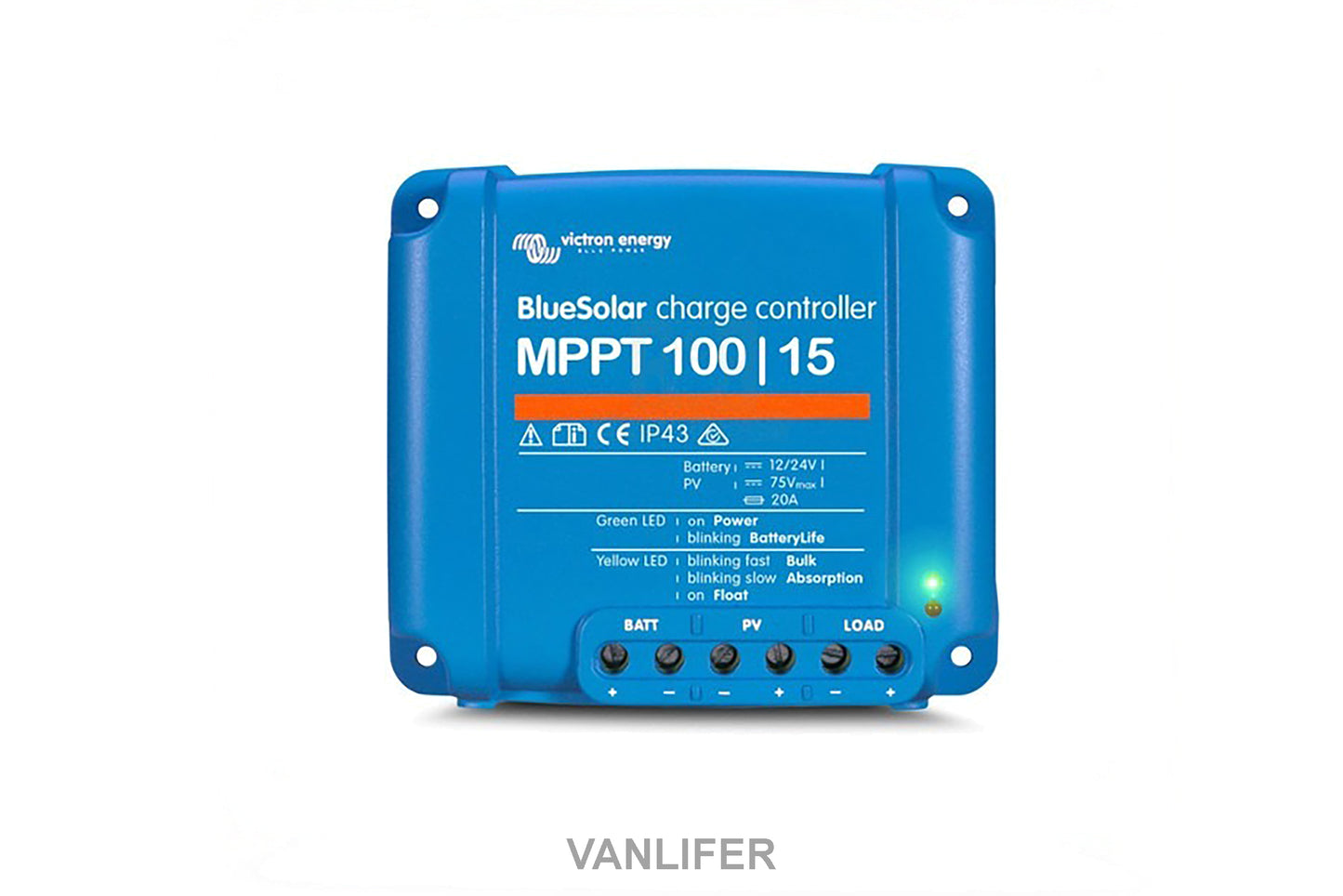

  • Victron BlueSolar MPPT 100/15 dimensions and mounting diagram — 100×113×40mm, 0.5kg
1 3

Victron BlueSolar MPPT 100/15 Solar Charge Controller

Victron BlueSolar MPPT 100/15 Solar Charge Controller

SKU: EL055

$112.00
$112.00
Sale Sold out
GST included.

Get the maximum power out of your solar panels. The Victron BlueSolar MPPT 100/15 uses ultra-fast Maximum Power Point Tracking to extract every watt your panels can deliver — up to 30% more than a PWM controller in changing light conditions — while protecting your battery with intelligent charging algorithms.

Benefits:

• Ultra-fast MPPT — up to 30% more harvest than PWM in cloudy conditions

• 12V and 24V compatible — auto-detects battery voltage

• 15A charge current — suits panels up to 200W at 12V or 400W at 24V

• BatteryLife algorithm actively extends battery lifespan

• Load output with disconnect voltage — prevents over-discharge

• VE.Direct port for monitoring via app (Bluetooth dongle sold separately)

• IP65 electronics, compact 100×113×40mm, 0.5kg

Features:

The BlueSolar MPPT 100/15 constantly adjusts in microseconds to track the maximum power point of your solar panels, delivering the best balance of voltage and current regardless of cloud cover. Unlike cheaper PWM controllers, it harvests significantly more energy in variable light — the difference is most noticeable on overcast NZ days. Compatible with lithium (LiFePO4) and all lead-acid battery types. The load output terminal lets you connect DC loads directly with battery protection built in. Connect a VE.Direct Bluetooth dongle (sold separately) to monitor real-time solar input, battery voltage and charge state from the free VictronConnect app. For internet-based remote monitoring, connect a GX device and use Victron’s free VRM portal. Download the manual below for wiring and configuration details.

Specifications

• Model: BlueSolar MPPT 100/15.

• Input: Up to 100V PV.

• Output: 12/24V, 15A.

• Technology: Maximum Power Point Tracking (MPPT).

• Monitoring: Bluetooth (with dongle), GX device, VRM portal.

• Battery protection: Load output with disconnect voltage settings.

• BatteryLife feature: Extends lifespan with daily optimisation.

• Compatible with GlobalLink 520 for remote monitoring.

Downloads

Victron BlueSolar MPPT 100/15 Operating Manual

View full details

People are asking

What’s the difference between BlueSolar and SmartSolar?

BlueSolar does not have built-in Bluetooth — you need to add the optional VE.Direct Bluetooth dongle for app monitoring. SmartSolar has Bluetooth built in. Performance and charging algorithms are identical.

What solar panel size does it suit?

Up to 200W at 12V or 400W at 24V. Maximum PV open-circuit voltage is 100V — check your panel’s Voc before connecting. A 100–200W panel is typical for a campervan roof installation.

Does it work with lithium batteries?

Yes — compatible with lithium (LiFePO4) and all common lead-acid battery types. Set the correct charge algorithm in VictronConnect for your battery type.

What is BatteryLife?

BatteryLife is Victron’s intelligent algorithm that attempts a full 100% recharge every day. If it can’t due to poor weather, it gradually raises the load-disconnect voltage to protect the battery from repeated deep discharge — significantly extending battery lifespan.

Can it revive a completely flat battery?

Yes — provided the battery cells aren’t permanently damaged. The BlueSolar can begin charging with a battery voltage as low as 0V, making it capable of recovering deeply discharged batteries.
