SKU: EL232

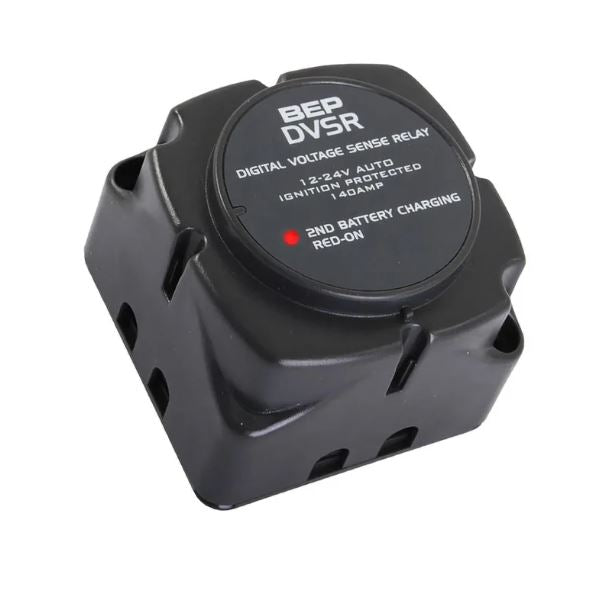

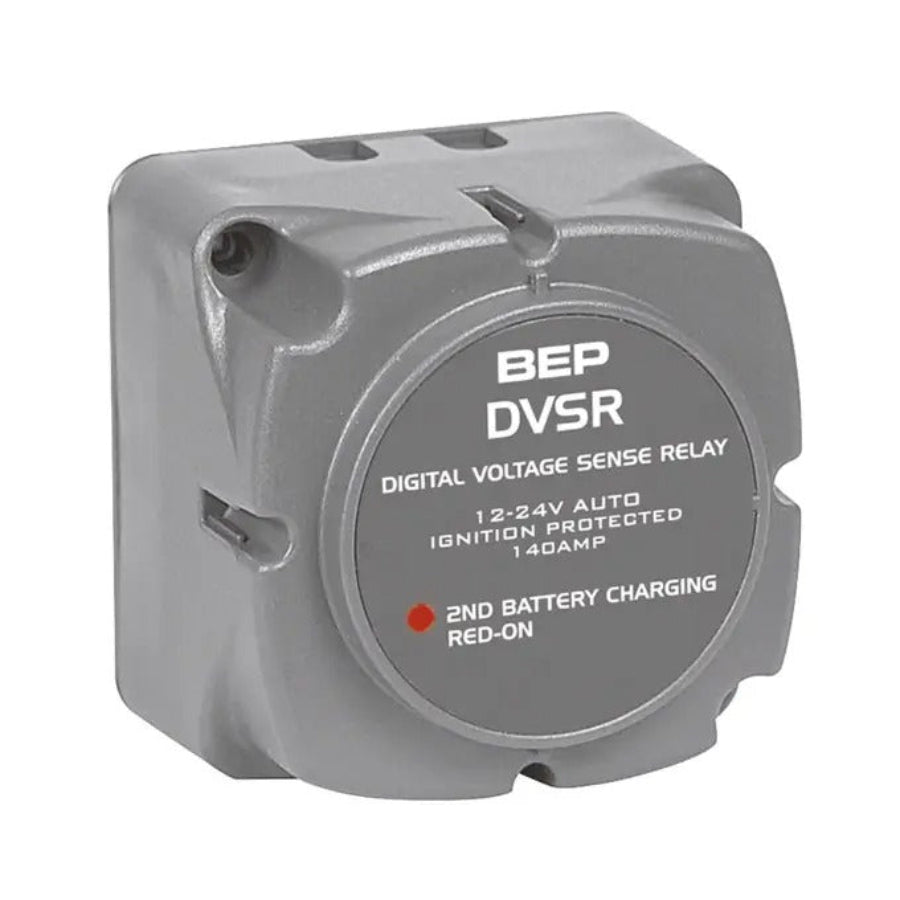

BEP Digital Dual Sense VSR

BEP Digital Dual Sense VSR

Dual Battery Voltage Sensing Relay

Regular price $150.00 NZD
Regular price Sale price $150.00
Sale Sold out
  • Suits 12V and 24V dual battery systems
  • Charges house battery, protects starter battery
  • Compact 69 x 69 x 50mm body
View full details

Description

Manage dual batteries safely in your campervan conversion with this digital voltage sensing relay. It automatically charges your house battery while protecting your starter battery from going flat.

Benefits:

  • Charges your house battery automatically while you drive, with no manual switching
  • Protects your starter battery so you can still start the van after running appliances overnight
  • Works alongside solar systems and onboard chargers on 12V or 24V setups
  • No voltage drop like a diode isolator, and very low power draw when parked (under 2mA)
  • Ignition protected, and mounts on a surface or panel
  • Compact 69 x 69 x 50mm body

Features:

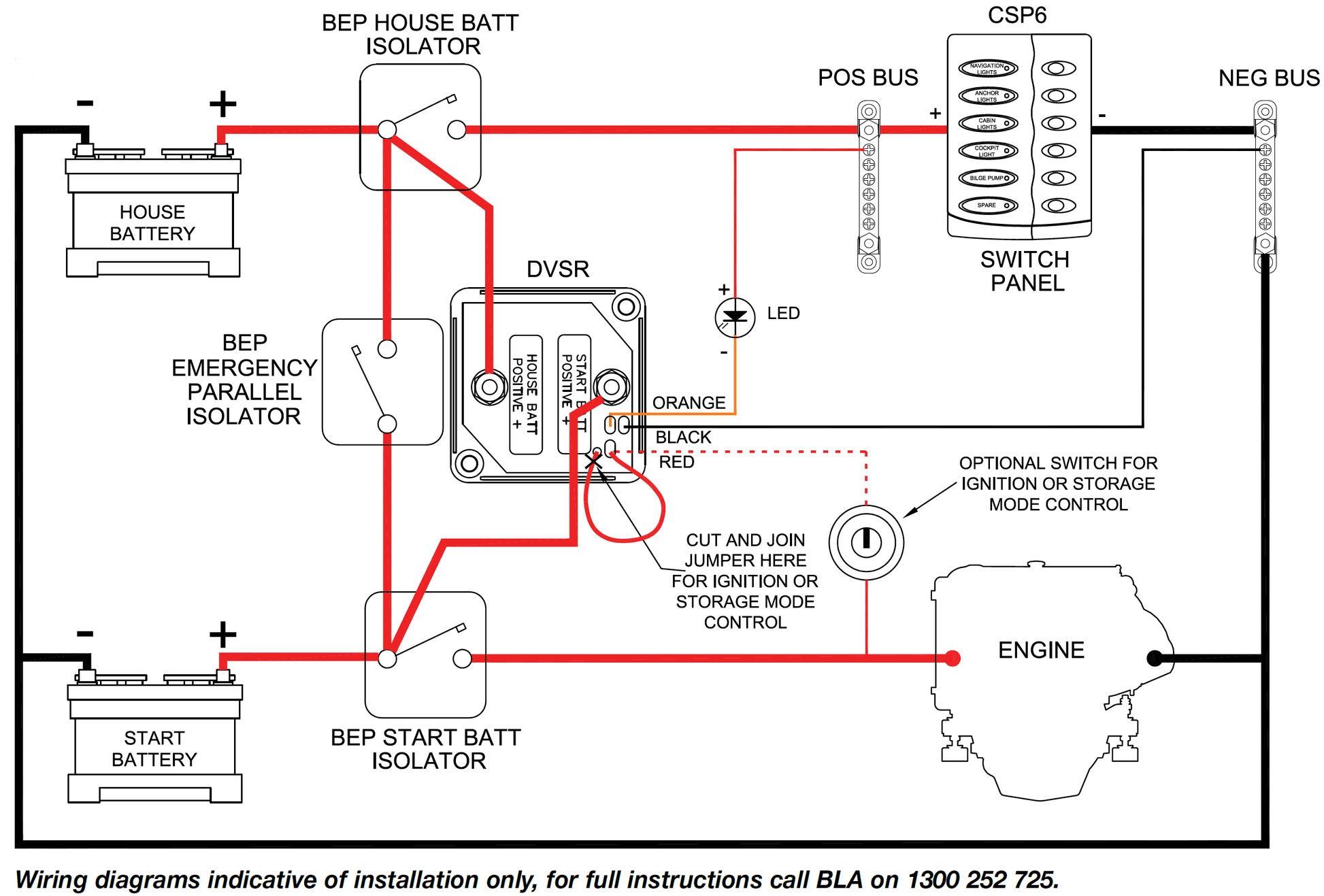

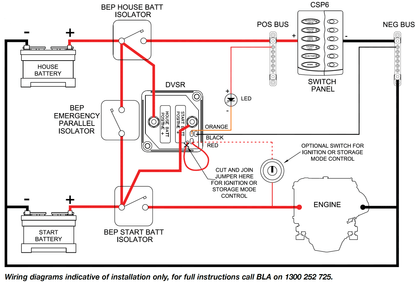

The BEP digital VSR joins your starter and house batteries when charging voltage is present and isolates them again when it falls. On a 12V system it engages at 13.4V and disengages at 12.8V (26.8V and 25.6V on 24V), and it auto-selects 12V or 24V. It is rated 140A. The usual setup with solar is to connect the panels to the house battery, with the VSR fitted between the start and house batteries.

A VSR is a relay, not a charger. If your alternator is a smart alternator or your house battery is lithium, the charging voltage may not suit a VSR, so check before you buy and consider a DC-DC charger.

Fuse and distribute your house power with the 12-Way Fuse Block, and pair it with a CAMEC 120Ah AGM battery.

Specifications

Brand BEP

Voltage 12/24V (auto-sensing)

Current rating 140A

Engage Voltage 13.4/26.8V

Disengage Voltage 12.8/25.6V

Mounting Surface or panel mount

Ignition Protected Yes

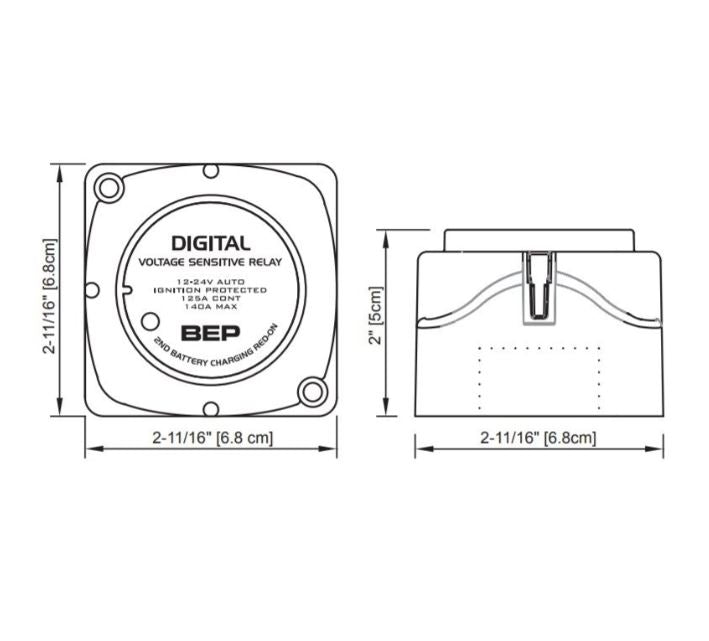

Dimensions 69 (L) x 69 (W) x 50 (H)mm

People are asking

Will the BEP VSR work with solar?

Yes. The VSR sits between your start and house batteries, and the usual setup is to connect solar panels to the house battery. It then joins or isolates the batteries based on voltage. Take care if your start and house batteries have different charging needs, and get advice for lithium or smart alternator setups.

At what voltage does the VSR connect and disconnect?

On a 12V system it engages at 13.4V and disengages at 12.8V. On 24V those are 26.8V and 25.6V. If your alternator charging voltage stays below the engage voltage, the relay will not join the batteries.

Will it drain my starter battery when the van is parked?

No. The relay isolates the batteries when voltage falls below 12.8V, so appliances run off the house battery only. The digital circuit draws under 2mA itself.
