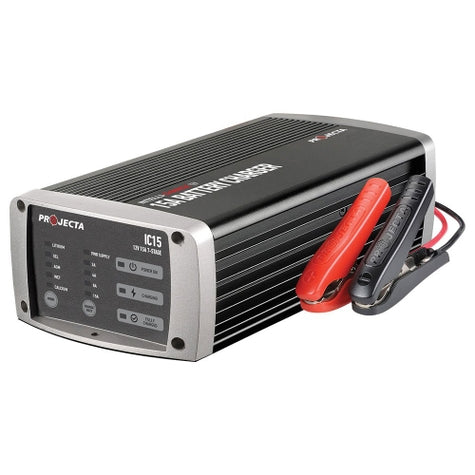

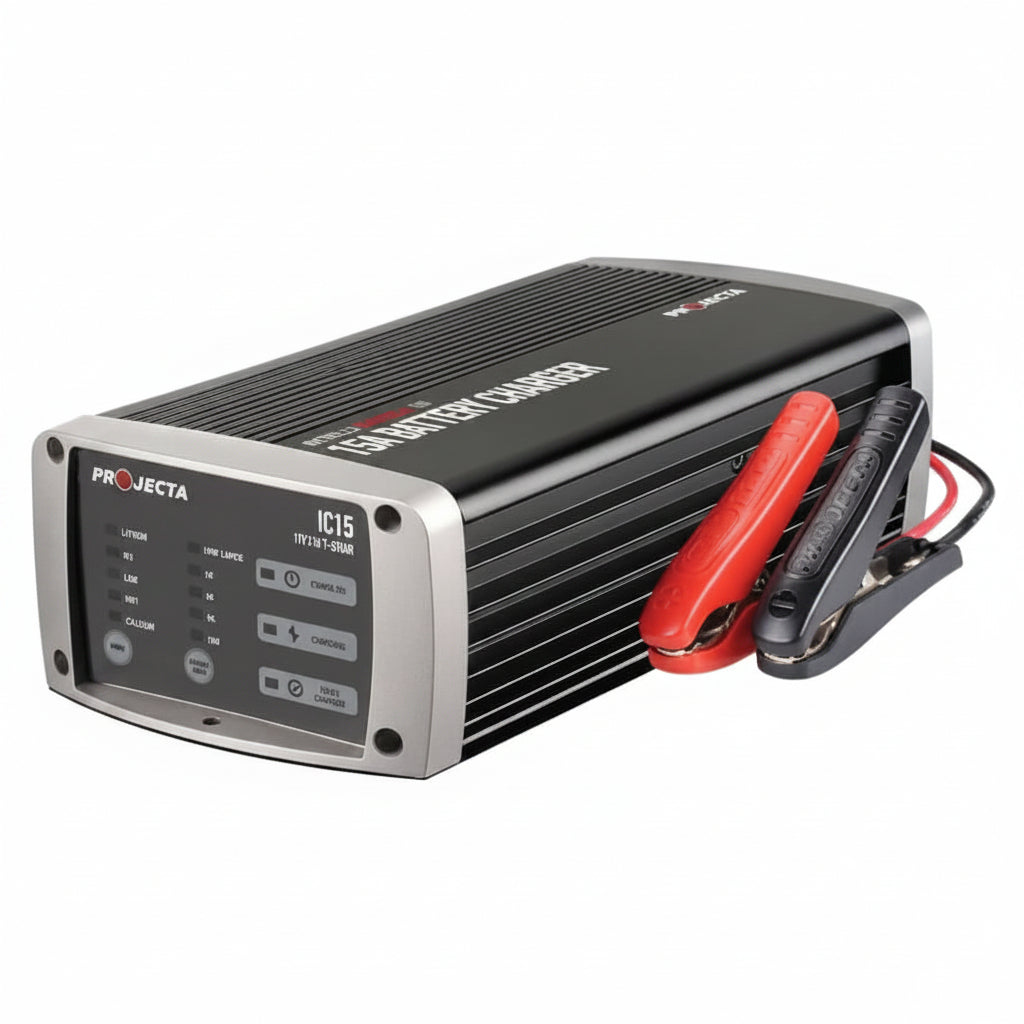

• Projecta IC15 15A 7 Stage 12V Smart Battery Charger with Battery Clamps

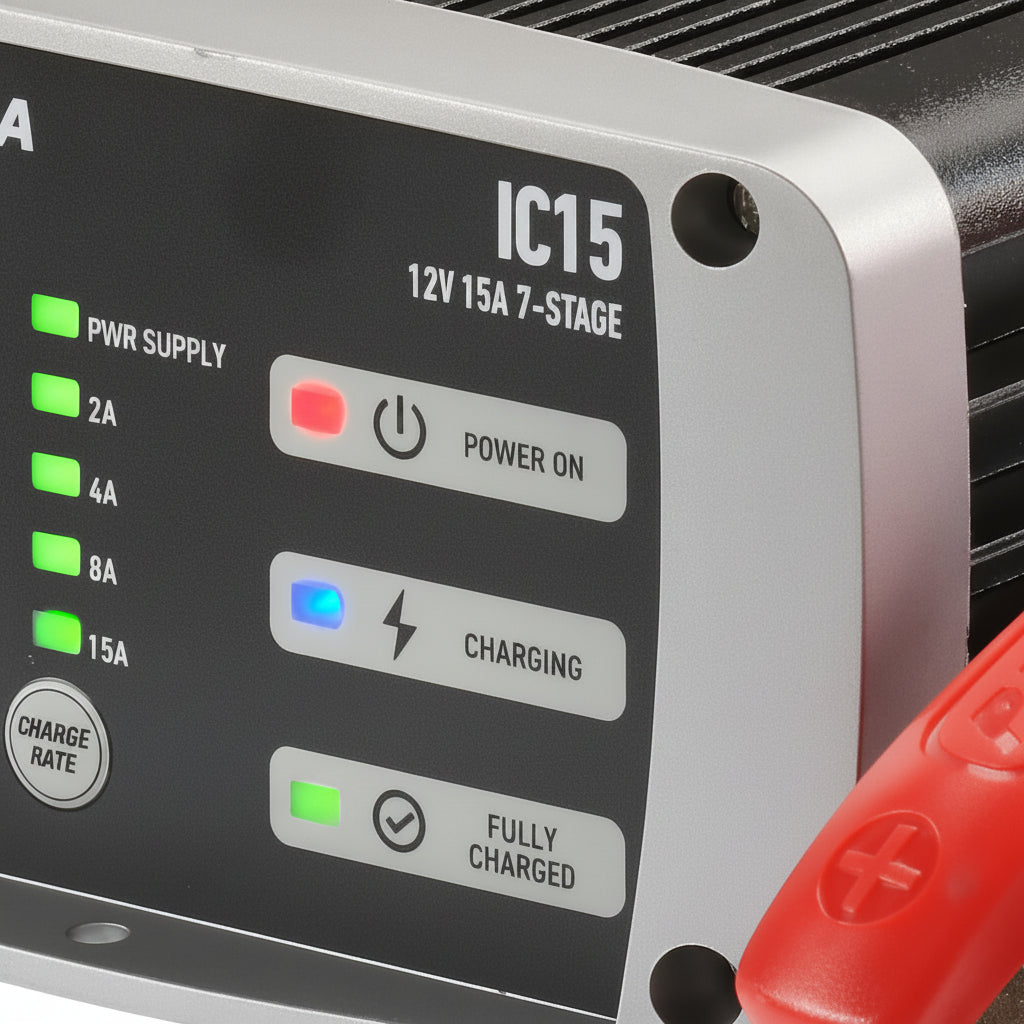

  • Projecta IC15 Battery Charger Front Control Panel and Charging Modes

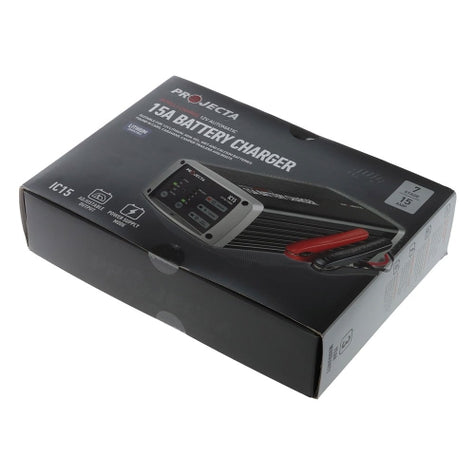

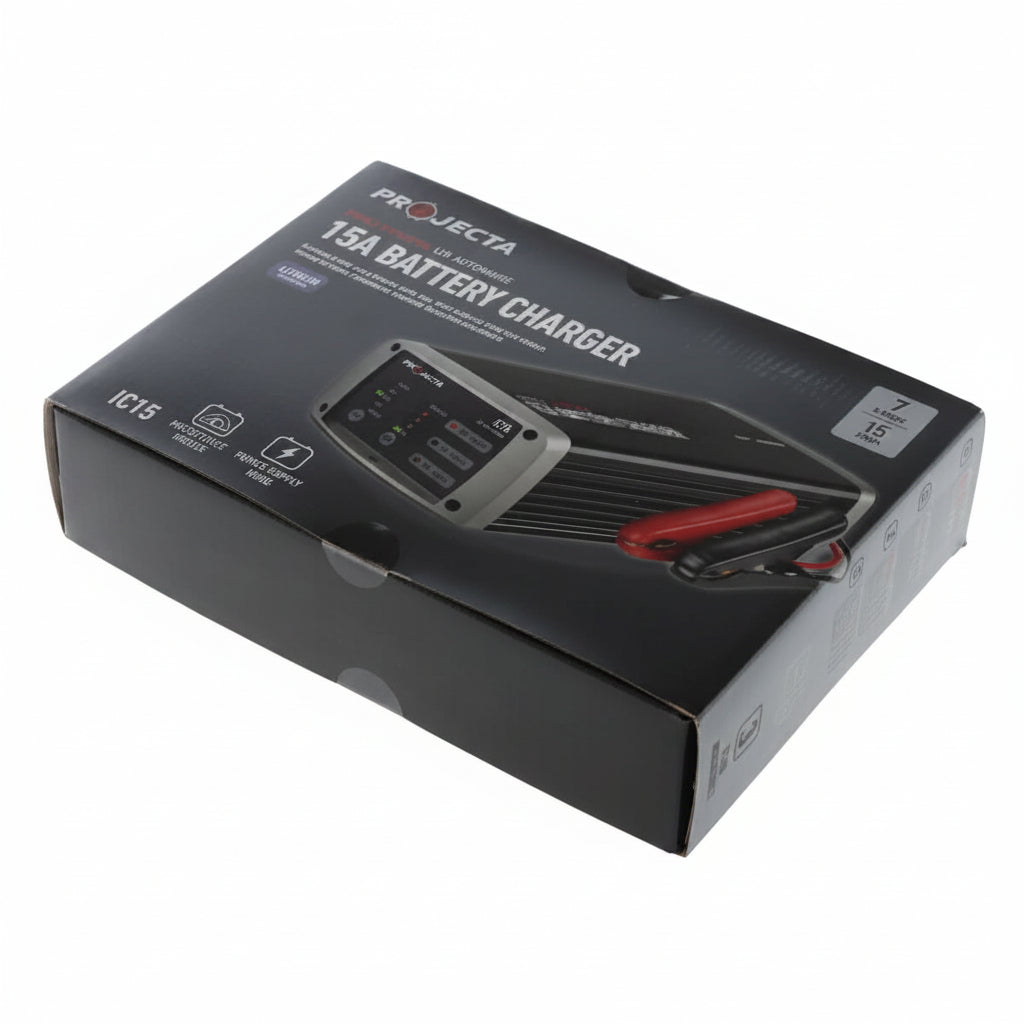

  • Projecta IC15 15A 12V Smart Battery Charger Retail Box

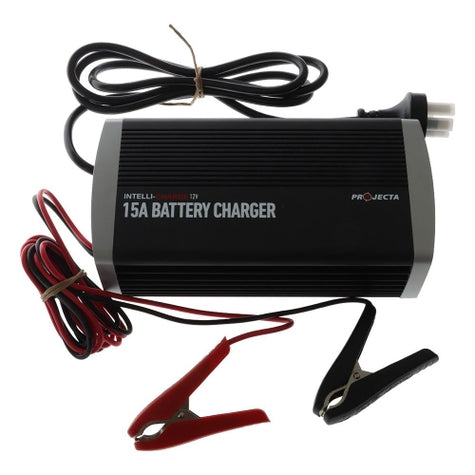

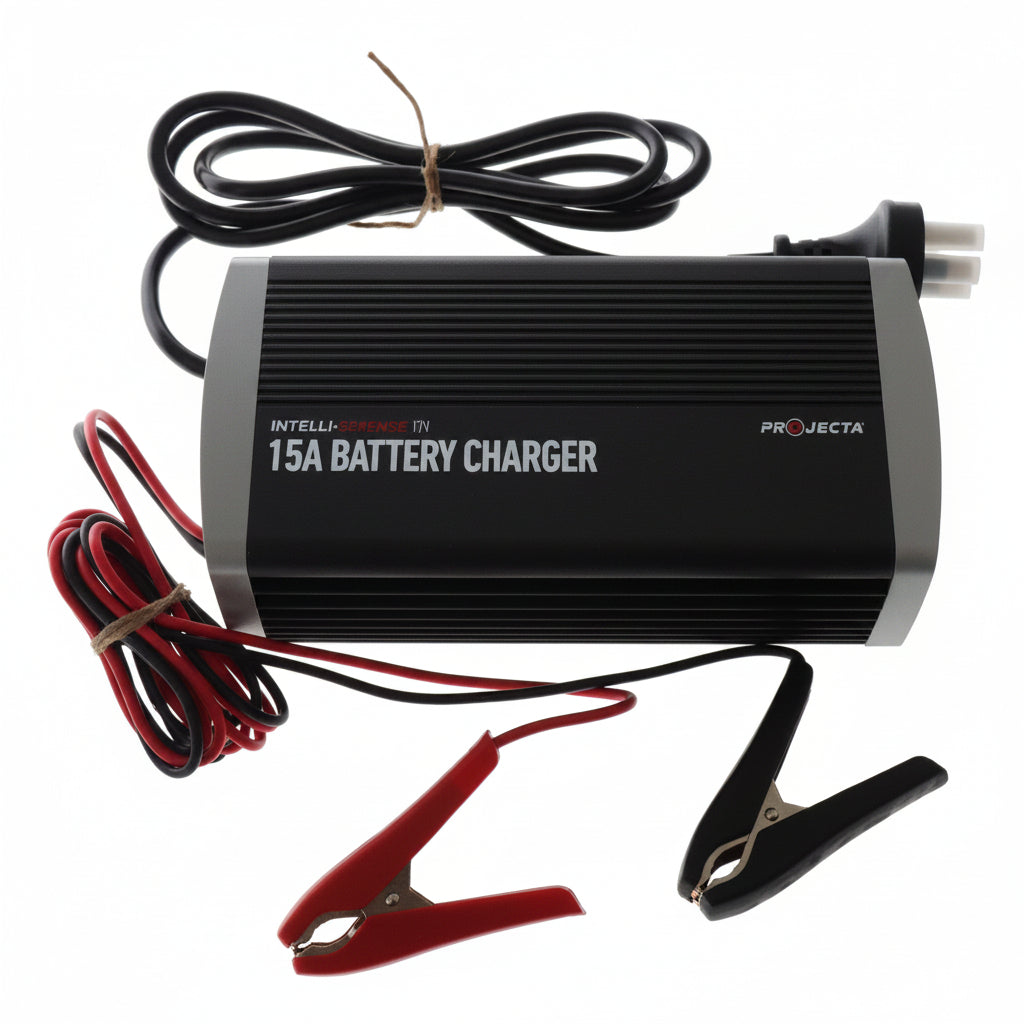

  • Projecta IC15 Smart Battery Charger with Battery Leads and Clamps

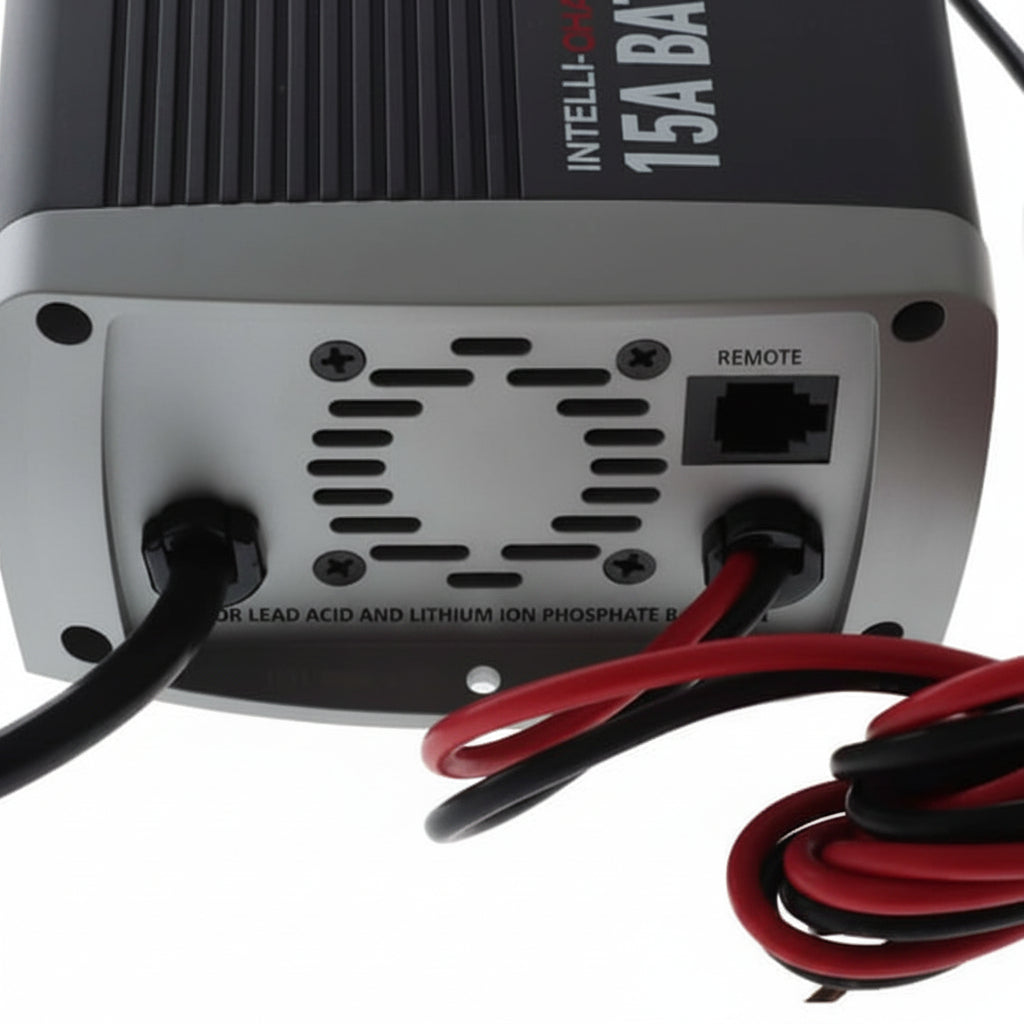

  • Projecta IC15 15A Battery Charger Rear Connections and Cooling Design
1 5

12V Automatic 15 Amp & Stage Battery Charger

12V Automatic 15 Amp & Stage Battery Charger

SKU: EL102

$248.00
$248.00
Sale Sold out
GST included.

A 15A 7-stage automatic battery charger for 12V lithium, AGM, gel, calcium, and lead-acid batteries. Ideal for campervans, caravans, boats, and motorhomes, delivering safe, efficient charging and automatic battery maintenance from a 240V power supply.

Benefits

  • 15A charging output for faster charging
  • 7-stage smart charging helps extend battery life
  • Compatible with lithium and lead-acid battery types
  • Automatic maintenance mode prevents overcharging
  • 240V AC powered for home, workshop, or campsite use
  • Includes heavy-duty battery clamps

An extremely versatile charger that is capable of being set to charge smaller batteries found in recreational equipment right up to the huge power demands of large battery banks often found on houseboats and yachts. Comes with a 5 year warranty. Remote included.

Specifications

  • QUANTITY: 1 x unit 1 x remote
  • OUTPUT: 12v
  • OUTPUT CURRENT (A): 2A, 4A, 8A, 15A
  • Charge Stages: 7 Stage Automatic
  • Input: 240VAC, 50Hz, 240W
  • Minimum Start Voltage: 2.0V
  • Back Drain: 1mA (charger), 2mA (with remote)
  • Dimensions (Unit): 222 x 108 x 61mm
  • Dimensions (Remote): 130 x 90 x 26mm
  • Weight: 1.54kg
  • Package Includes: 1 x IC15 Charger, 1 x Remote Control
  • 5 years warranty

BATTERY CHARGE TIME
- Automotive: 12V 80–2000CCA — 6–15 hrs
- Marine: 12V 110–2500MCA — 8–20 hrs
- Deep Cycle: 12V 14–300Ah — 6–20 hrs
- Lithium (LiFePO4): 12V 4–150Ah — 2–10 hrs

Downloads

Download Instruction Manual

View full details

People are asking

HOW DO I KNOW IF THE BATTERY IS CHARGED?

The charger’s ully charged LED will illuminate (solid). Alternatively use a Battery Hydrometer (Projecta Part No. BH100). A reading of 1.250 or more in each cell indicates a fully charged battery.

HOW CAN I TELL WHAT STAGE THE BATTERY CHARGER IS IN?

Below are the conditions that are displayed by the LEDs for each of the charge stages.

CAN I SELECT A DIFFERENT BATTERY CHEMISTRY FOR CHARGING MY BATTERY?

Yes, the battery chemistry selection can be different to your battery type if the charge voltages match the battery manufacturer’s recommendations.

WHY DOES CALCIUM MODE TAKE SO LONG TO CHARGE?

To fully charge a Calcium battery, the battery requires an extra charging stage called ‘EqualiSation’. This consists of a constant current being fed into the battery until 16V is reached. This rejuvenates the battery cells. This charging stage can take up to 12 hours.

WHY DO I NEED CALCIUM MODE?

Calcium batteries are composed with different chemistry and require a different charging algorithm. When near-fully discharged or heavily used, they need a calcium charger to fully recharge and restore battery performance and lengthen lifespan.

CAN I USE THE CHARGER AS A POWER SUPPLY?

Yes, by selecting Power Supply mode you are able to use the charger as a power supply to run an appliance. Ensure the appliance being run is not greater than the charger’s output current and where possible connect the charger to a battery, and the battery to the appliance.
