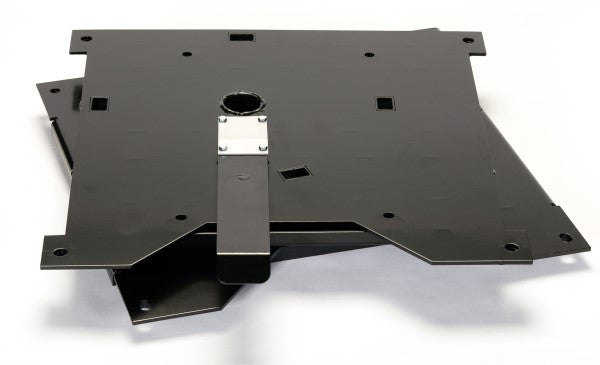

• Sportscraft offset seat swivel base for Mercedes Sprinter and VW Crafter 2007-2017, left hand passenger side
1 1

Sportscraft Seat Swivel for Mercedes Sprinter and VW Crafter (2007-2017 LH)

Sportscraft Seat Swivel for Mercedes Sprinter and VW Crafter (2007-2017 LH)

SKU: RVP11207

$760.00
$760.00
Sale Sold out
GST included.

Bring your Sprinter or Crafter's passenger seat into the living area. This Sportscraft left-hand (passenger side) seat swivel base rotates a full 180°, integrating the seat into your dinette or lounge — a proven approach used by major European motorhome manufacturers.

Steel-built and German-engineered, this base uses an offset pivot that shifts the seat around 100mm closer to the centre of the van once rotated, clearing the B-pillar and door for a genuinely comfortable position. No handbrake kit is needed on the passenger side — it comes complete with all mounting fixings required.

Fits Mercedes Sprinter 2007–2018 and VW Crafter 2007–2017 vans with a single OEM passenger seat (not suitable for suspension seats or double bench seating). TUV-approved and crash-tested to EU standards.

Sorting the driver's side as well? See our matching Sprinter/Crafter RH seat swivel, or browse fitments for other vans like the Fiat Ducato and Iveco Daily.

Specifications

Compatibility: Mercedes Sprinter 2007–2018, VW Crafter 2007–2017

Orientation: Left hand (passenger side)

Weight: 16 kg

Added height: 44 mm

Base size: 470 x 460 mm

Bolt hole pattern (across): 425 mm

Bolt hole pattern (front to back): 424 mm

Compliance: TUV approved, crash tested to EU standards

Downloads

Dimensions

View full details

People are asking

Does this fit both Sprinter and Crafter?

Yes — this LH (passenger side) swivel base fits Mercedes Sprinter models from 2007 to 2018 and VW Crafter models from 2007 to 2017 with a single OEM passenger seat. Not suitable for vans with suspension seats or a double seat bench.

What does LH mean and which seat does it suit?

LH refers to the left-hand, passenger side of the vehicle in right-hand-drive markets like New Zealand. This base is built specifically for the passenger seat, not the driver's seat.

What's the benefit of the offset pivot?

The offset pivot point shifts the seat around 100mm toward the centre of the van once rotated 180°, so it clears the B-pillar and door for a more usable, comfortable position facing the living area.

Do I need any extra kits or adapters for the passenger side?

No — unlike the driver's side, the passenger swivel doesn't need a handbrake lowering kit. It comes complete with all mounting fixings required for installation.

Is this swivel certified for use in a campervan build?

Yes, it carries TUV approval and has been crash-tested to EU safety standards. Confirm with your NZ certifier that it meets Land Transport requirements for your specific conversion.
