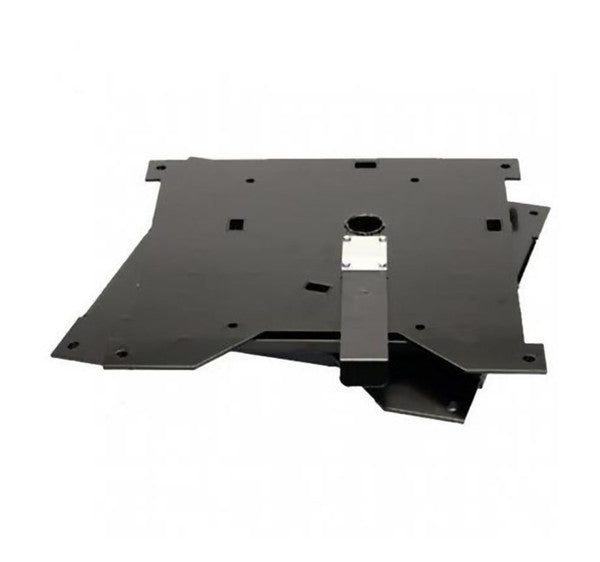

Sportscraft Seat Swivel for Mercedes Sprinter VW Crafter (2007–2017 RH)

Sportscraft Seat Swivel for Mercedes Sprinter VW Crafter (2007–2017 RH)

Sportscraft Driver Seat Swivel, Sprinter/Crafter

Regular price $1,475.00 NZD
Regular price Sale price $1,475.00
Sale Sold out
  • Full 180° rotation
  • Right-hand (driver side) base
  • For Sprinter and Crafter 2007-2017
  • Offset pivot moves the seat ~100mm closer to centre for more room
  • Steel construction, German-engineered for daily use
  • Rotates a full 180° into the living area
  • Includes handbrake lowering kit and mounting fixings
  • TUV approved and crash tested to EU standards
View full details

Description

Turn your Sprinter or Crafter's driver's seat around in seconds. This Sportscraft right-hand seat swivel base rotates a full 180°, letting the cab seat double as part of your dinette or lounge — the same trick used by major European motorhome manufacturers.

Steel-built and German-engineered, the base uses an offset pivot design that shifts the seat roughly 100mm closer to the centre of the van once rotated, clearing the B-pillar for genuinely usable space. The driver's side kit includes a handbrake lowering kit along with all mounting fixings, so the handbrake lever clears the mechanism once fitted.

Fits Mercedes Sprinter 2007–2018 and VW Crafter 2007–2017 vans with a single OEM driver's seat (not suitable for suspension seats or double bench seating). TUV-approved and crash-tested to EU standards.

Need the passenger side too? See our matching Sprinter/Crafter LH seat swivel, or browse options for other base vehicles like the Fiat Ducato and Iveco Daily.

Specifications

Compatibility: Mercedes Sprinter 2007–2018, VW Crafter 2007–2017

Material: Steel

Side: Right hand (driver's side)

Weight: 16 kg

Added height: 44 mm

Base dimensions: 470 x 460 mm

Bolt hole spacing (across): 425 mm

Bolt hole spacing (front to back): 424 mm

Includes: Handbrake lowering kit, mounting fixings

Downloads

People are asking

Does this fit both Sprinter and Crafter?

Yes — this RH swivel base fits Mercedes Sprinter models from 2007 to 2018 and VW Crafter models from 2007 to 2017 fitted with a single OEM driver's seat. It won't suit vans with suspension seats or a double passenger bench.

What's the benefit of the offset design?

The offset pivot point shifts the seat roughly 100mm toward the centre of the van when rotated 180°, giving more elbow room from the B-pillar and making the seat easier to use once turned around.

Does it include a handbrake adapter?

Yes, the driver's side kit comes with a handbrake lowering kit along with the mounting fixings, so the lever clears the swivel mechanism.

How much height does it add under the seat?

The base adds roughly 44mm of height under the seat once fitted — worth allowing for if you're tight on headroom in your build.

Is it TUV certified?

Yes, it's TUV-approved and crash-tested to EU standards, and it's built from steel for long-term durability in daily campervan use.
