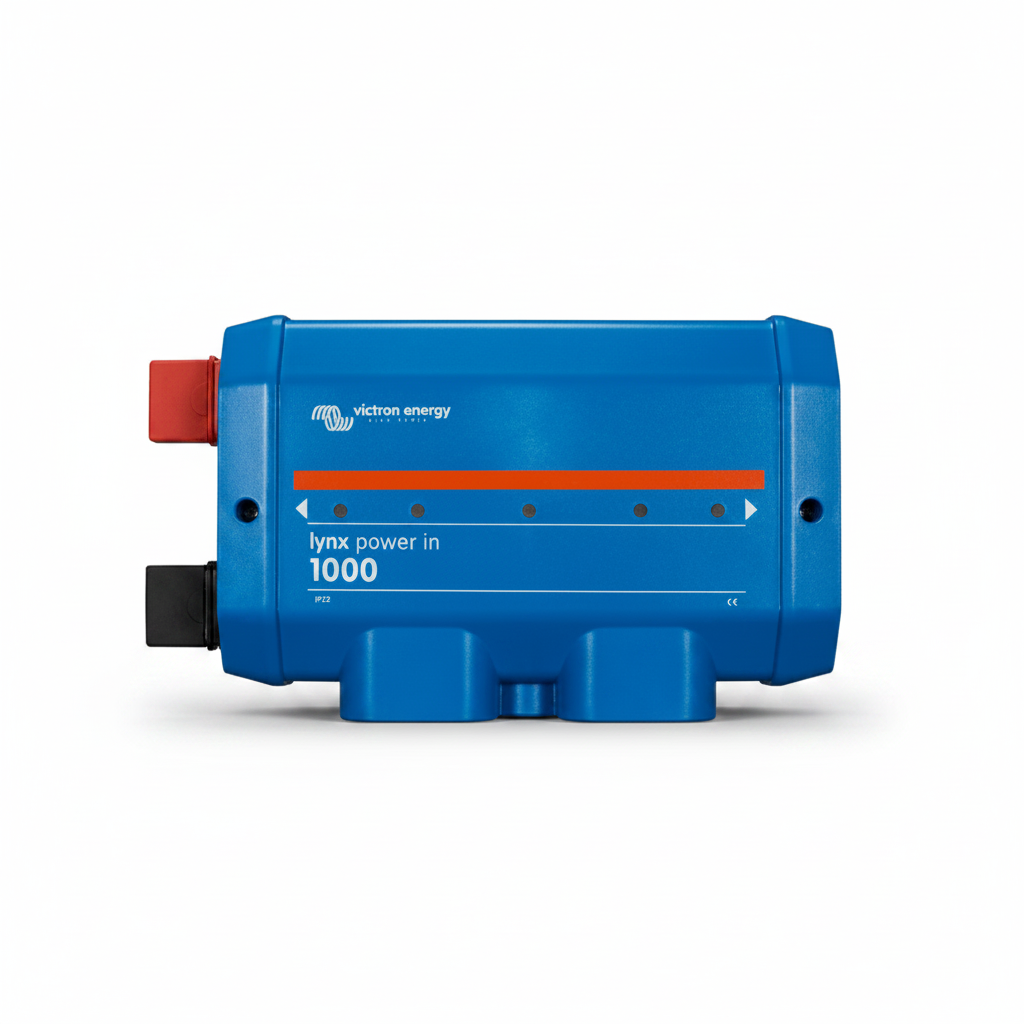

• Victron Lynx Power In module — modular DC bus bar with M8 bolt terminals for campervan battery connection

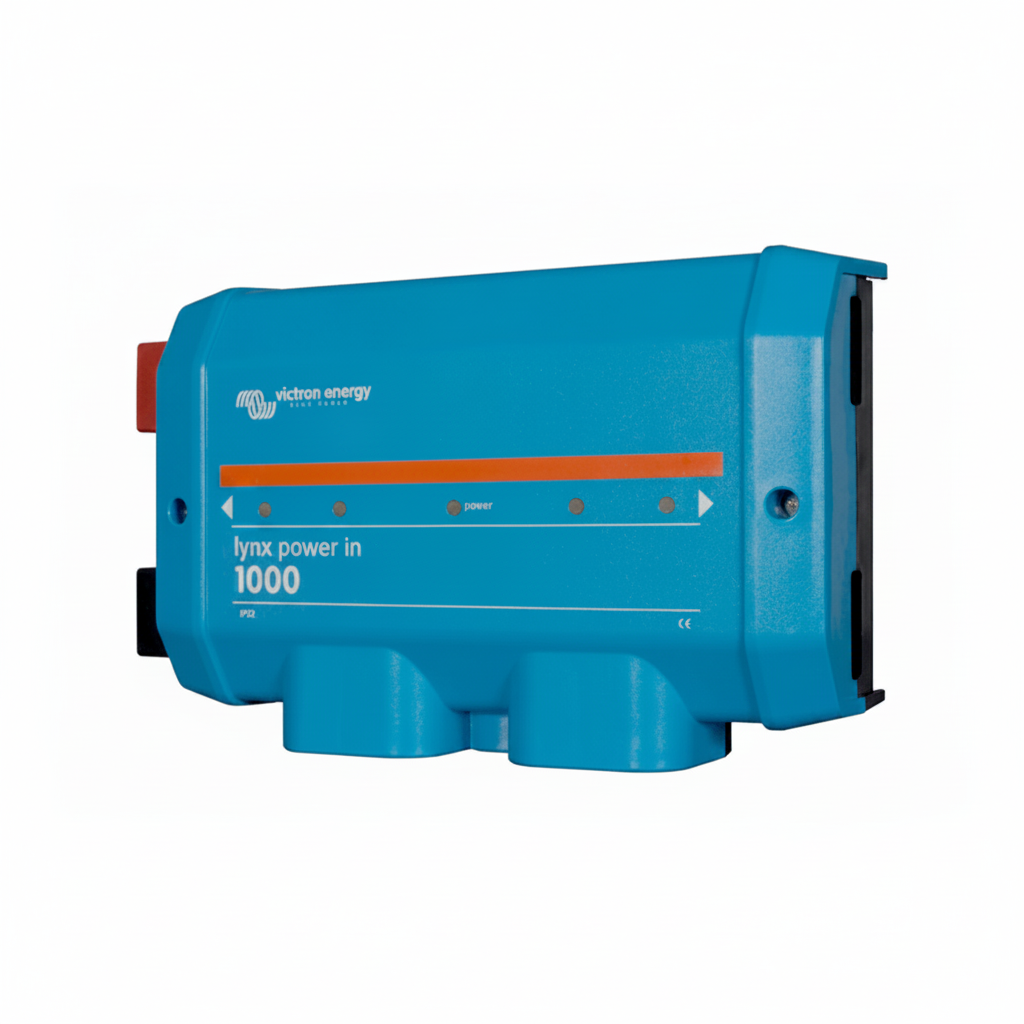

  • Victron Lynx Power In rear view showing positive and negative bus bars and bottom cable entry guides

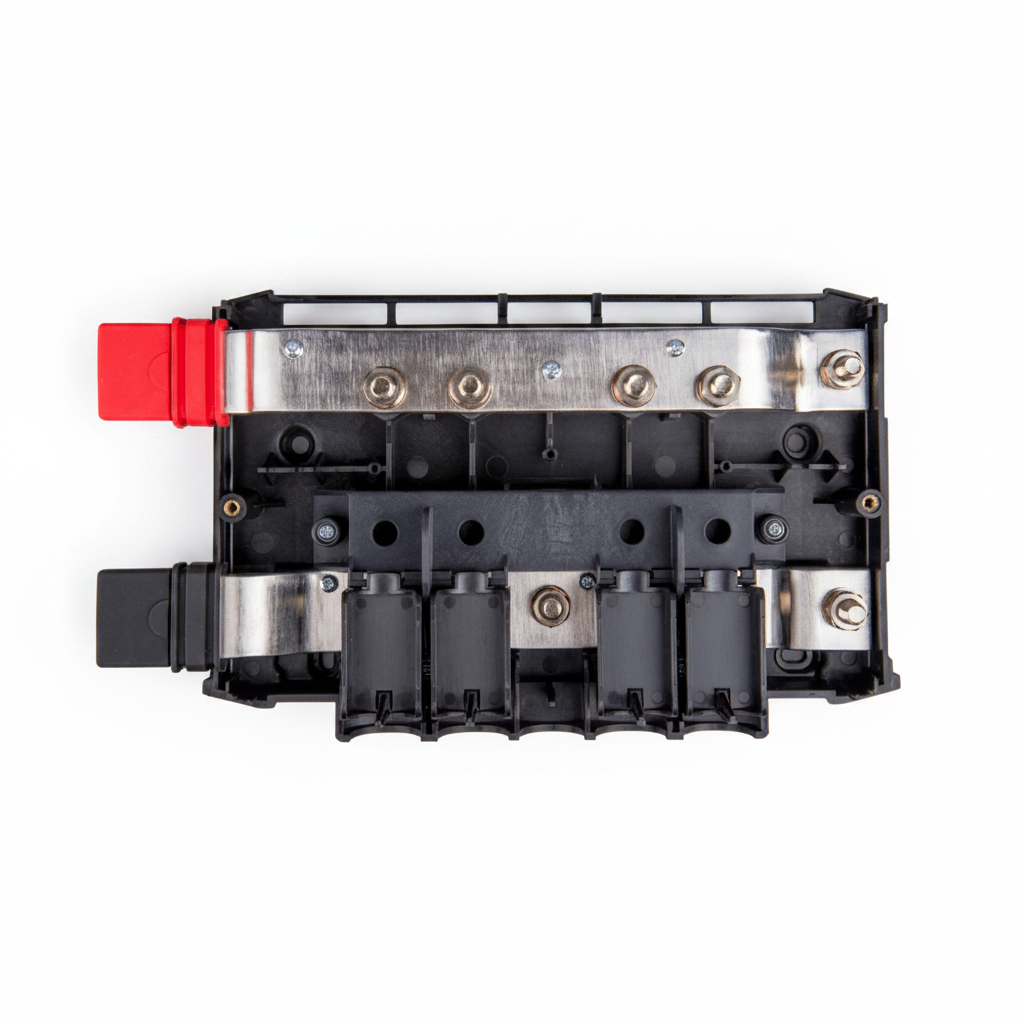

  • Victron Lynx Power In red and black terminal bus bars showing M8 bolt connection points

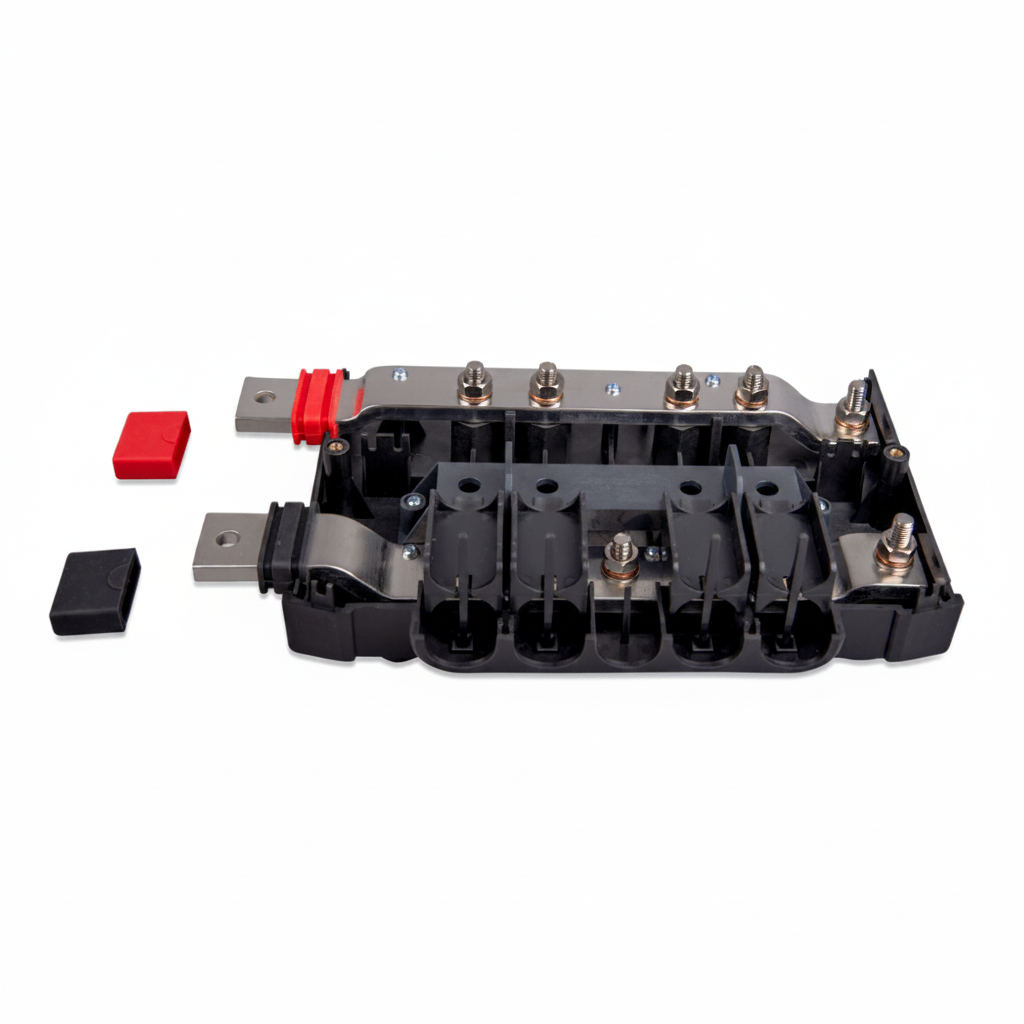

  • Victron Lynx Power In module assembled in Lynx bus bar system with Distributor module
  • Victron Lynx Power In module top view showing cable routing and M8 terminal layout
1 5

Victron Lynx Power In Module

Victron Lynx Power In Module

SKU: EL035

$320.00
$320.00
Sale Sold out
GST included.

The clean, modular way to connect your battery bank to your Victron power system. The Lynx Power In provides a solid positive and negative DC bus bar with M8 bolt connections the foundation of any serious Lynx-based campervan electrical build.

Benefits:

• Centralised battery connection point clean, organised wiring

• Positive and negative bus bars with M8 bolt terminals secure, low-resistance connections

• Accepts cables up to 22mm via bottom guides, unlimited size on side connections

• Designed for parallel battery strings balanced current distribution

• Snaps into the Lynx modular system alongside Distributor and Shunt modules

• We use these on our own campervan builds

Features:

The Victron Lynx Power In is the battery input module of Victron’s modular Lynx DC distribution system. It provides both a positive and negative bus bar with M8 bolt connections, giving you a single, solid connection point for your battery bank whether that’s a single battery or multiple batteries in parallel. All Lynx modules snap together into a tidy, serviceable bus bar assembly. An external fuse (MEGA fuse or Class-T) is required in the battery circuit and must be installed separately. Cables route through the bottom entry guides (up to 22mm) or the side connections for larger cable sizes. Download the datasheet below for dimensions and wiring guidance. Must be installed by a qualified electrical installer.

Specifications

• Positive and negative DC bus bars with M8 bolts.

• Connects batteries to the Lynx DC distribution system.

• Accepts cables up to 22 mm via bottom guides.

• Side connections allow unlimited cable size.

• Designed for use with external fuses.

Downloads

Victron Lynx Power In Datasheet

View full details

People are asking

What does the Lynx Power In actually do?

It provides a centralised positive and negative DC bus bar for connecting your battery bank to the rest of your Lynx system. Instead of running multiple cables directly from battery terminals, you connect all batteries to the Power In module and run a single cable set to your distribution.

What cable sizes does it accept?

Bottom entry guides accept cables up to 22mm diameter. The two side connections have no size limit. M8 bolts are used for all terminal connections.

Does it include a fuse?

No — the Lynx Power In is designed to be used with an external fuse (such as a MEGA fuse or Class-T fuse) in the battery circuit. Fusing is required and must be installed separately.

Does it need professional installation?

Yes — this involves high-current DC wiring. Incorrect installation can be hazardous. Please consult a licensed electrical installer and follow all applicable electrical codes.

What else do I need for a complete Lynx system?

A typical Lynx setup pairs the Power In with a Lynx Distributor (for fused outputs to loads) and optionally a Lynx Shunt (for current measurement). All Lynx modules snap together into a modular bus bar system with a clean, serviceable layout.
