Victron Six-Way MEGA Fuse Holder with 250A Busbar

Victron Six-Way MEGA Fuse Holder with 250A Busbar

SKU: EL037

$60.00
$60.00
Sale Sold out
GST included.

Six independently fused high-current outputs on a single 250A tin-plated copper busbar. The Victron Six-Way Fuse Holder takes MEGA fuses and is the right choice for protecting multiple high-draw circuits in a serious campervan power system.

Benefits:

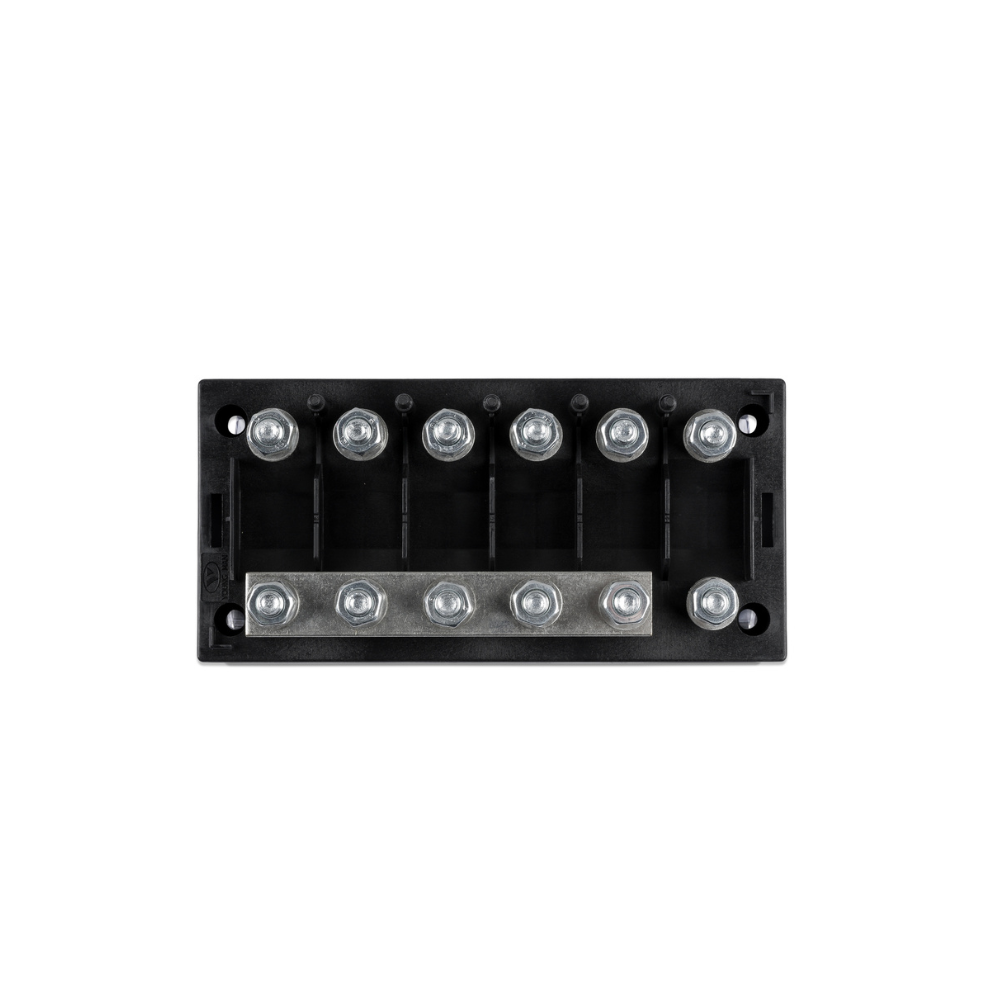

• Six MEGA fuse positions on one 250A busbar — protect up to 6 high-current circuits

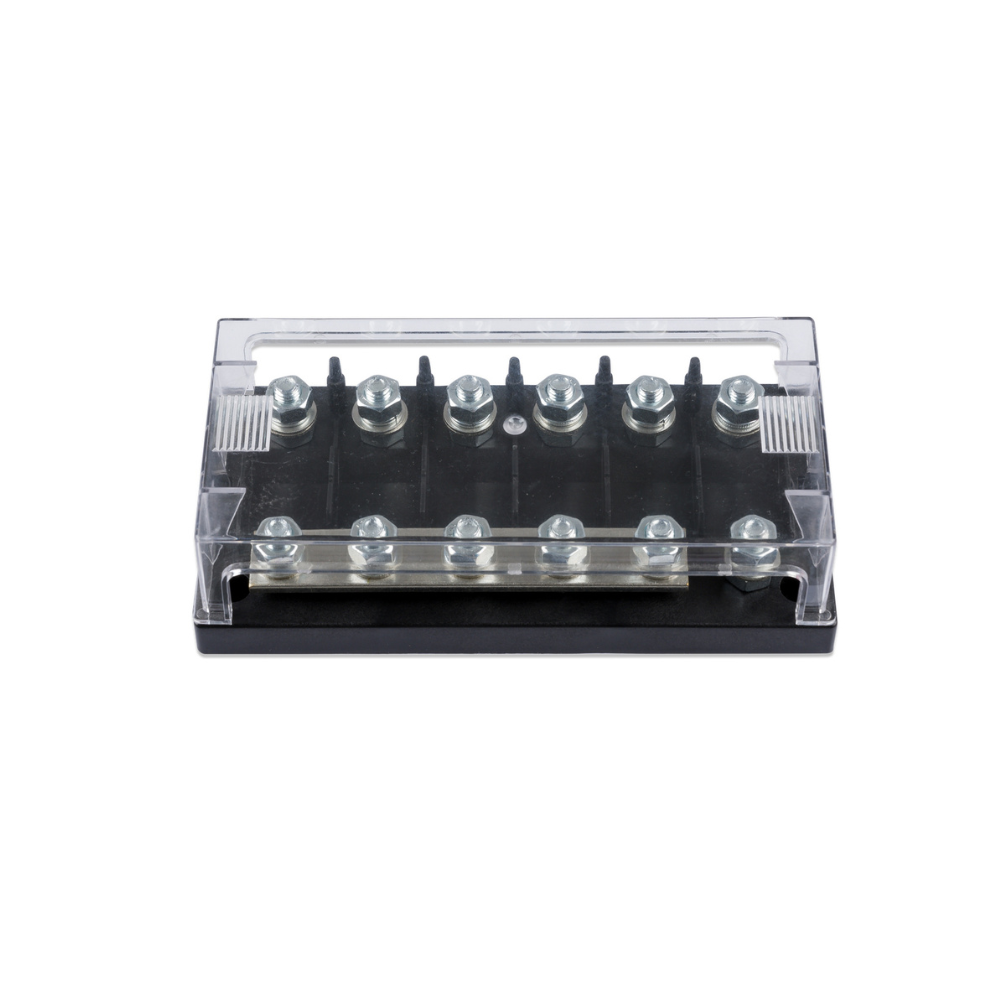

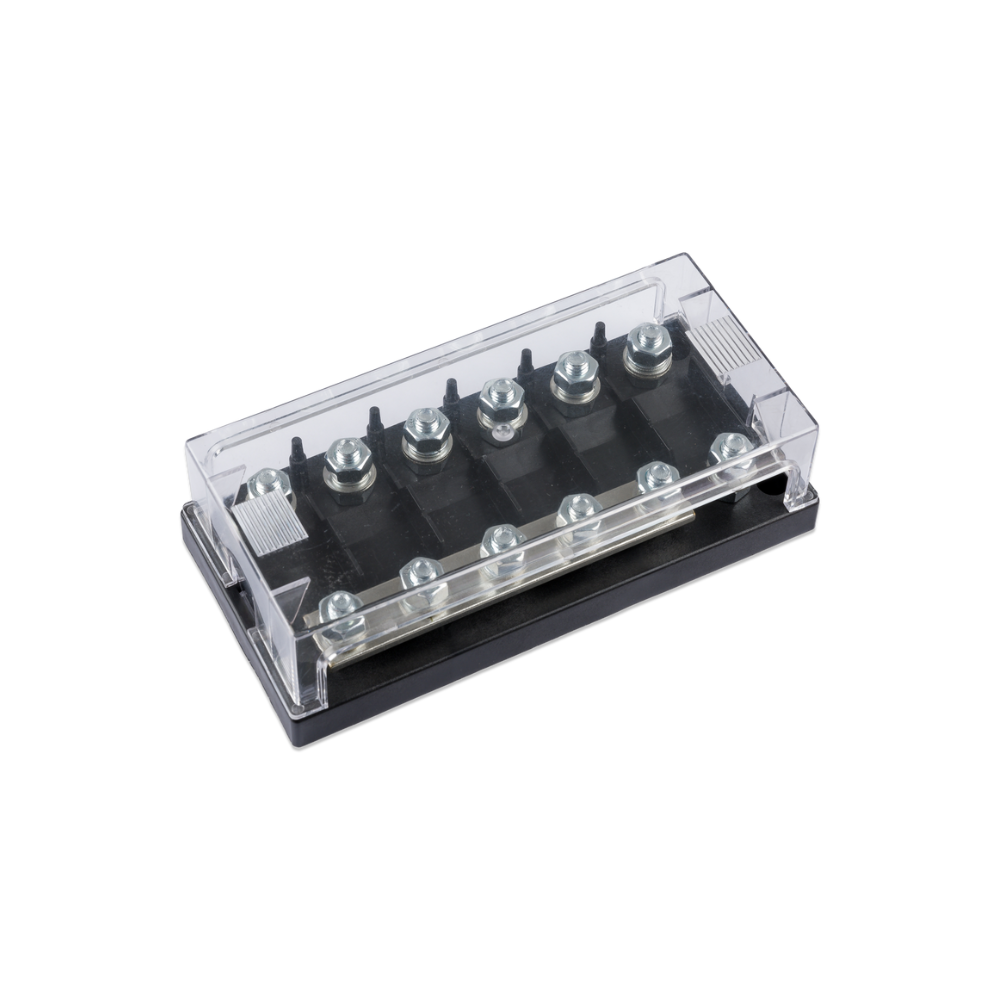

• Clear polycarbonate cover — visually inspect all fuses without opening the unit

• Tin-plated copper busbar — excellent conductivity, minimal resistance

• Galvanised steel terminals and nuts — solid, corrosion-resistant connections

• ABS base rated UL 94 V-0 (flame retardant)

• Max 250A / 70V DC — suits 12V, 24V and 48V systems

• Dimensions: 50.9×181.5×88mm (with cover), 0.45kg

Features:

This Victron six-way fuse holder is designed for high-current DC distribution in campervan, motorhome and off-grid installations. Six MEGA fuse slots share a common 250A tin-plated copper busbar, with galvanised steel terminal posts and nuts rated to the recommended torque of 7 N·m. The clear polycarbonate cover keeps connections safe while allowing a full visual check of all fuses without removing the cover. Fuses and mounting hardware are not included — MEGA fuses are sold separately in ratings from 40A to 500A. Download the datasheet below for full specifications and mounting dimensions.

Specifications

• Max current 250 A.

• Max voltage 70 VDC.

• Six-way MEGA fuse slots.

• Terminal diameter 8 mm (5/16 inch).

• Terminal height 14 mm.

• Terminal and hex nut material: Galvanised steel.

• Busbar strip material: Tin-plated copper (3 x 18 mm).

• Base: ABS, black, UL 94 V-0.

• Cover: Clear polycarbonate, UL 94 HB.

Downloads

Victron Six-Way MEGA Fuse Holder Datasheet

View full details

People are asking

What fuses does it take?

MEGA fuses — the large automotive blade fuses commonly used in high-current DC systems. MEGA fuses are available in ratings from 40A to 500A and are sold separately.

What’s the maximum current and voltage?

250A maximum continuous current across the 250A tin-plated copper busbar, and 70V DC maximum. Suitable for 12V, 24V and 48V systems.

Why use a six-way fuse block instead of individual fuses?

A fuse block consolidates all high-current circuit protection in one location, making it easier to inspect, replace fuses and trace faults. The clear polycarbonate cover lets you visually check all fuses at a glance without opening the unit.

Are fuses included?

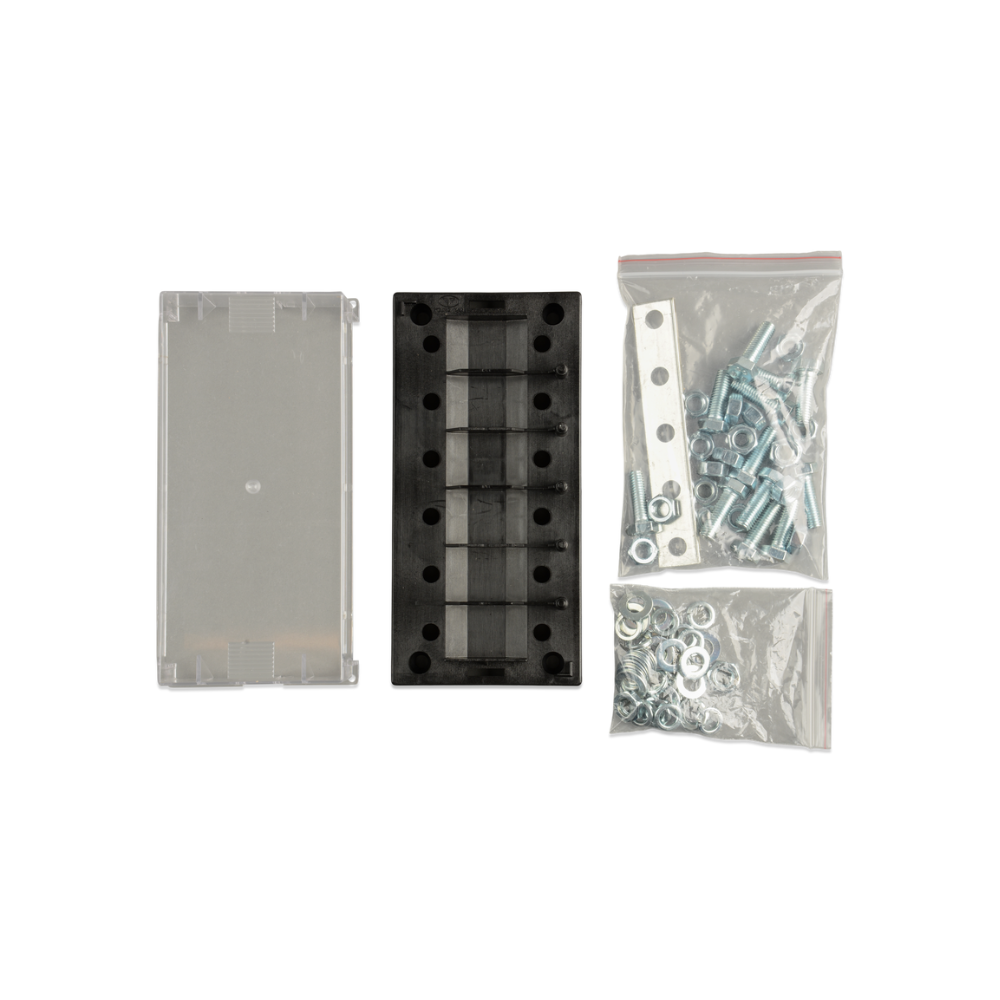

No — MEGA fuses are sold separately. The unit includes mounting hardware (bolts, washers and nuts) but no fuses.

What are the dimensions?

With cover: 50.9mm (H) × 181.5mm (W) × 88mm (D). Weight: 0.45kg.
