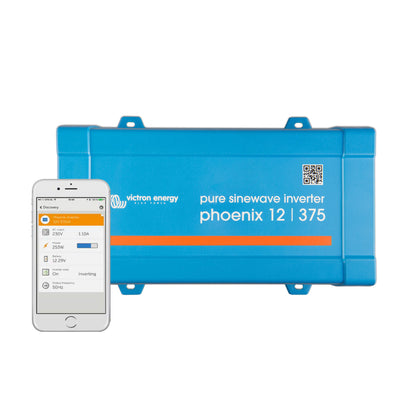

Victron Phoenix Inverter 12V /375 230V with VE.Direct

Victron Phoenix Inverter 12V /375 230V with VE.Direct

Victron Energy | SKU: EL056

Regular price $226.78
Regular price Sale price $226.78
Sale Sold out
GST included.

Looking for reliable clean power in your campervan conversion? This Victron Phoenix 12 V 375 VA pure sine inverter has you sorted. Built tough and compact, it delivers mains-quality 230 V AC from your 12 V battery. Ideal for small appliances, charging laptops or running LED lights on the move or off-grid.

Benefits:

• Powers sensitive gear with a smooth pure sine wave output.

• Small enough to fit in tight van build spaces for your campervan conversion.

• High start‑up capacity (700 W surge) for tools or motors.

• Energy‑saving ECO mode cuts idle draw to under 1 W.

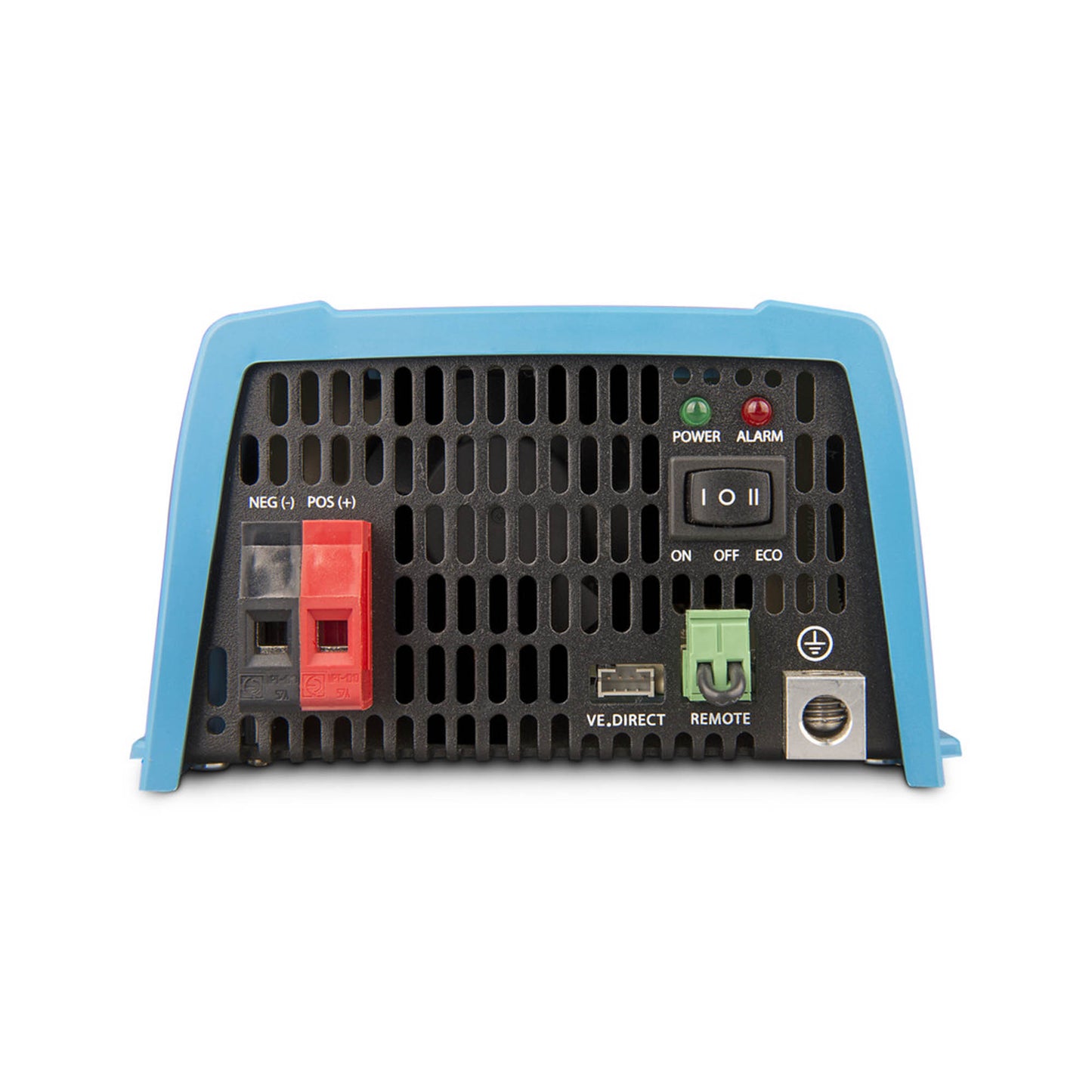

• Fully configurable via VictronConnect using VE.Direct port.

Features:

This Victron Phoenix inverter works brilliantly in an off‑grid campervan conversion. It turns 12 V battery power into steady 230 V AC, quietly and efficiently. The VE.Direct communication port lets you use VictronConnect (via USB or optional Bluetooth dongle) to monitor load, voltage and alarms and adjust settings like low‑voltage shut‑off, output voltage, frequency and ECO threshold. ECO mode reduces battery draw when loads drop below threshold. With peak power bursts of up to 700 W, it can boot motors or LED‑drivers easily. Built on Victron’s full‑bridge toroidal transformer design it handles overloads and overheating. Lightweight at around 3 kg, it slots neatly into compact van interiors. Use it on sunny drives or off‑grid nights to run laptops, lights, grinders or small appliances with confidence.

Specifications


• Continuous output 300 W at 25 °C, 260 W at 40 °C.

• Peak output 700 W.

• Input voltage range 9.2–17 V DC.

• Maximum efficiency approx 89 %.

• Zero‑load power ~5.6 W, in ECO mode ~0.9 W.

• Integrated ECO mode standby.

• AC outlet: AU/NZ AS/NZS 3112 socket at 230 V 50 Hz.

• Operating temp −40 °C to +65 °C (fan assisted).

• Protection: short‑circuit, overload, overtemp, over/under voltage.

• Dimensions ~86 × 165 × 260 mm, weight ~3 kg.

Downloads

Datasheet
